Product Specifications

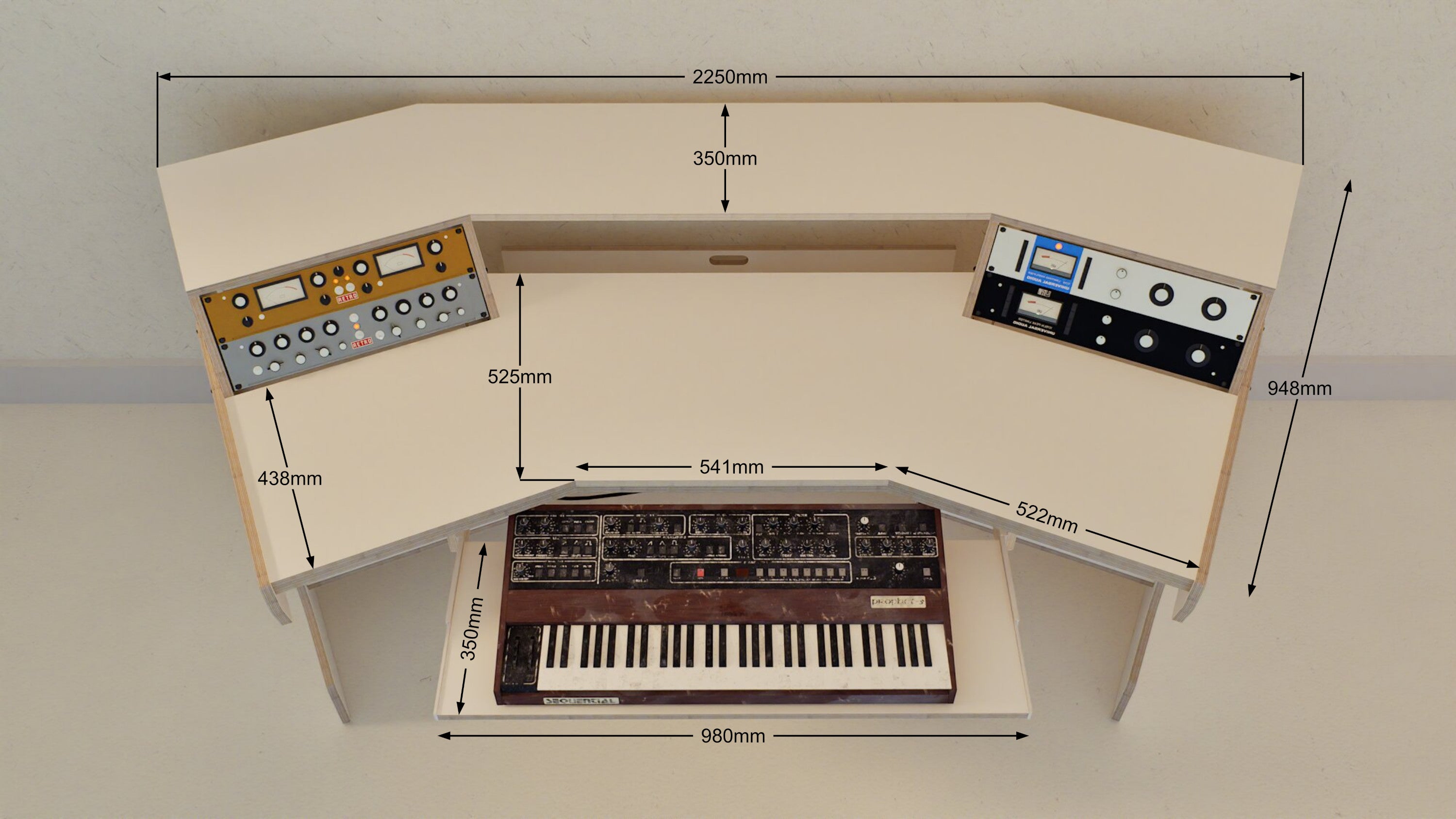

- Desk Footprint Dimensions: Width 2250 x Depth 948mm.

- Worktop Dimensions: Width 1585 x Depth 438mm.
Elevation/height: 797mm.

- Speaker platform (rack bay top panel)
Dimensions: Width 522 x Depth 382mm.
Elevation/height: 965mm.

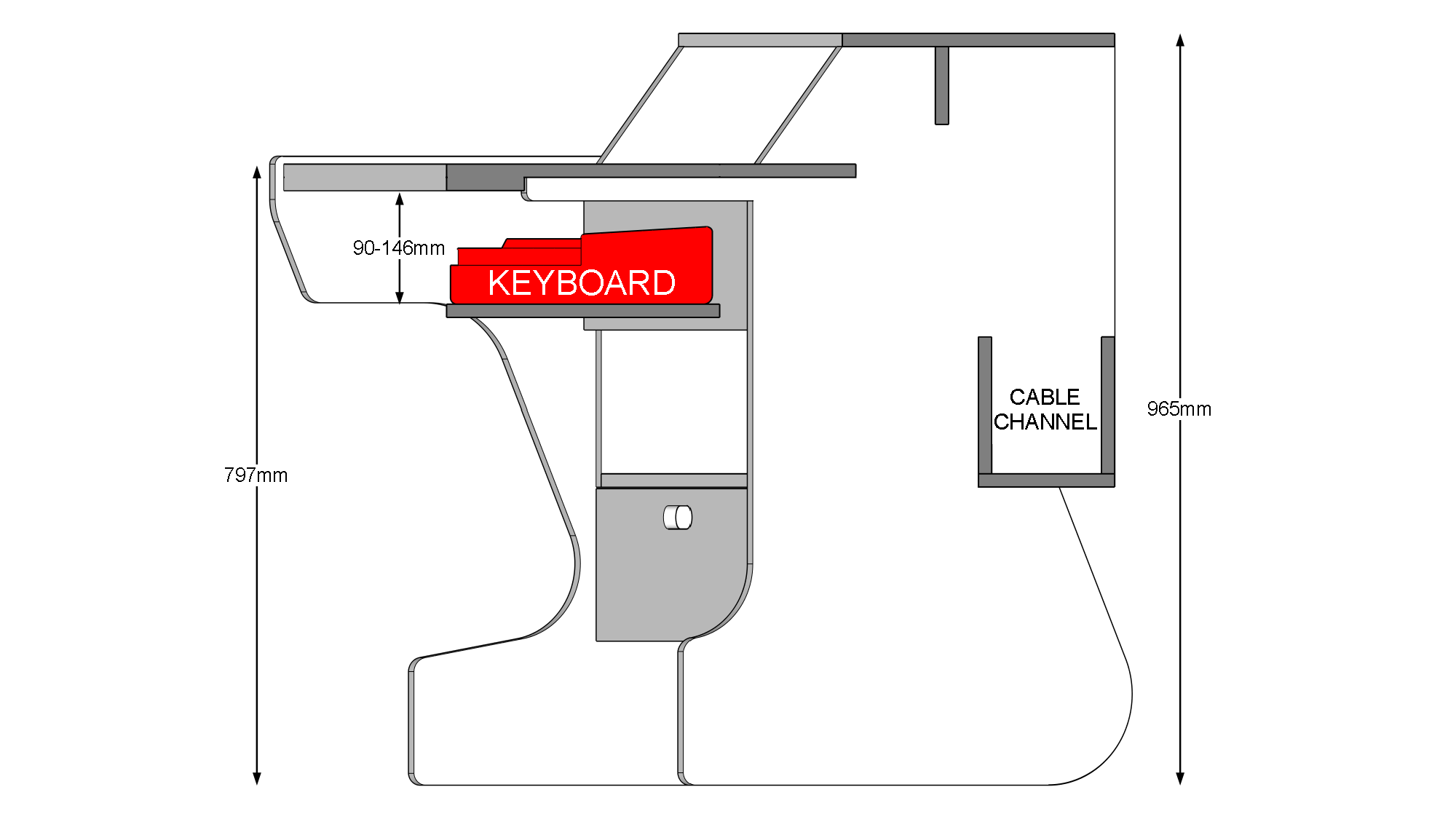

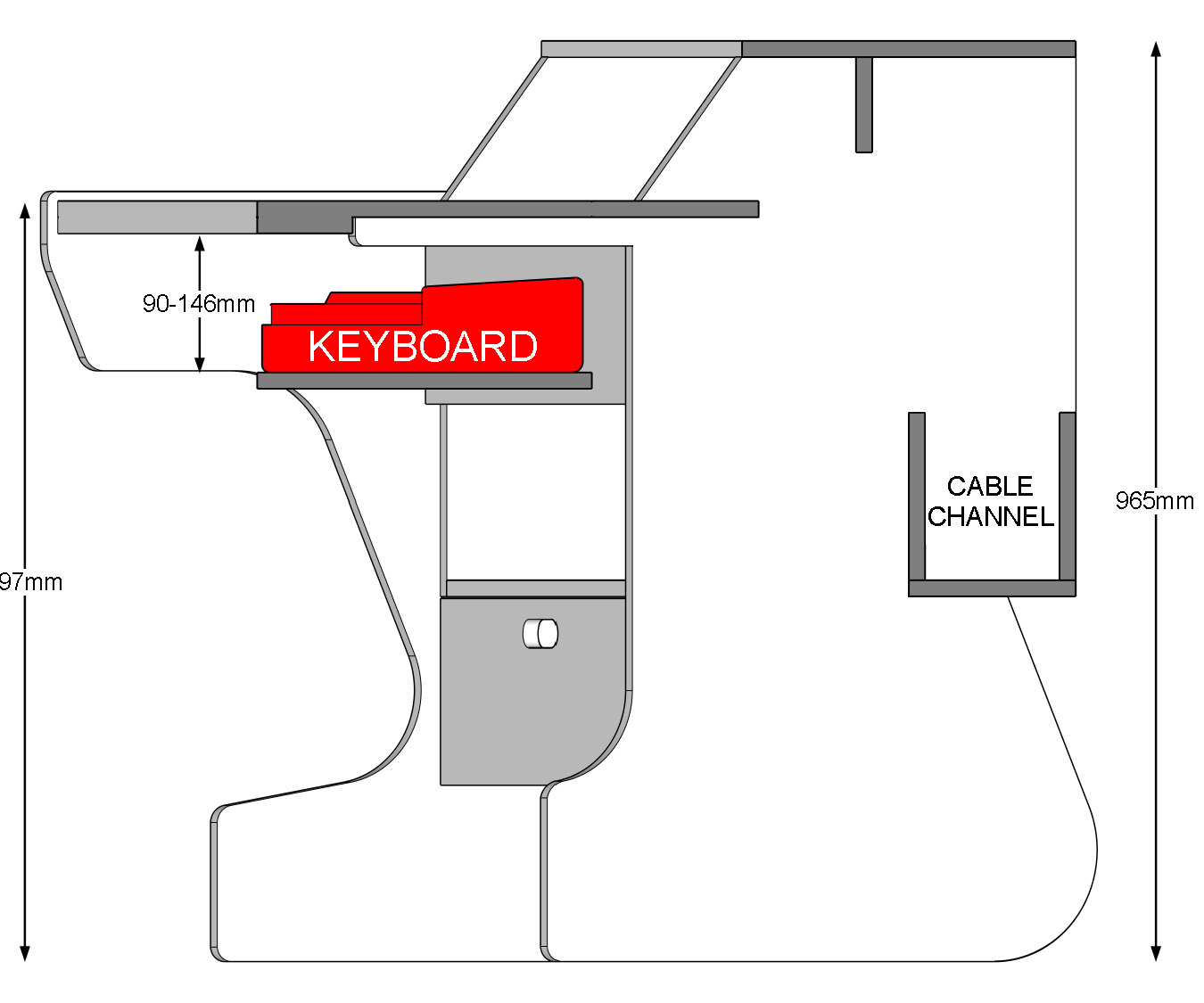

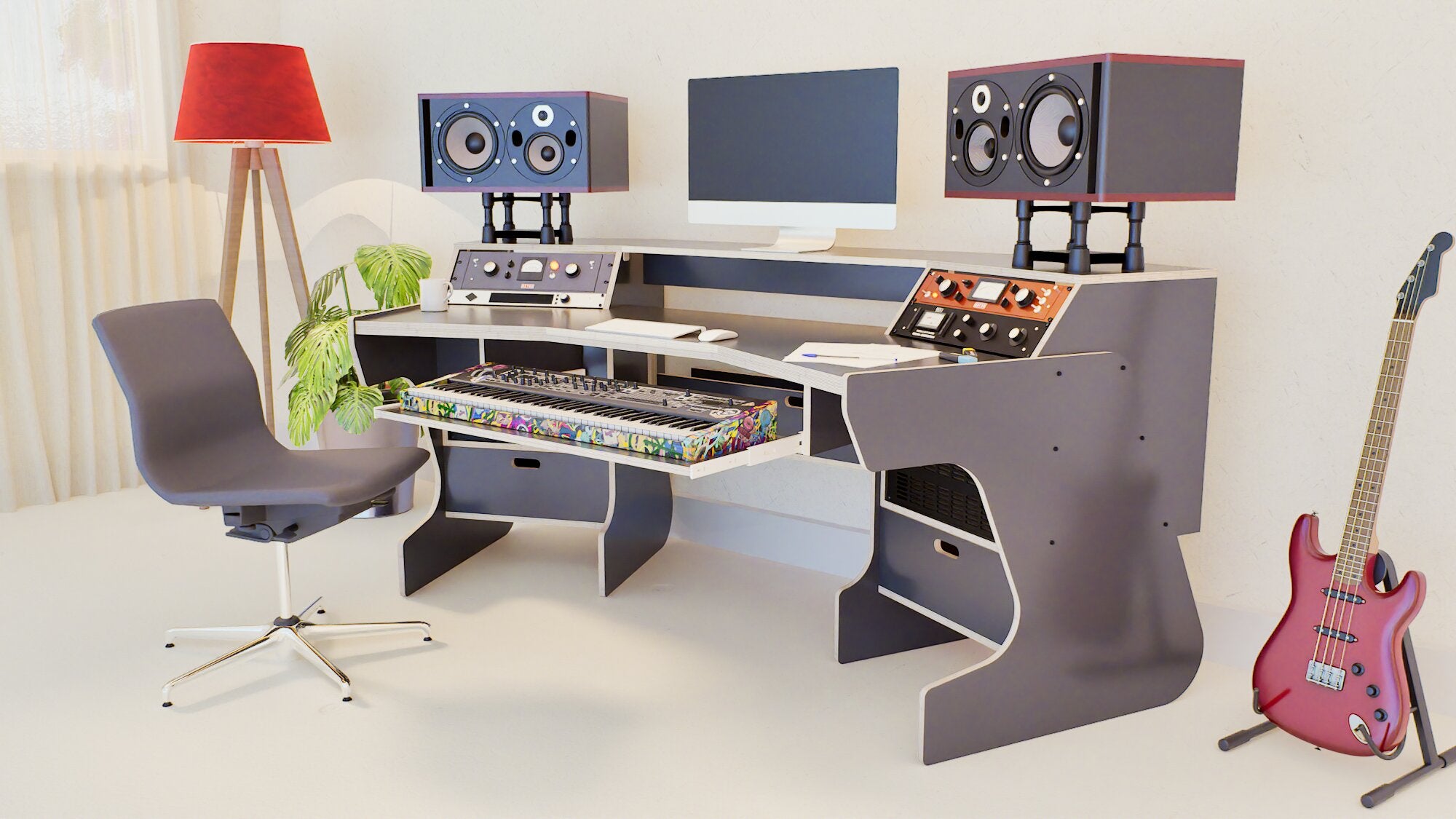

- Sliding keyboard tray
Dimensions: Width 980 x Depth 350mm.
Height adjustable from 90-146mm clearance to the desktop.

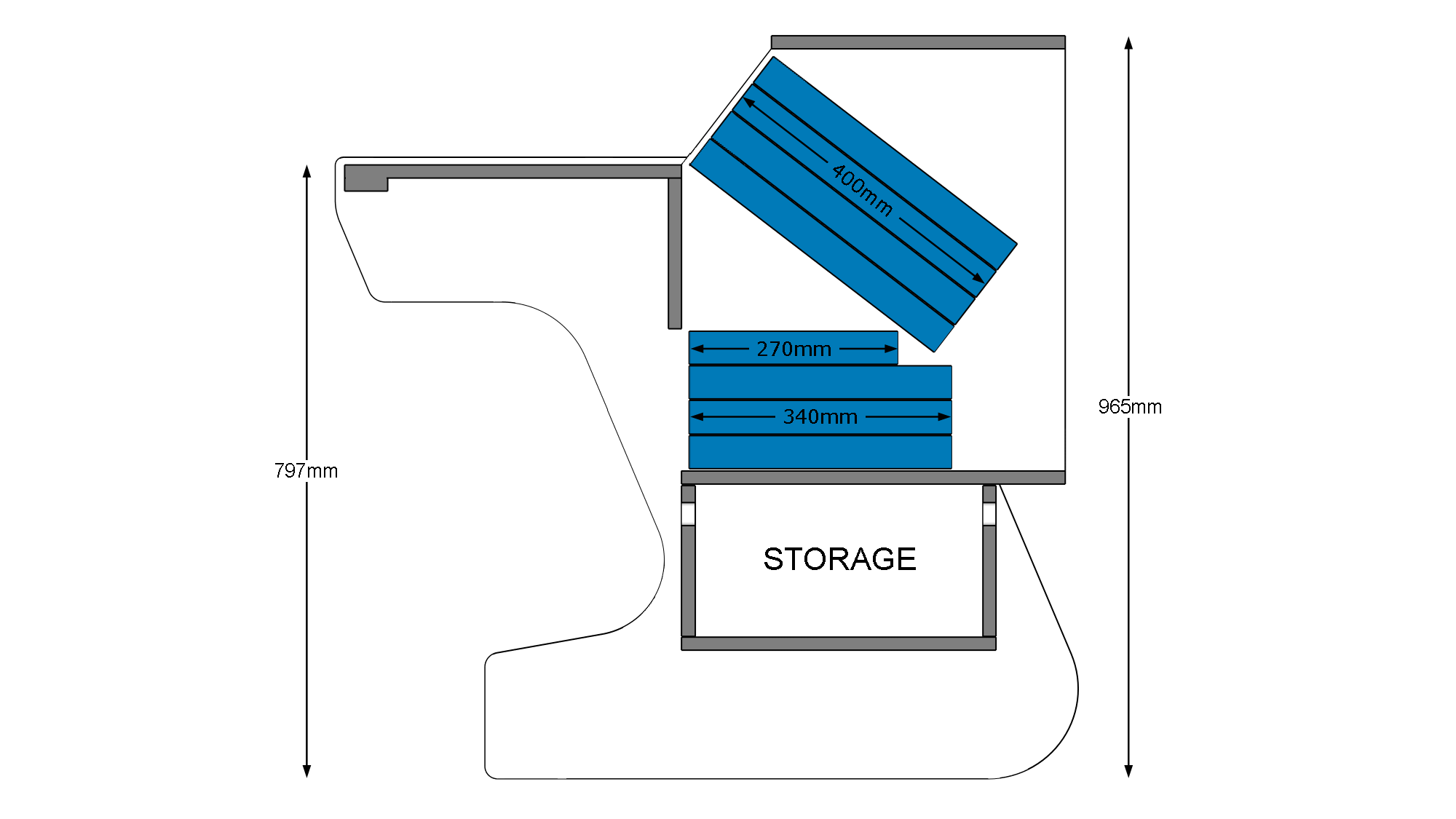

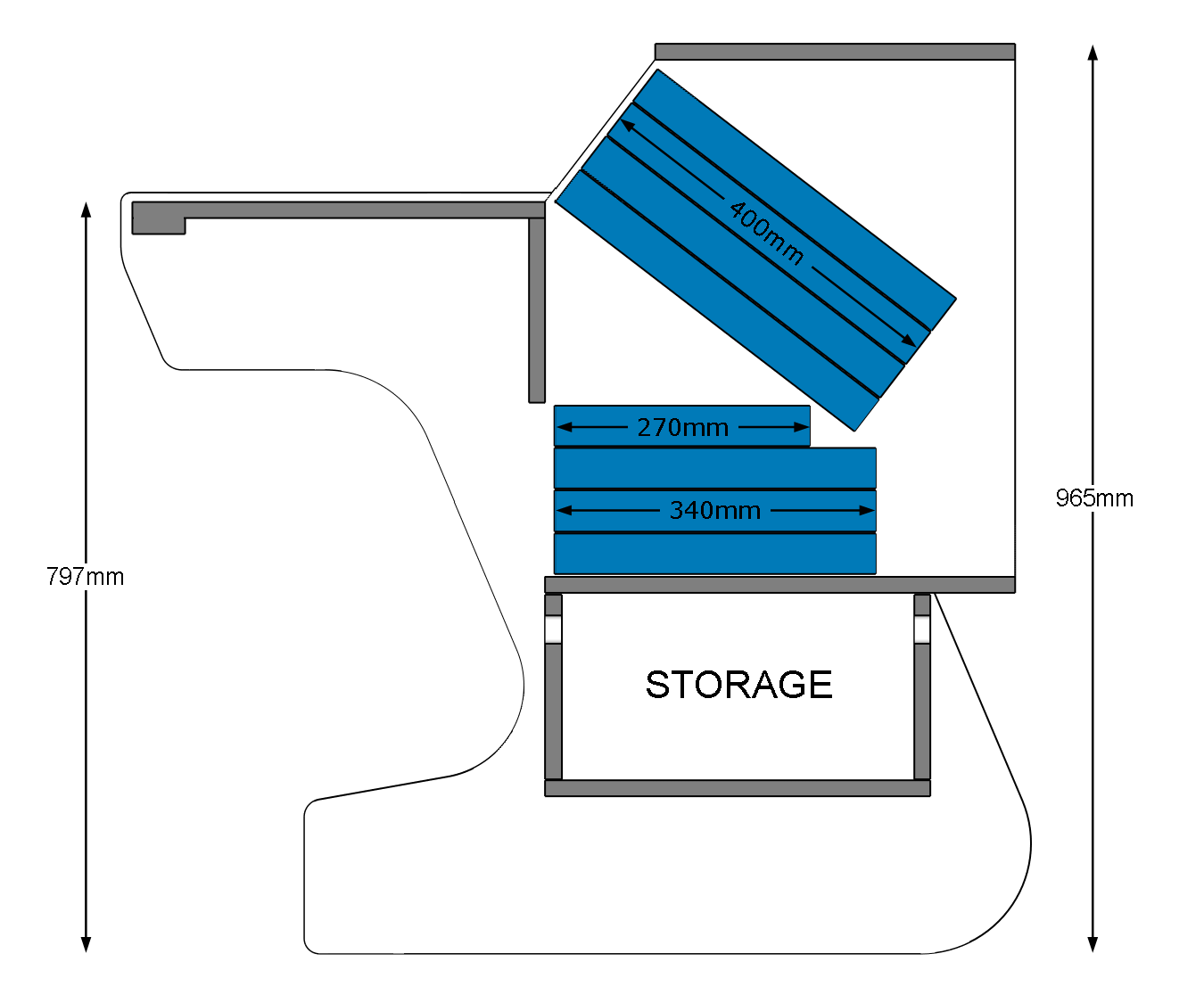

- Angled left and right rack bays (23.6 degrees from sitting position).

- 4 angled rack units per bay above the desktop (37.5 degrees from vertical).

- 4 rack units per side below the desktop (vertical).

- 16 rack units total.

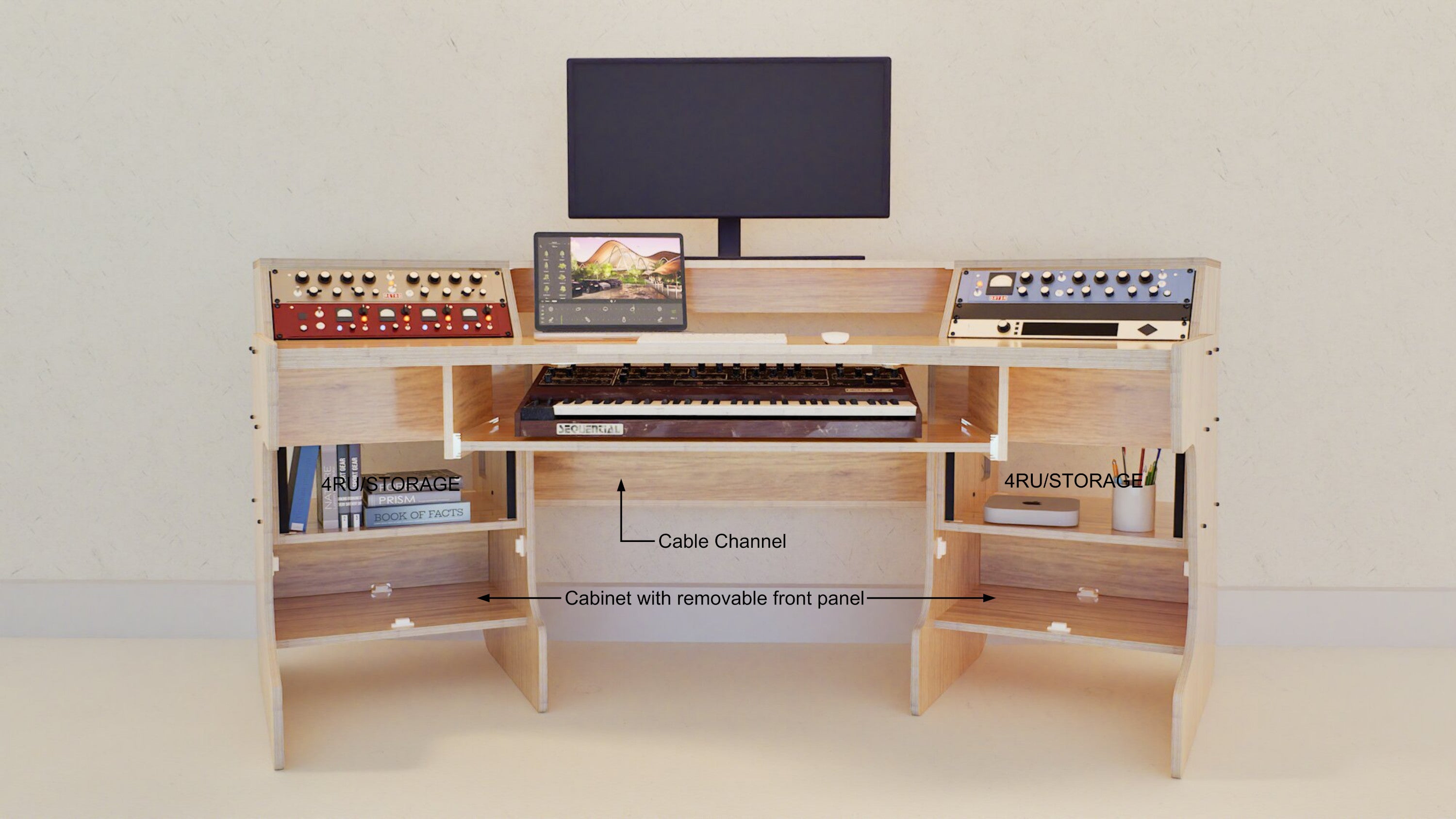

- Lower storage cabinet in each rack bay with removable magnetic front and rear panels
Cabinet internal dimensions: Width 488mm x Height 184mm x Deep 498 mm

- Height adjustable central computer display shelf.
Positions: Worktop +0mm (flush), +52mm, +110mm, +167mm (maximum and flush with speaker platforms).

- Central cable channel at the rear runs between both racks for easy cable management.
Cable channel internal dimensions: Width 1100 x Depth 141 x Height 175mm.

What's Included

- 4RU rack rails tapped for M6 bolts to font and rear of racks

- 20x M6 bolts for rack equipment and lacing bars

- A4 printed assembly manual

- Electronic PDF assembly manual

What's Not Included

- A/V and 19" outboard rack equipment, other electronics, signal connection plates, power and cabling

- Speaker stands and vented rack plates

Shipping & Collection Options

- Flat-packed in cartons for on-site user assembly

- Factory assembled and delivered as a completed unit

- Collect assembled or partially assembled from our workshop:
392 Victoria Street, Brunswick 3058, VIC
