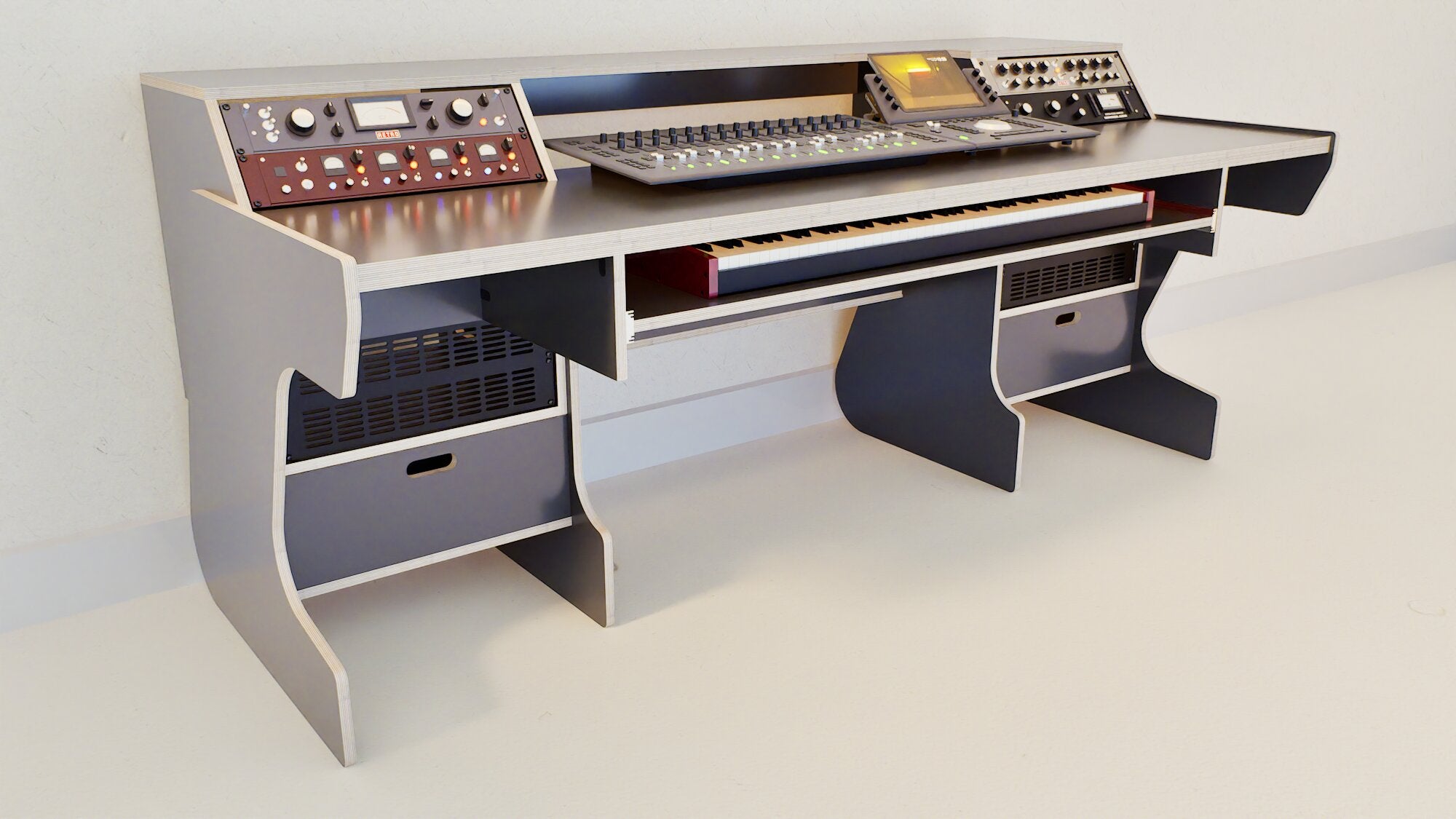

Middle Eight 2BT - Studio Desk for Consoles and Keyboards

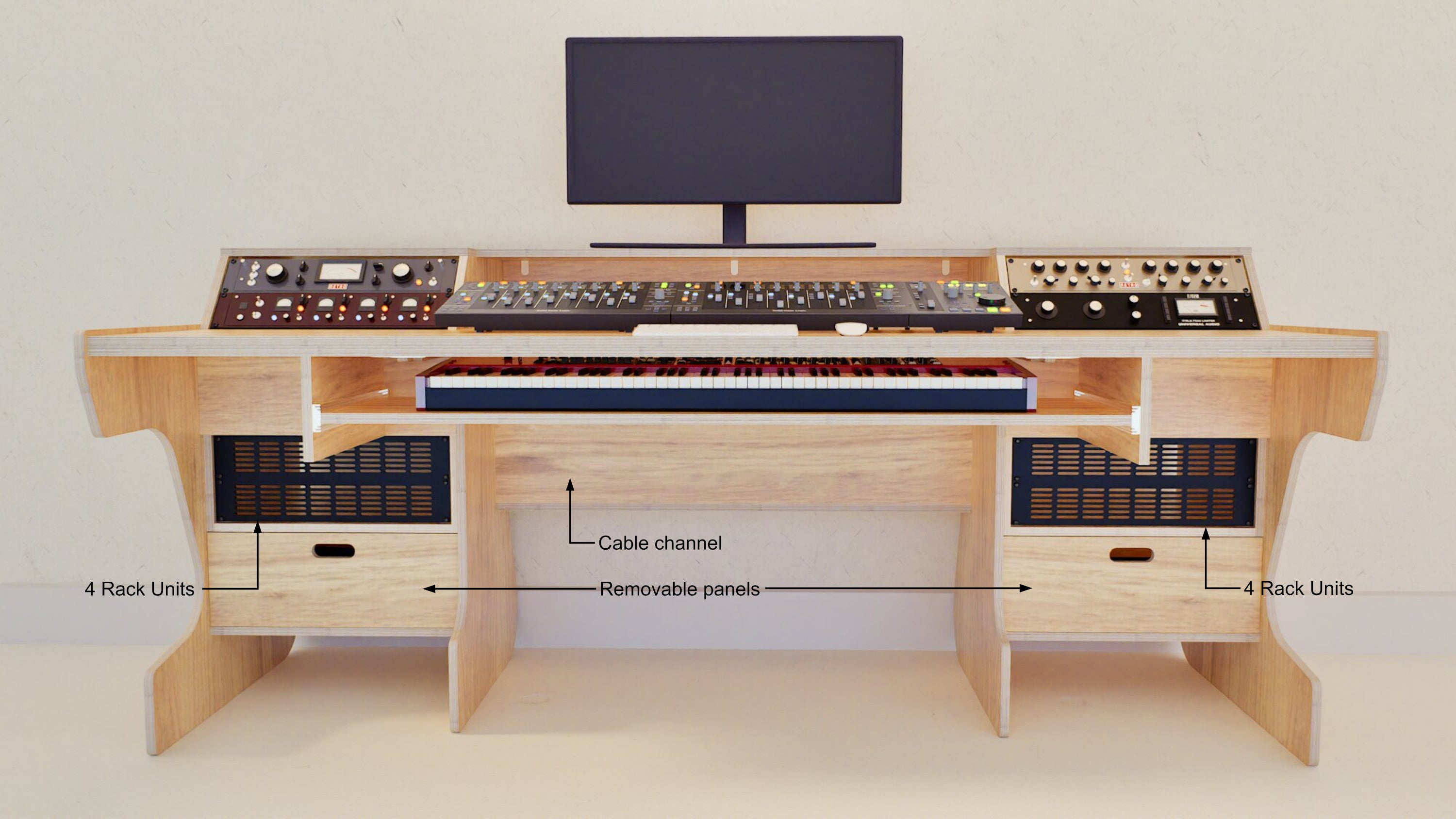

Features
Two bays of four rack units with a sliding keyboard tray, raised speaker platforms and a huge worktop area suited to modular DAW control surfaces and small audio mixing consoles.
Adjustability

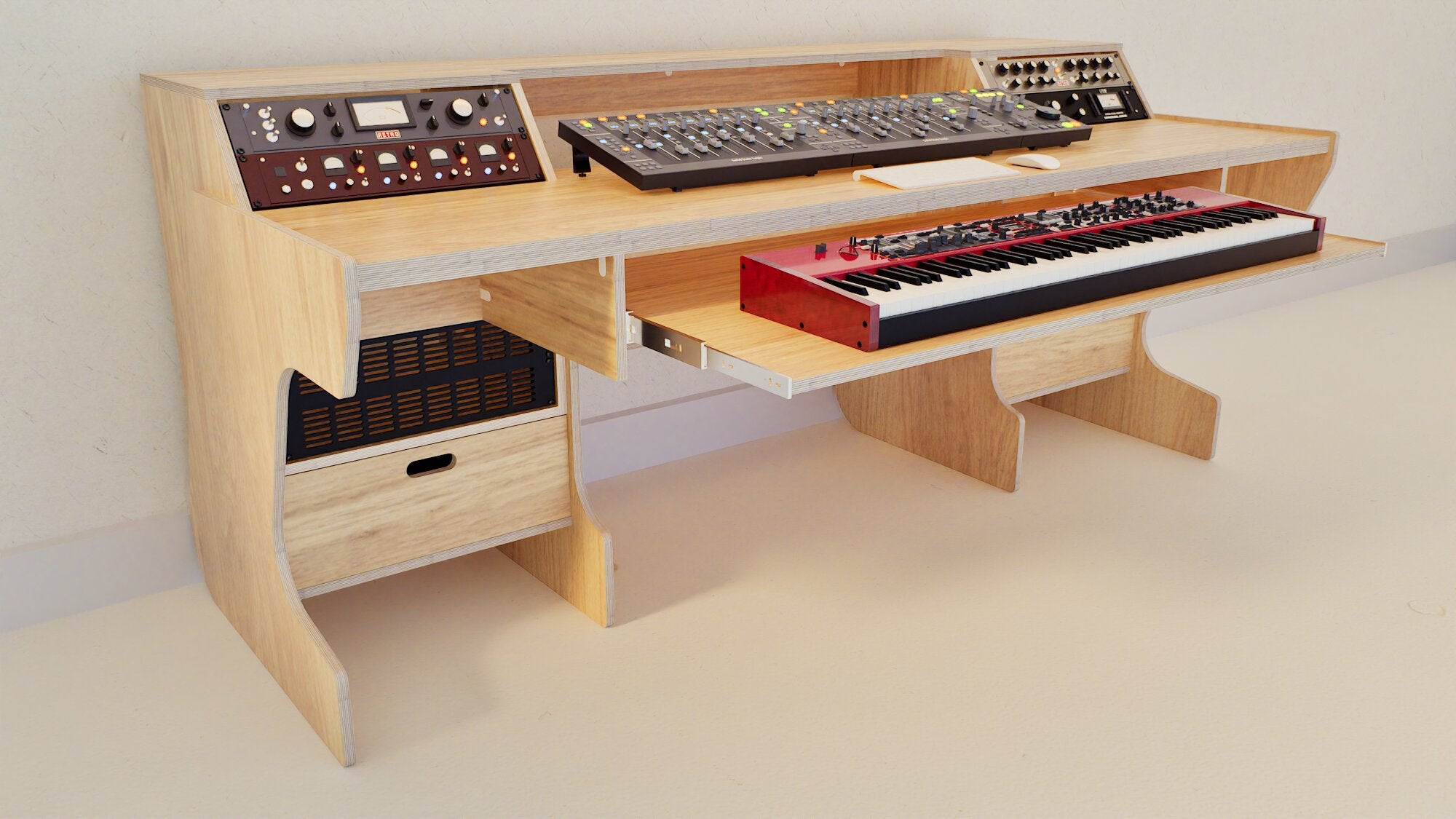

Middle Eight 2BT gives you a height adjustable, steel reinforced slide out keyboard tray suited to larger, 76 and 88 weighted note MIDI keyboard instruments and synthesizers. The keyboard tray's width is customizable upon order in the 800-1540mm range.
The central computer display shelf is also height adjustable and may be set completely flush with the rest of the worktop if required.
Storage
The lower body of each rack bay consists of space for a further four rack units. If not required, use the area as a storage shelf. Lower still, you'll find a cabinet with front and rear magnetic pull-off panels.
Cable Management
Is achieved by the provided large cable channel located at the rear of the central work area, just behind the keyboard tray. Each end of the cable channel feeds into the left and right rack bays. Cabling through holes allow for cable routing between every nook of the desk.

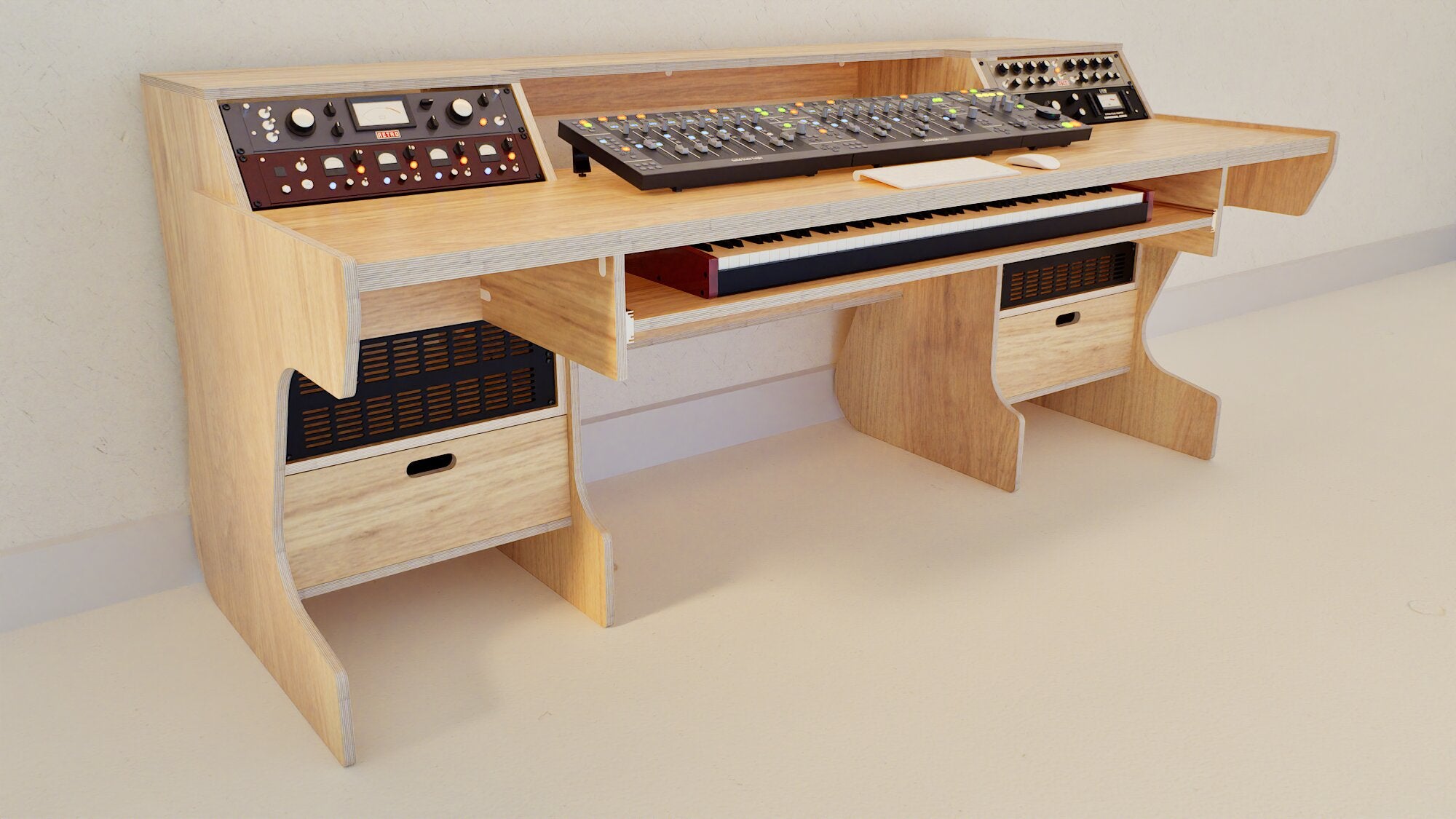

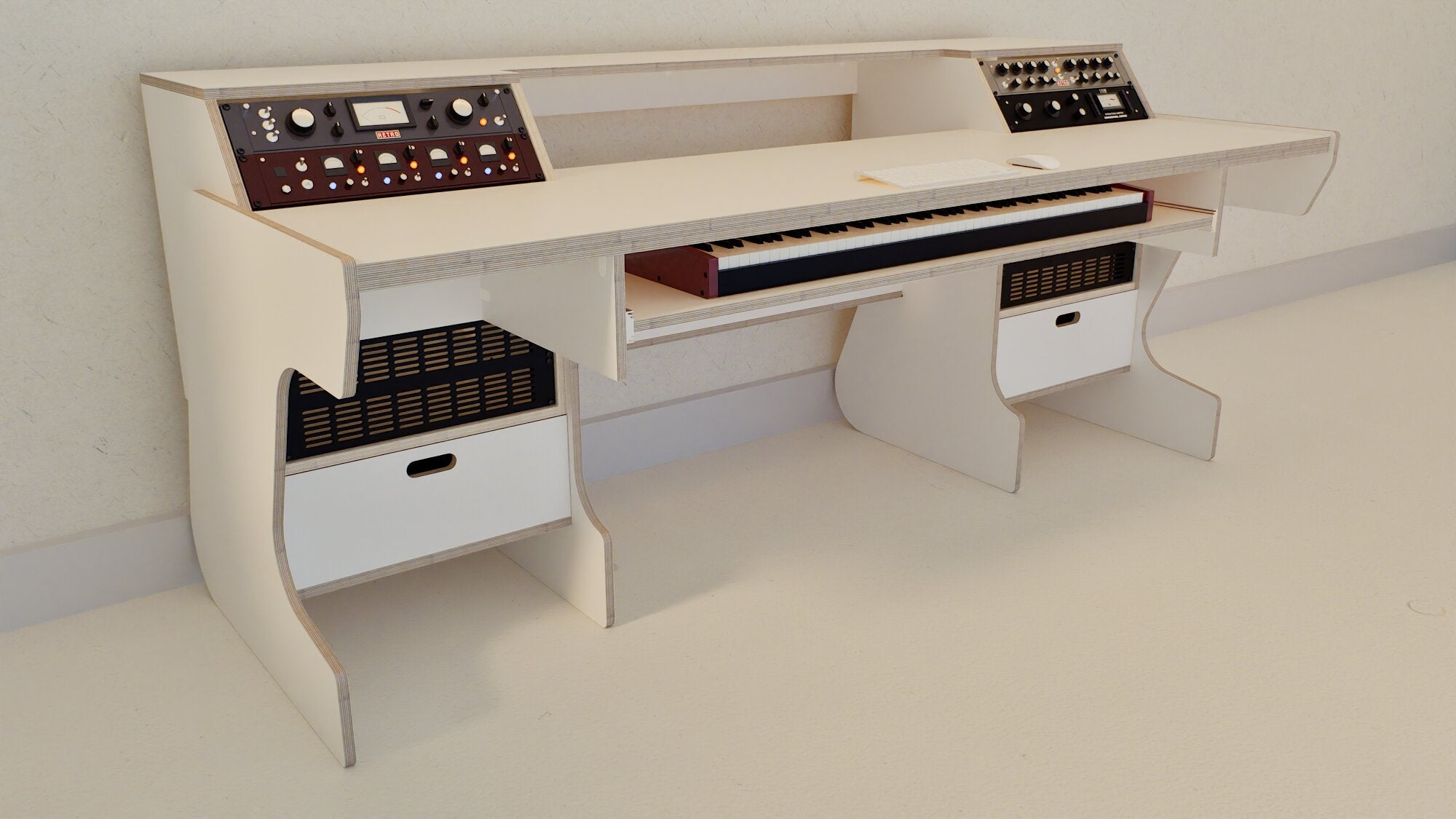

Available in black, white and natural grain finishes.
Product Specifications
- Desk Footprint Dimensions: Width 2179 x Depth 948mm.
- Worktop elevation/height: 797mm.
- Speaker platforms (rack bay top panel)
Dimensions: Width 522 x Depth 382mm.
Elevation/height: 965mm.
- Customizable width, steel reinforced sliding keyboard tray.
Dimensions: Width 1360 (Default) x Depth 350mm.
Width may be specified in the range 800-1540mm.
Height adjustable from 90-146mm clearance to the desktop.
- 4 angled rack units per side above the desktop (32.5 degrees from vertical).
- 4 rack units per side below the desktop (vertical).
- 16 rack units total.
- Lower storage cabinet in each rack with removable magnetic front and rear panels.
Cabinet internal dimensions: Width 488mm x Height 184mm x Deep 498 mm.
- Height adjustable central computer display shelf.
Positions: Worktop +0mm (flush), +52mm, +110mm, +167mm (maximum and flush with speaker platforms).
- Central cable channel at the rear runs between both racks for easy cable management.
Cable channel internal dimensions: Width 1100 x Depth 184 x Height 250mm.
Customization Info
- The sliding keyboard tray width is specified upon order: 800 - 1540mm (maximum).
- 1360mm is default keyboard tray width.
- The sliding keyboard tray default depth of 350mm can be extended to 400mm maximum but incurs an additional charge of $50 ex GST because we must custom cut a cardboard carton specifically for this piece. Complete checkout stating this requirement in the notes section and we will invoice you separately for the modification.
What's Included
- 4RU rack rail to font of main and lower cabinet racks
What's Not Included
- A/V and 19" outboard rack equipment, other electronics, signal connection plates, power and cabling
- Speaker stands and vented rack plates
Shipping & Collection Options
- Flat-packed in cartons for on-site user assembly
- Factory assembled and delivered as a completed unit
- Collect assembled or partially assembled from our workshop:
392 Victoria Street, Brunswick 3058, VIC

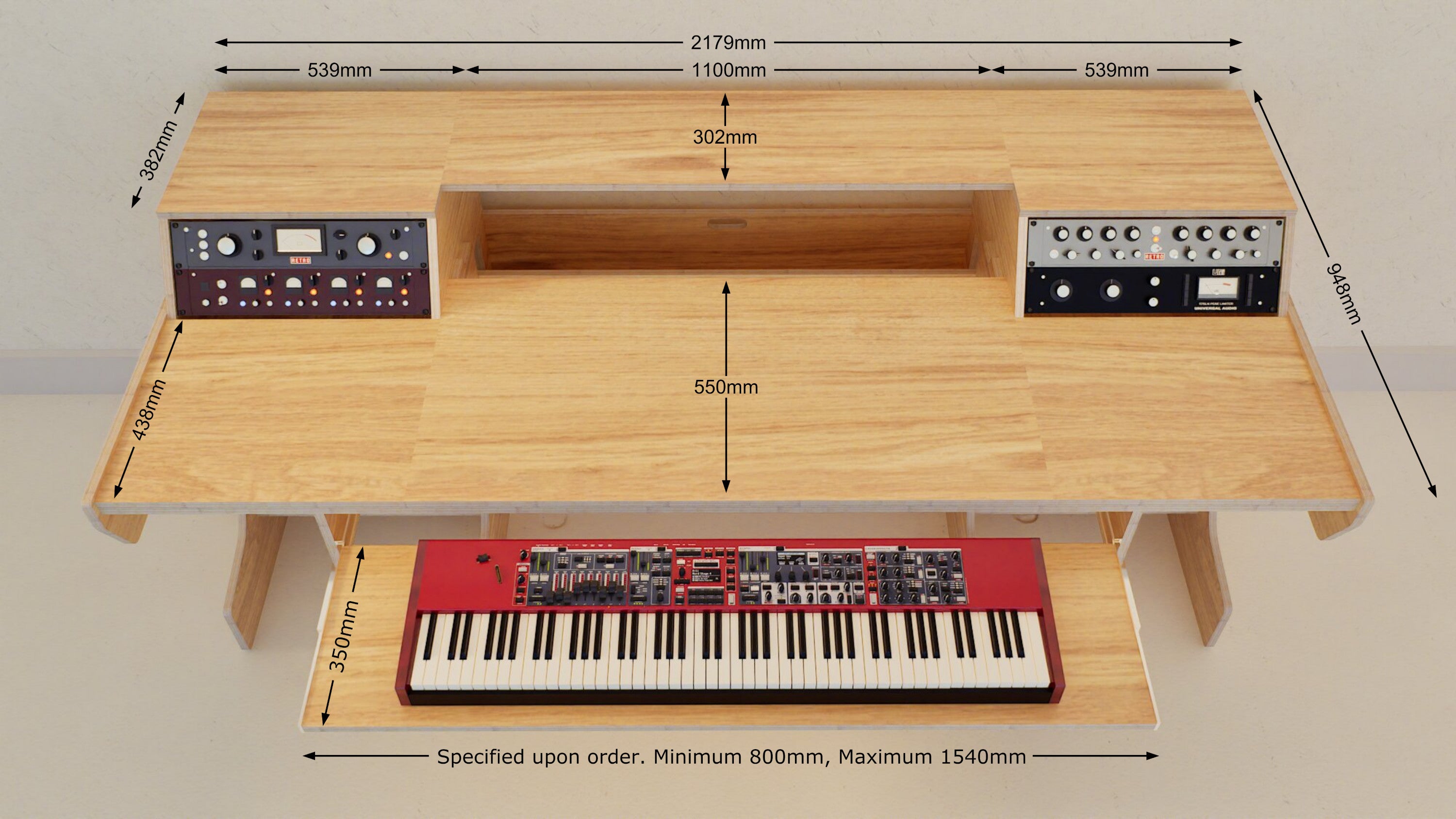

Product Dimensions

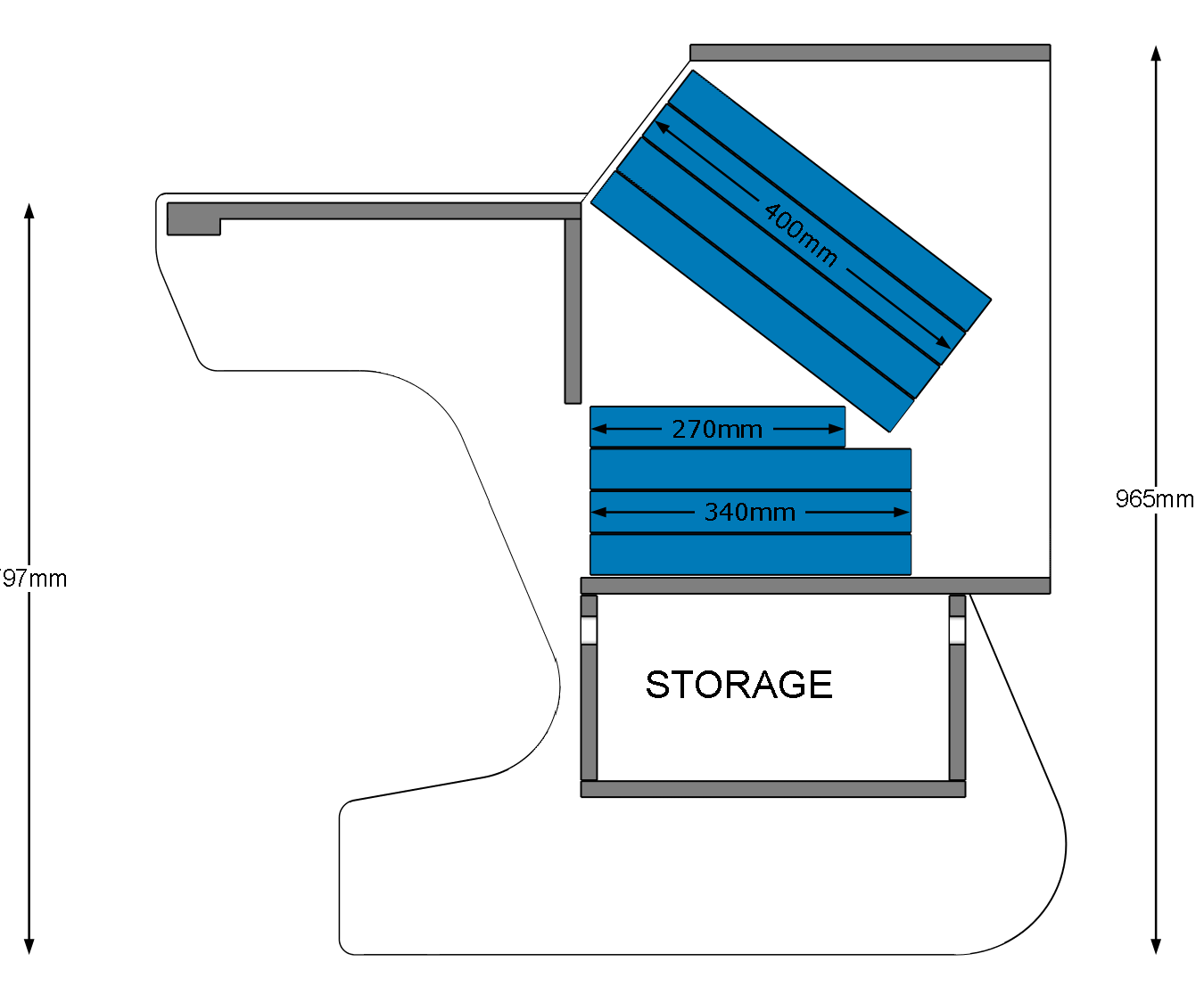

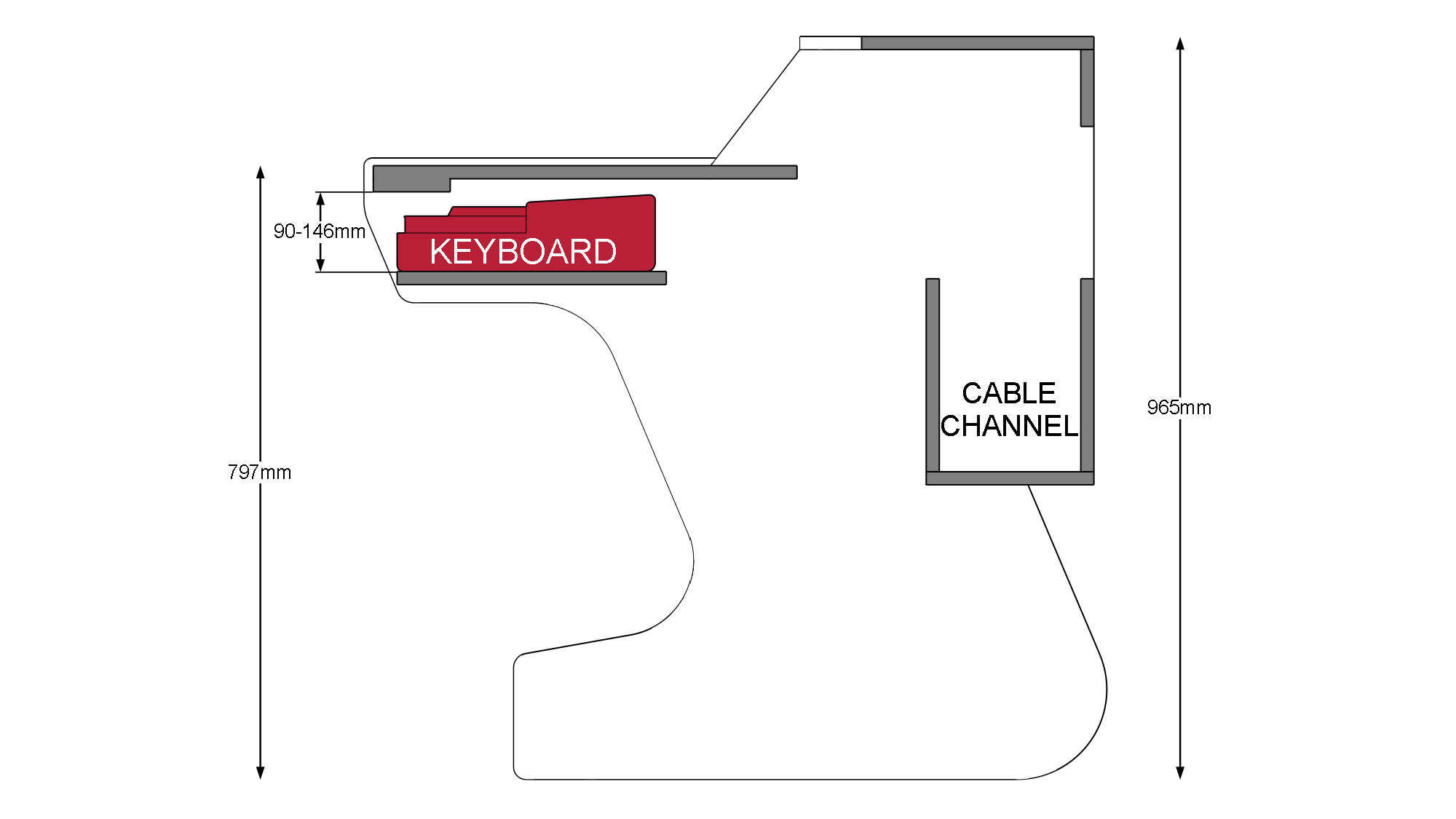

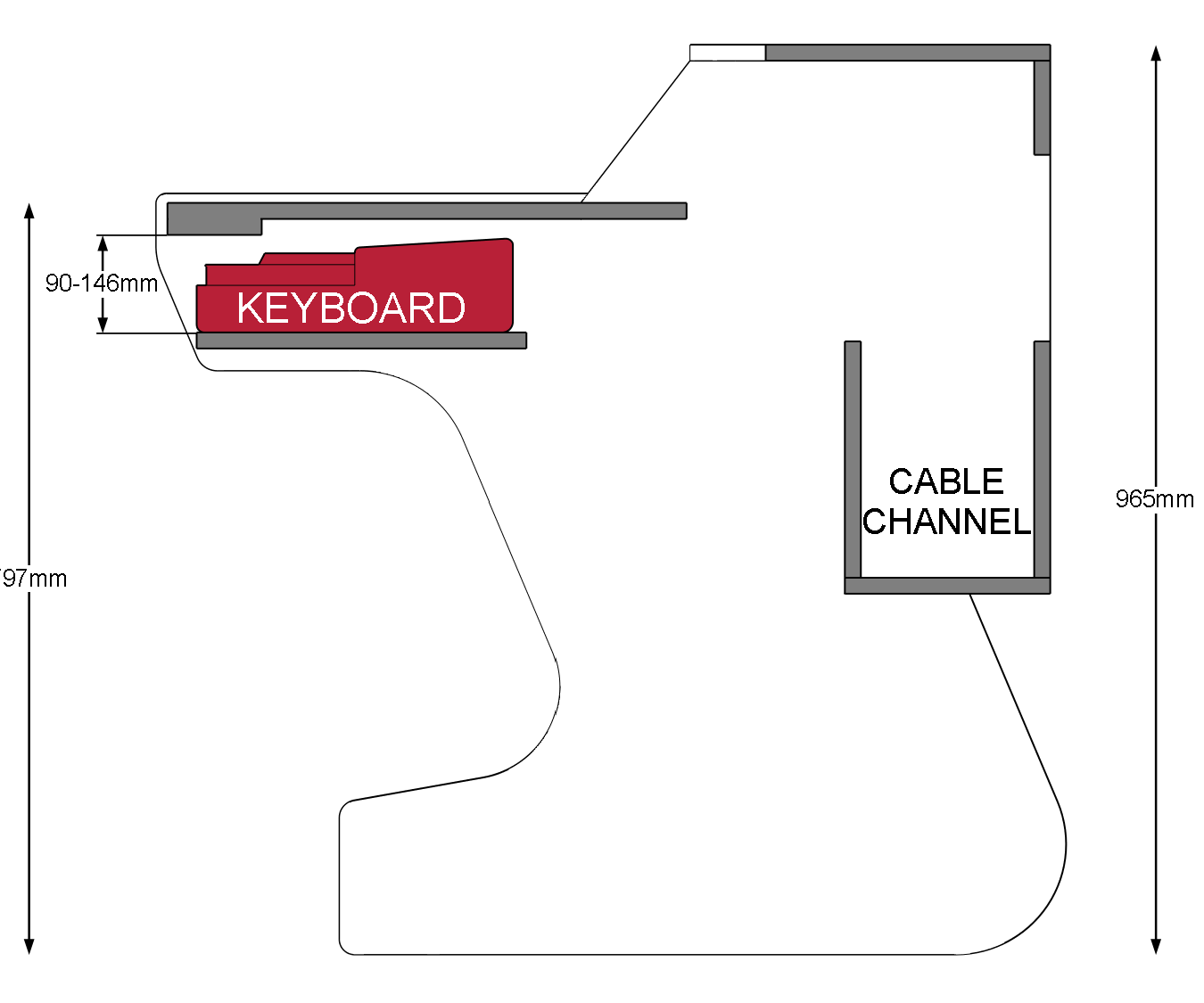

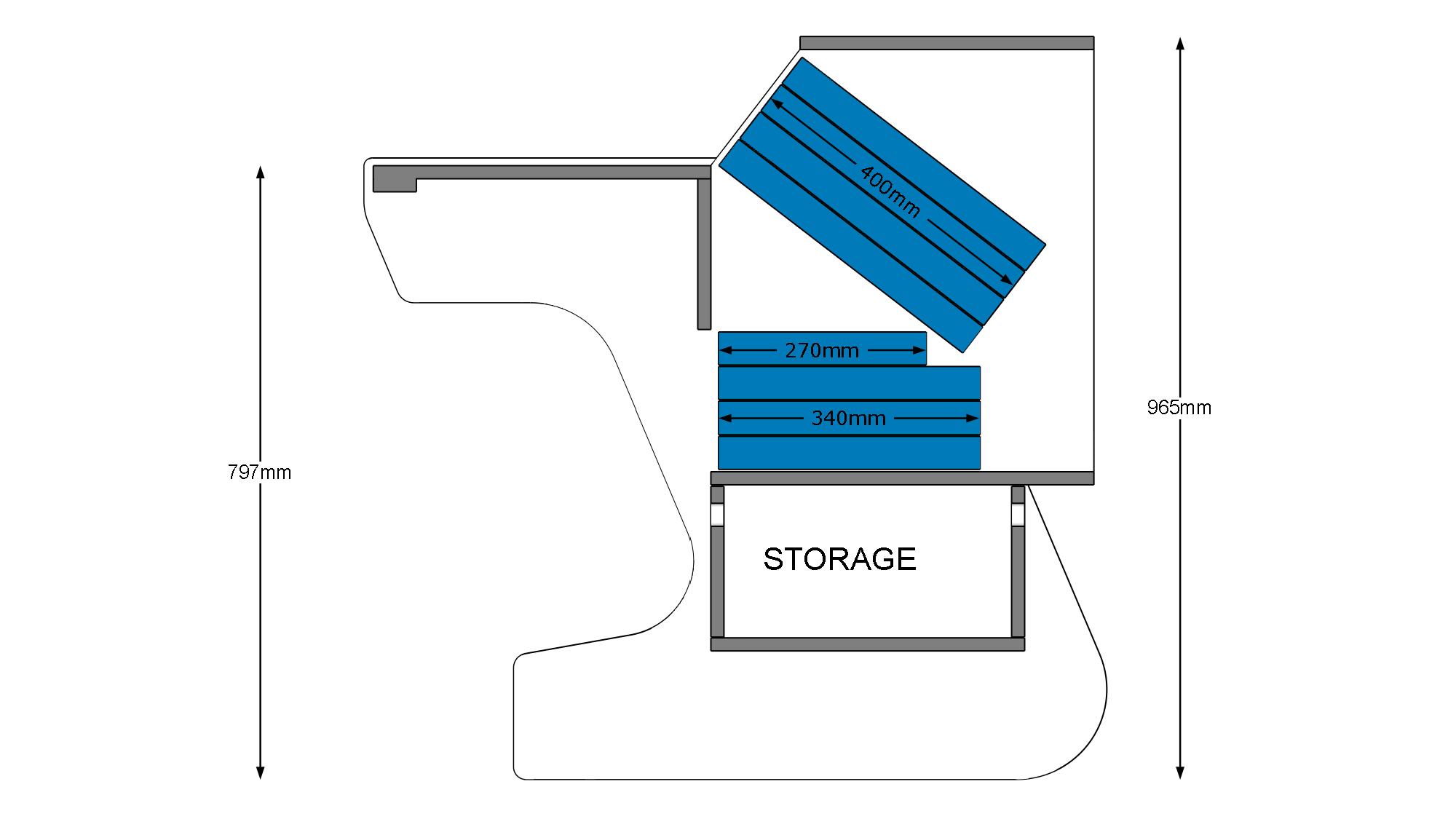

Section Drawings
