Product Specifications

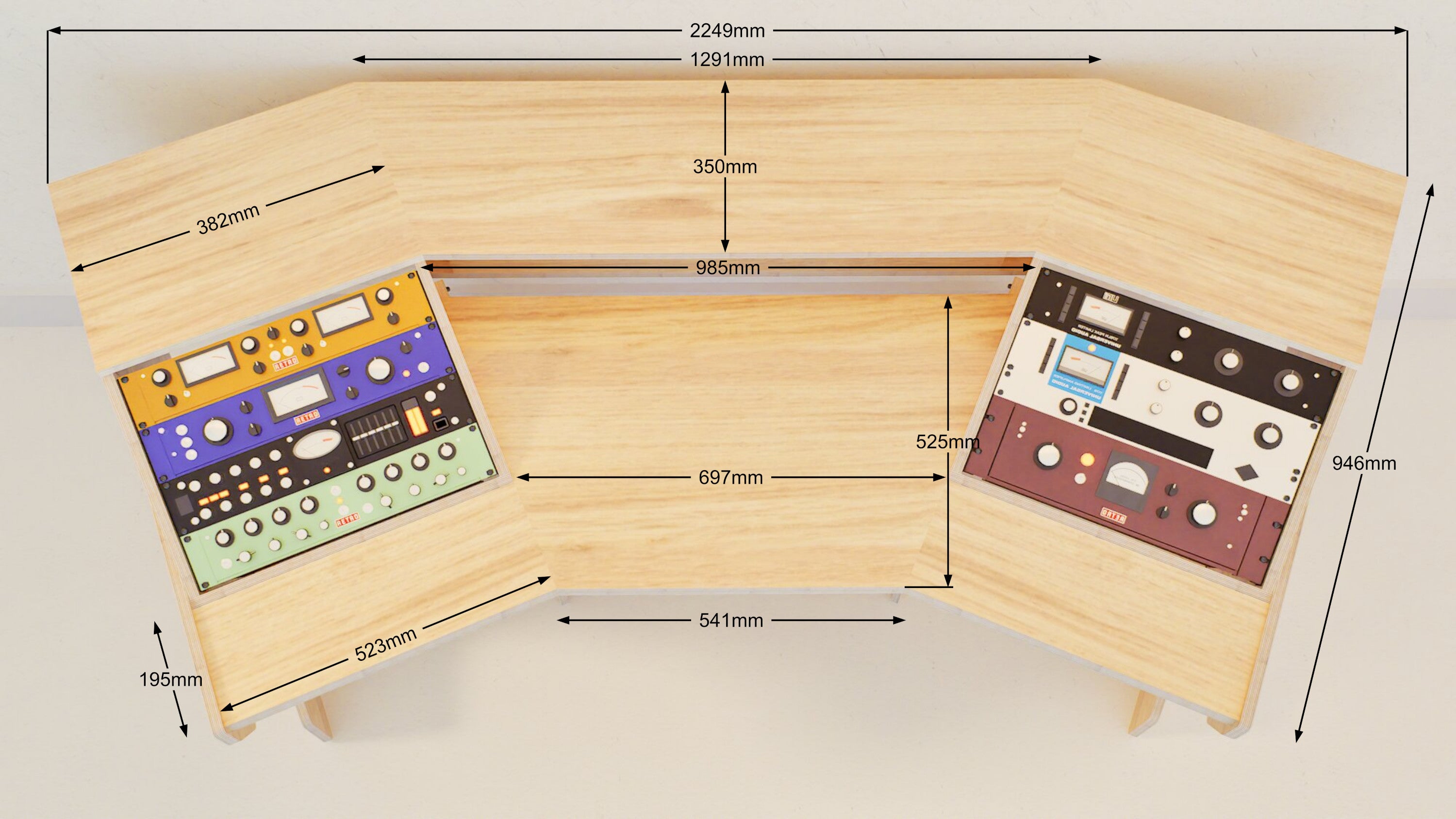

- Desk Footprint Dimensions: Width 2249 x Depth 946mm.

- Worktop Dimensions: Width 1585 x Depth 438mm.
Elevation/height: 734mm.

- Speaker platform (rack bay top panel)
Dimensions: Width 522 x Depth 382mm.
Elevation/height: 896mm.

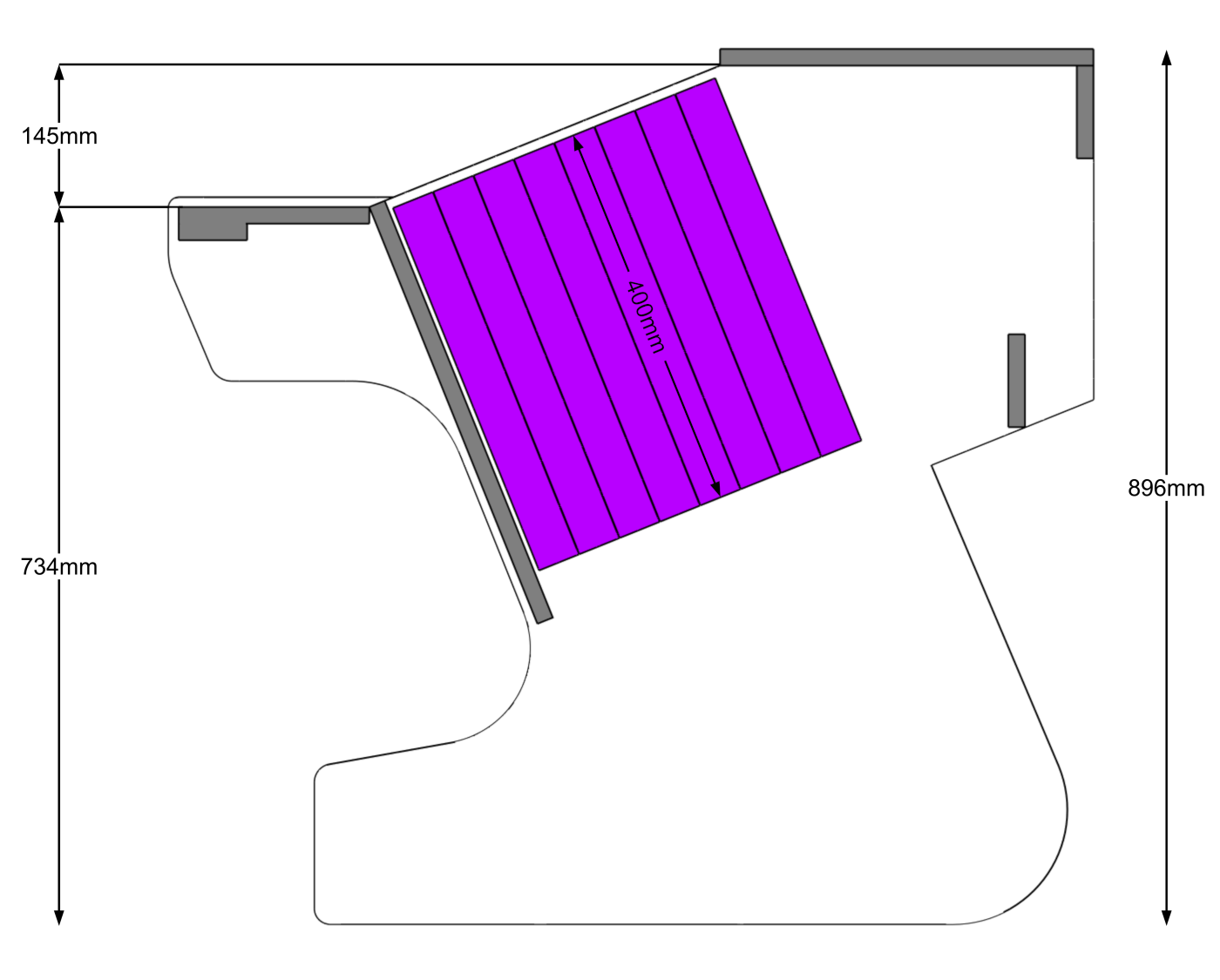

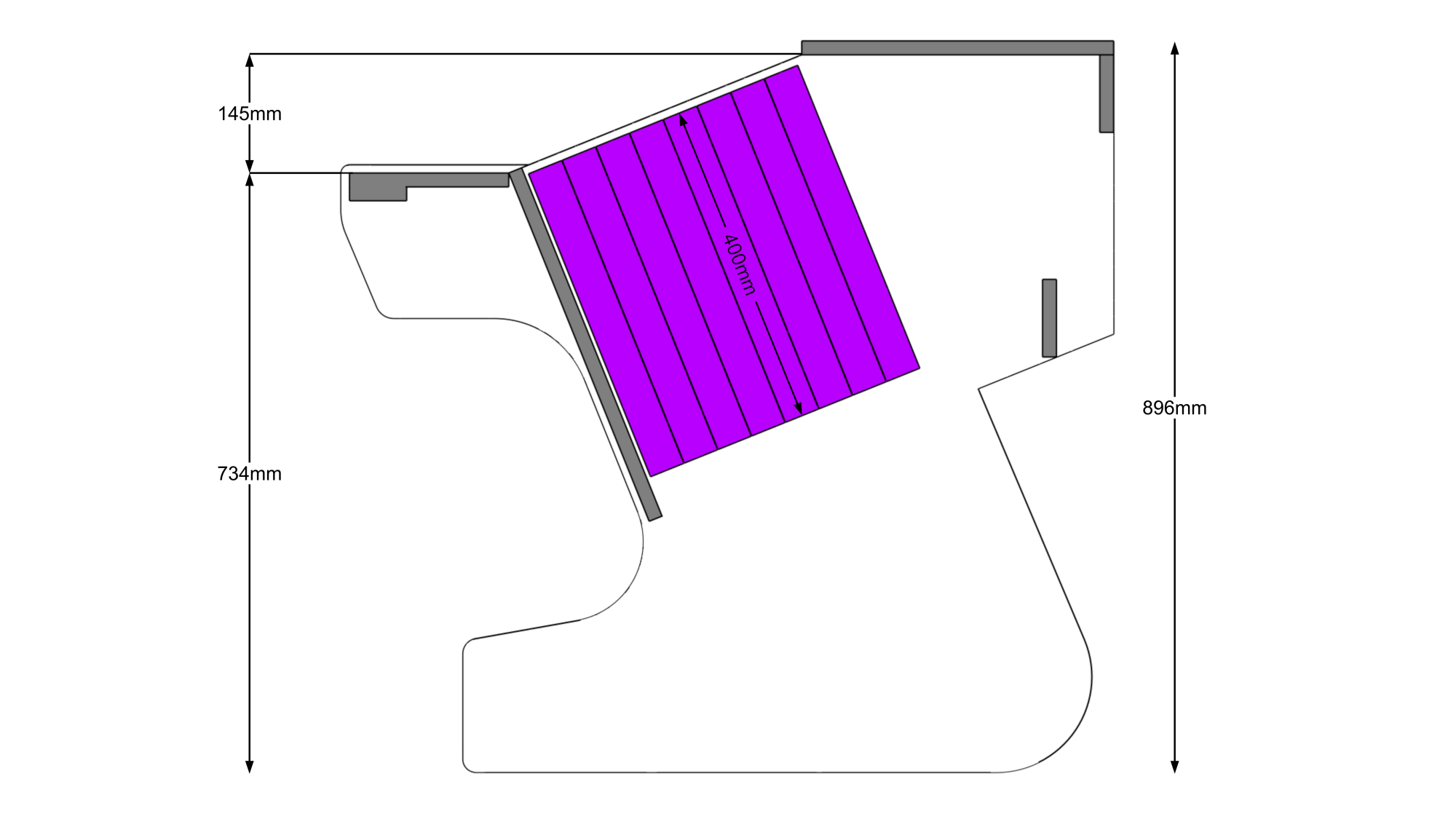

- Angled left and right rack bays of 8RU
Angled 23.6 degrees inward from sitting position.
Angled 68 degrees from vertical.

- 16 rack units total.

- Central computer display shelf.
Elevation/height: 896mm.

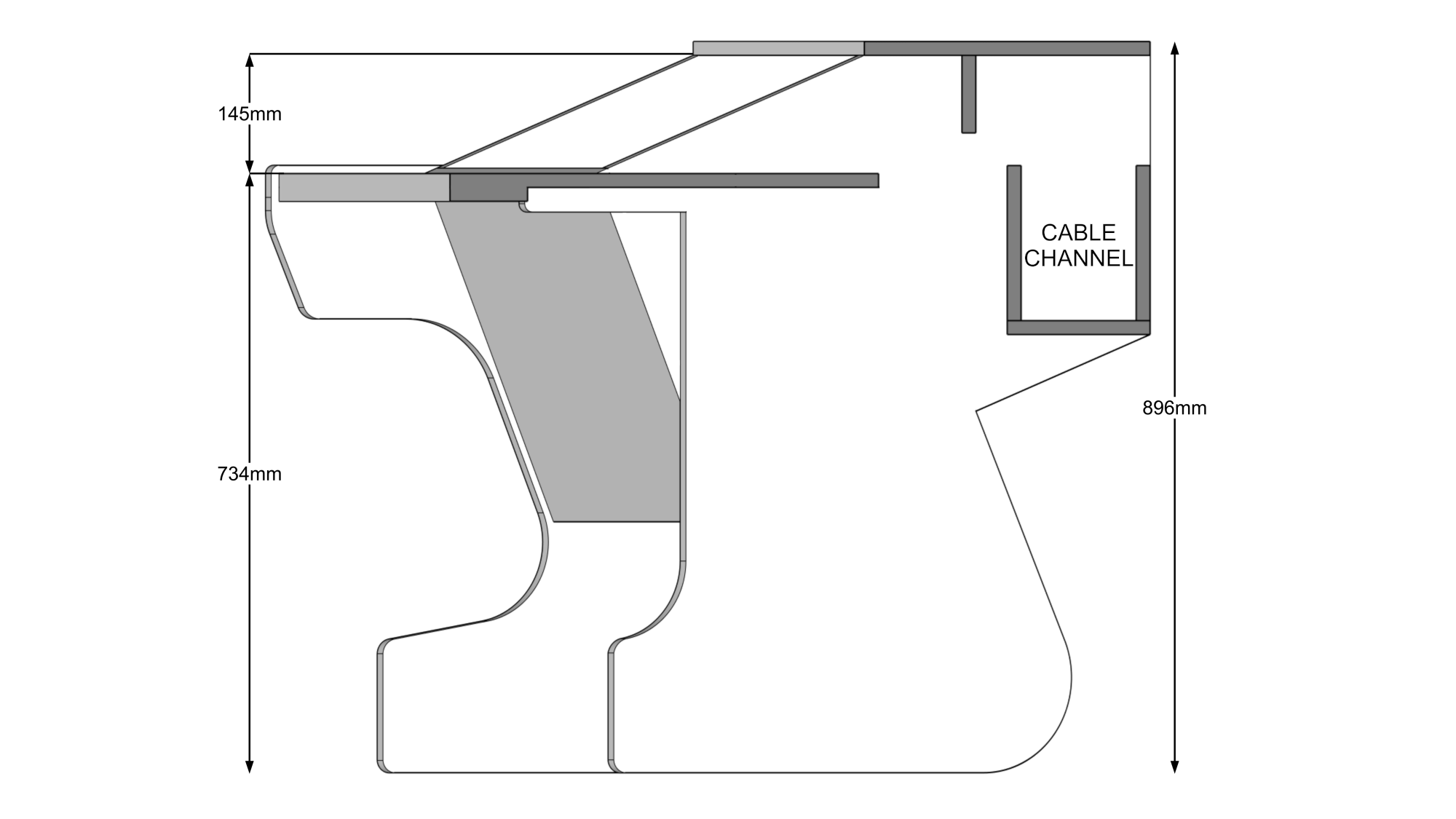

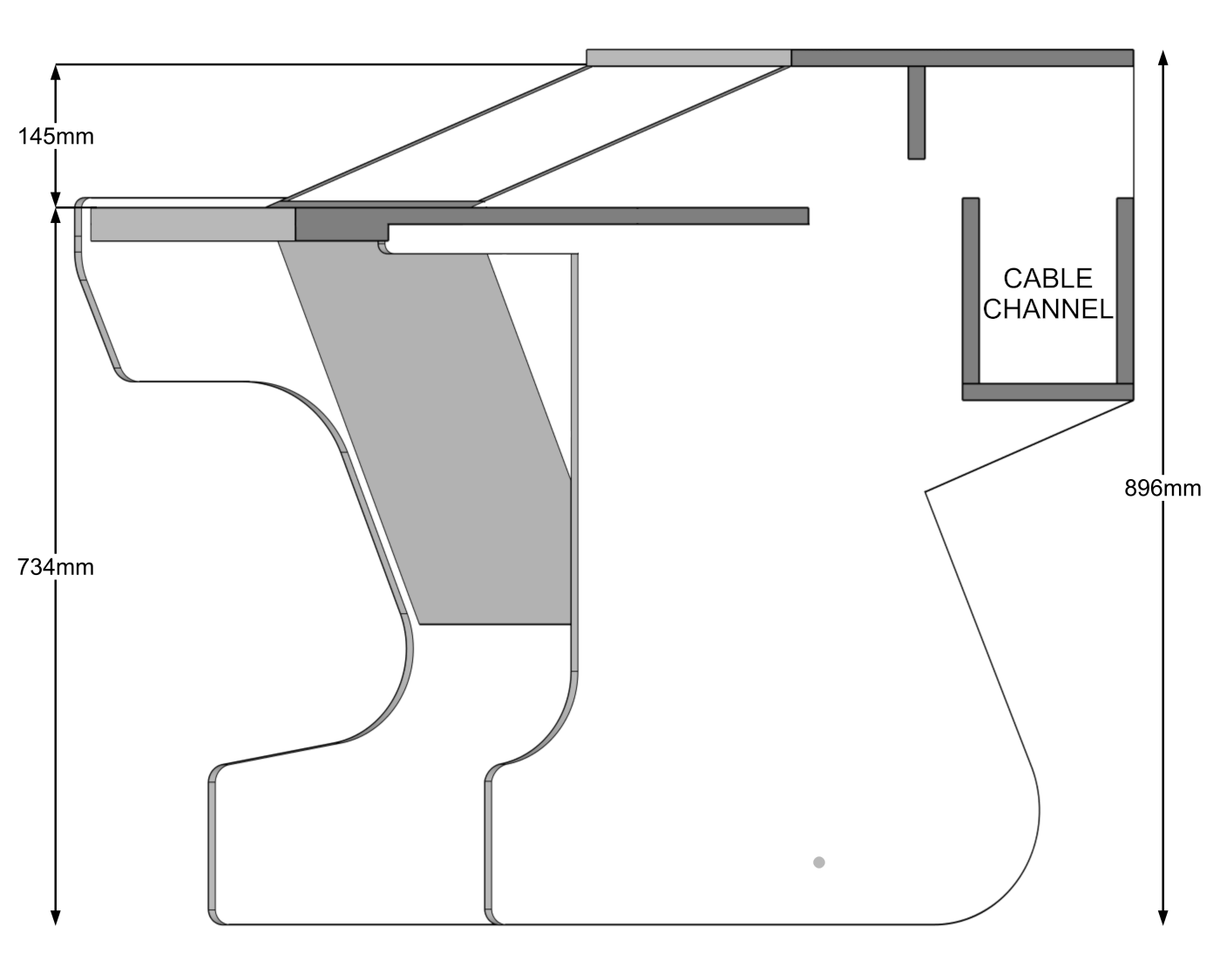

- Central cable channel at the rear runs between both racks for easy cable management.
Cable channel internal dimensions: Width 1291 x Depth 141 x Height 190mm.

What's Included

- 8RU rack rails tapped for M6 bolts to font and rear of racks

- 4x lacing bars for cable management

- 40x M6 bolts for rack equipment and lacing bars

- A4 printed assembly manual

- Electronic PDF assembly manual

What's Not Included

- A/V and 19" outboard rack equipment, other electronics, signal connection plates, power and cabling

- Speaker stands and vented rack plates

Shipping & Collection Options

- Flat-packed in cartons for on-site user assembly

- Factory assembled and delivered as a completed unit

- Collect assembled or partially assembled from our workshop:
392 Victoria Street, Brunswick 3058, VIC
