Stage Management Console 3A

Name: Stage Management Console 3A
Brand: Fusion Studio Works
SKU: FSW-SMC3A-BK
Price: 2949.0 AUD
Availability: InStock

$2,949.00

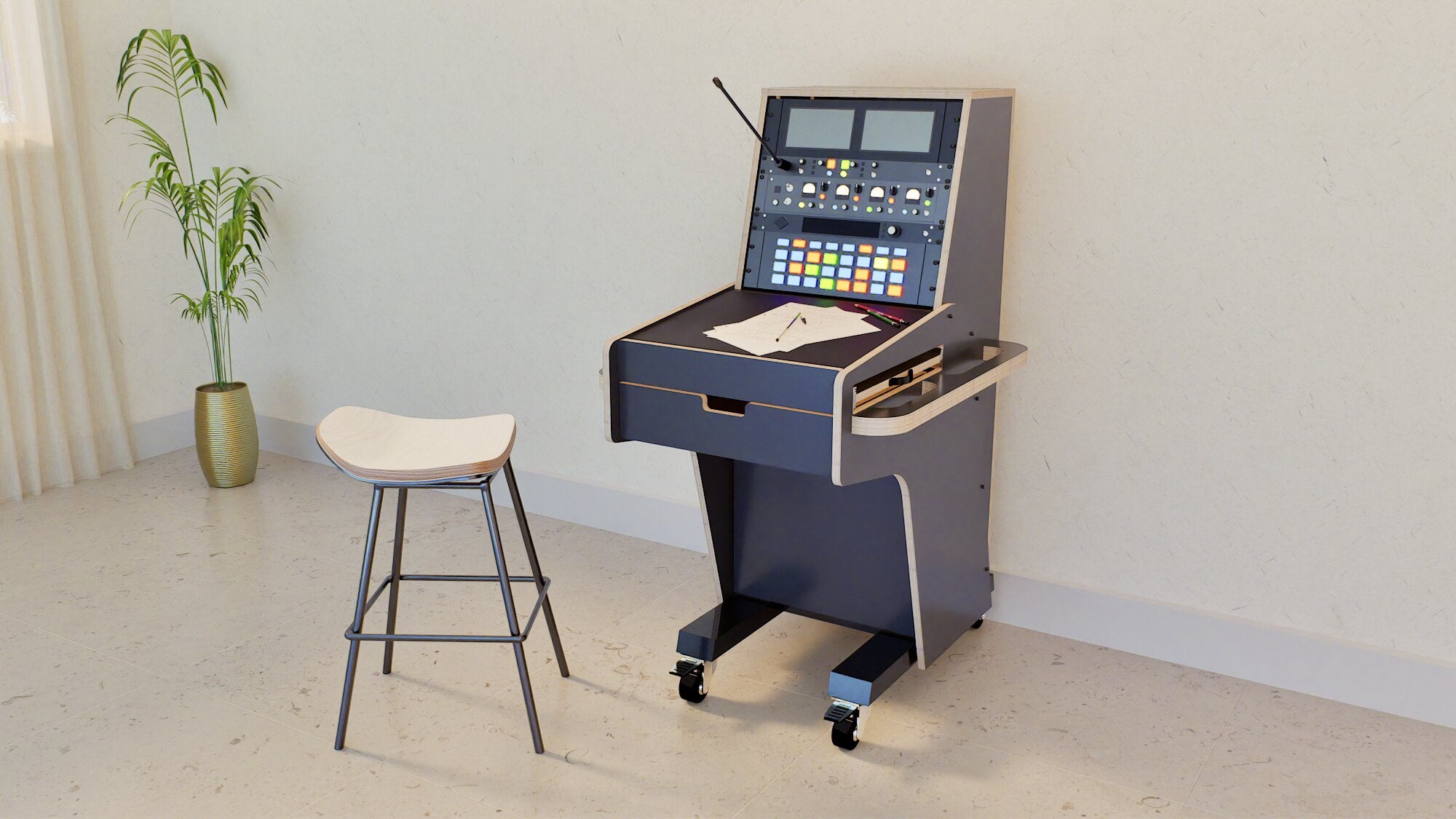

The central communications console for the stage manager of a theatre production. Load it with 19" rack communications and video monitoring gear.

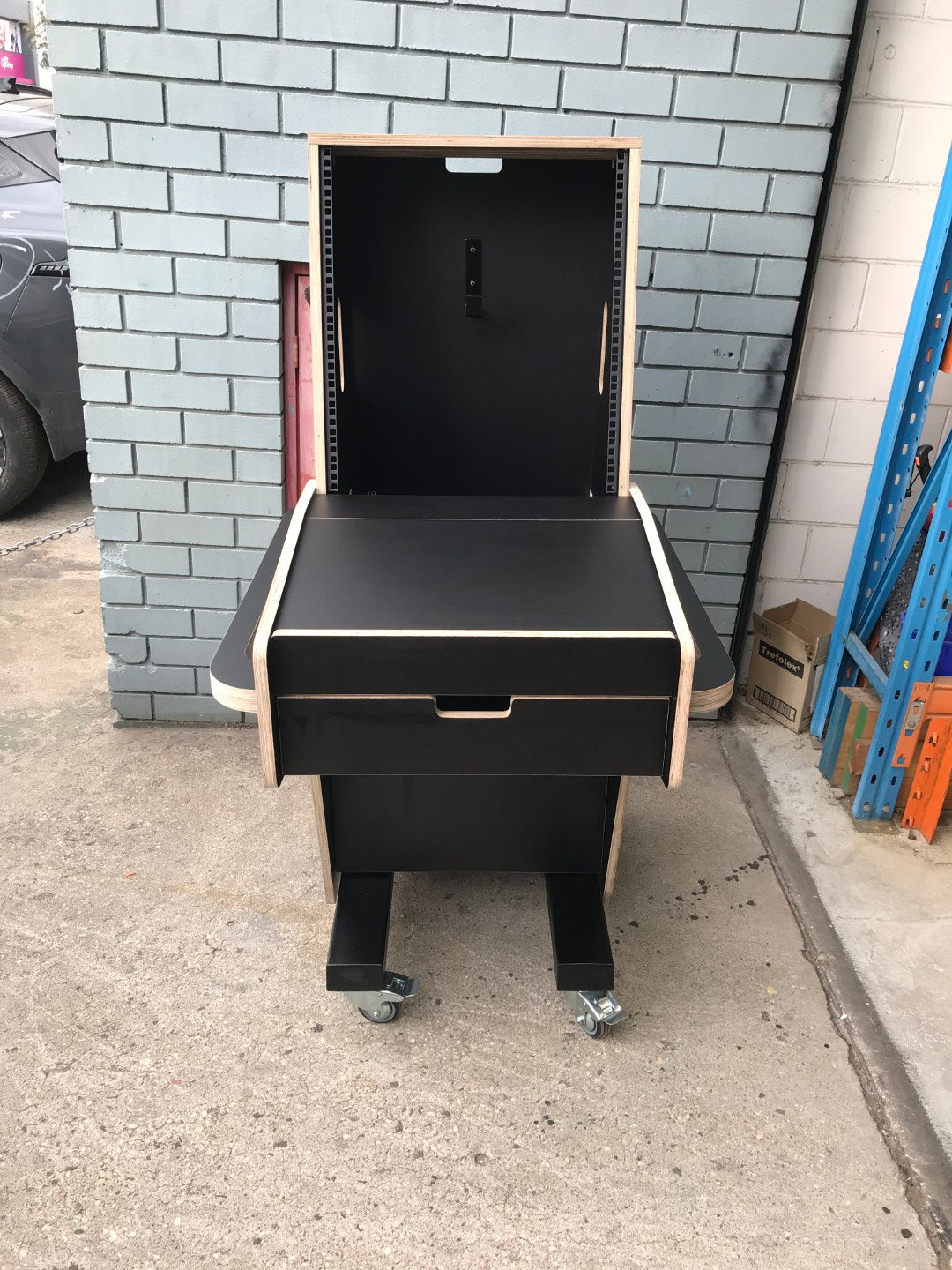

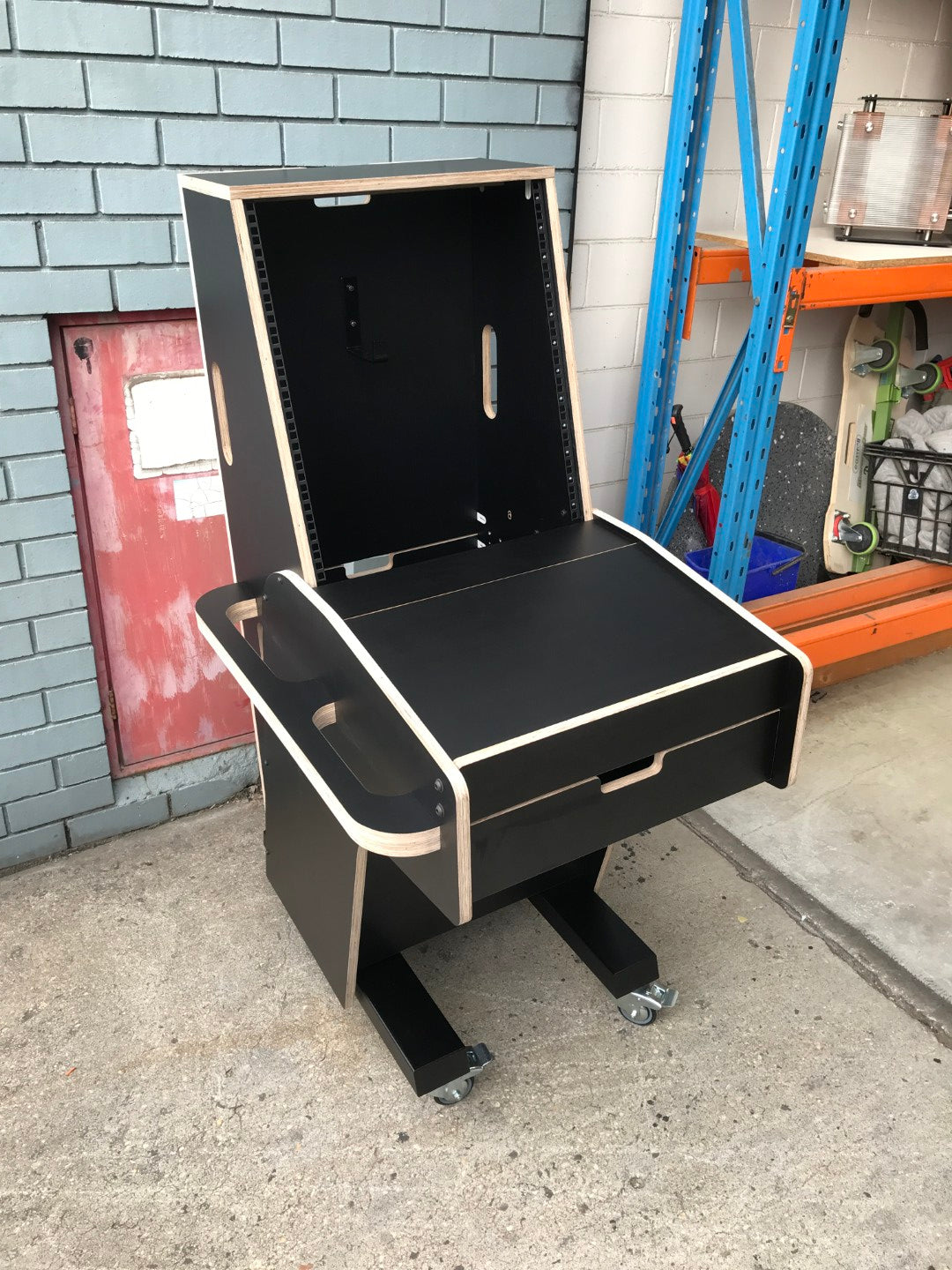

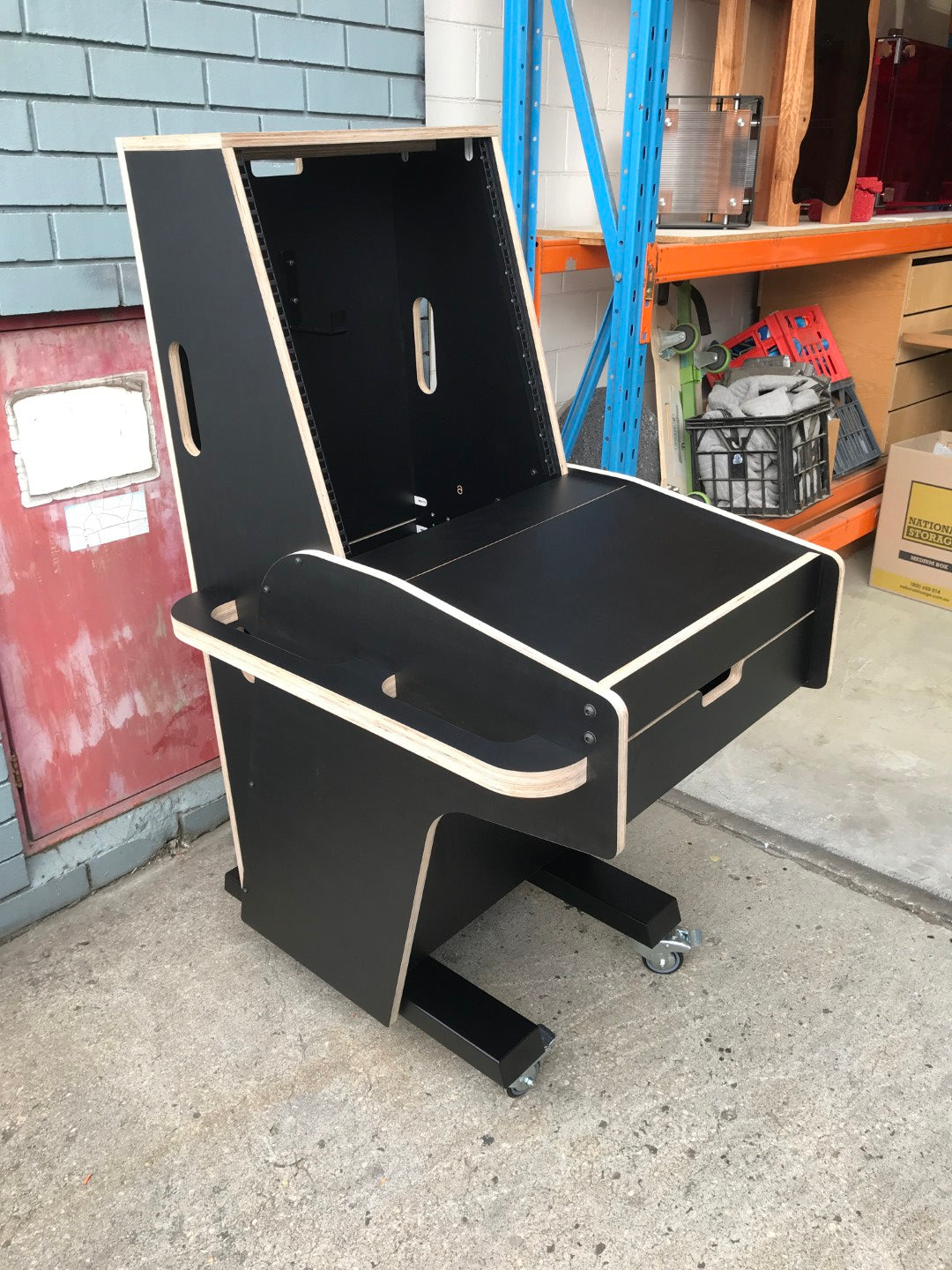

The Stage Management Console 3A is compact unit for use where backstage real estate is at a premium.

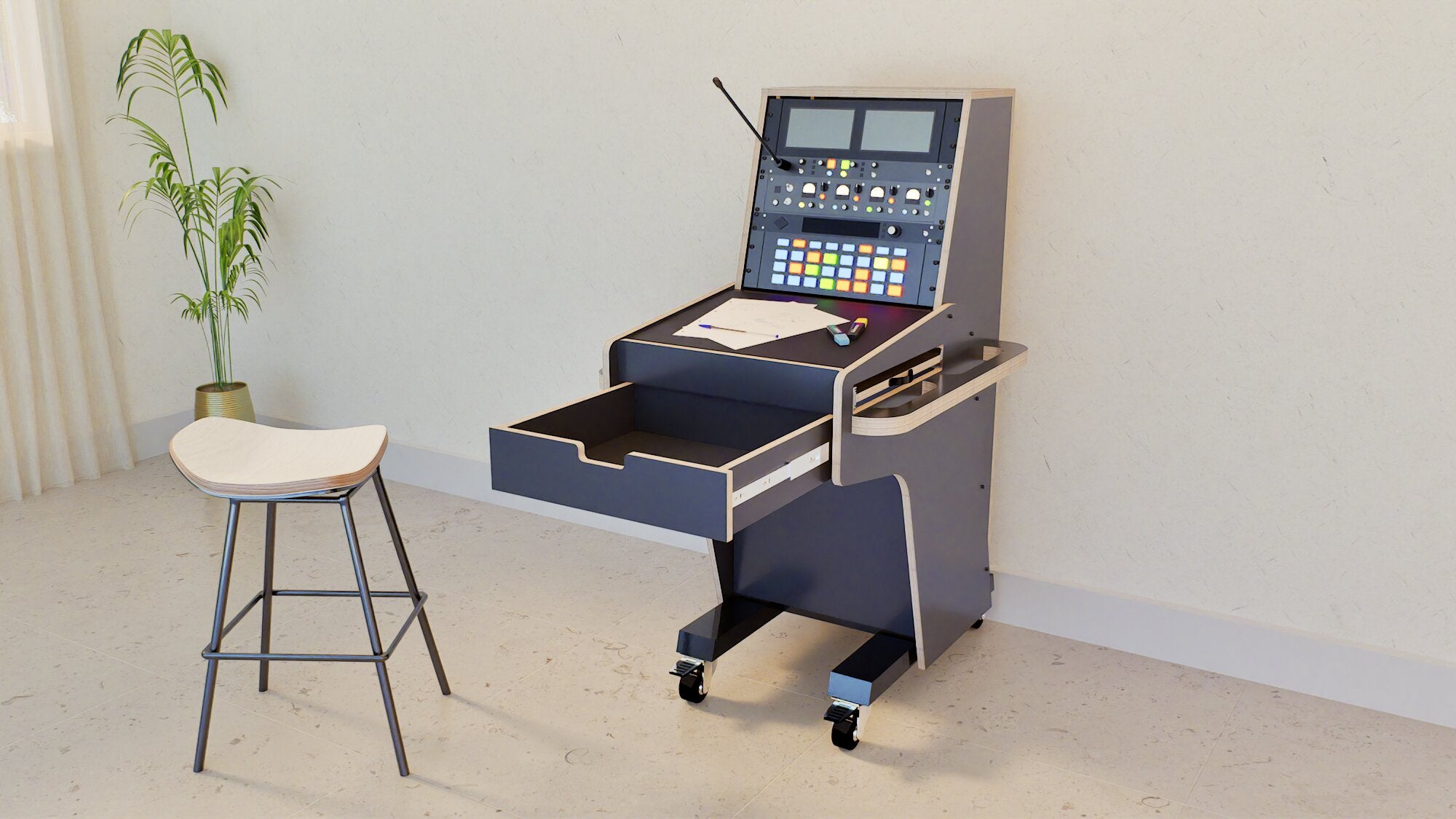

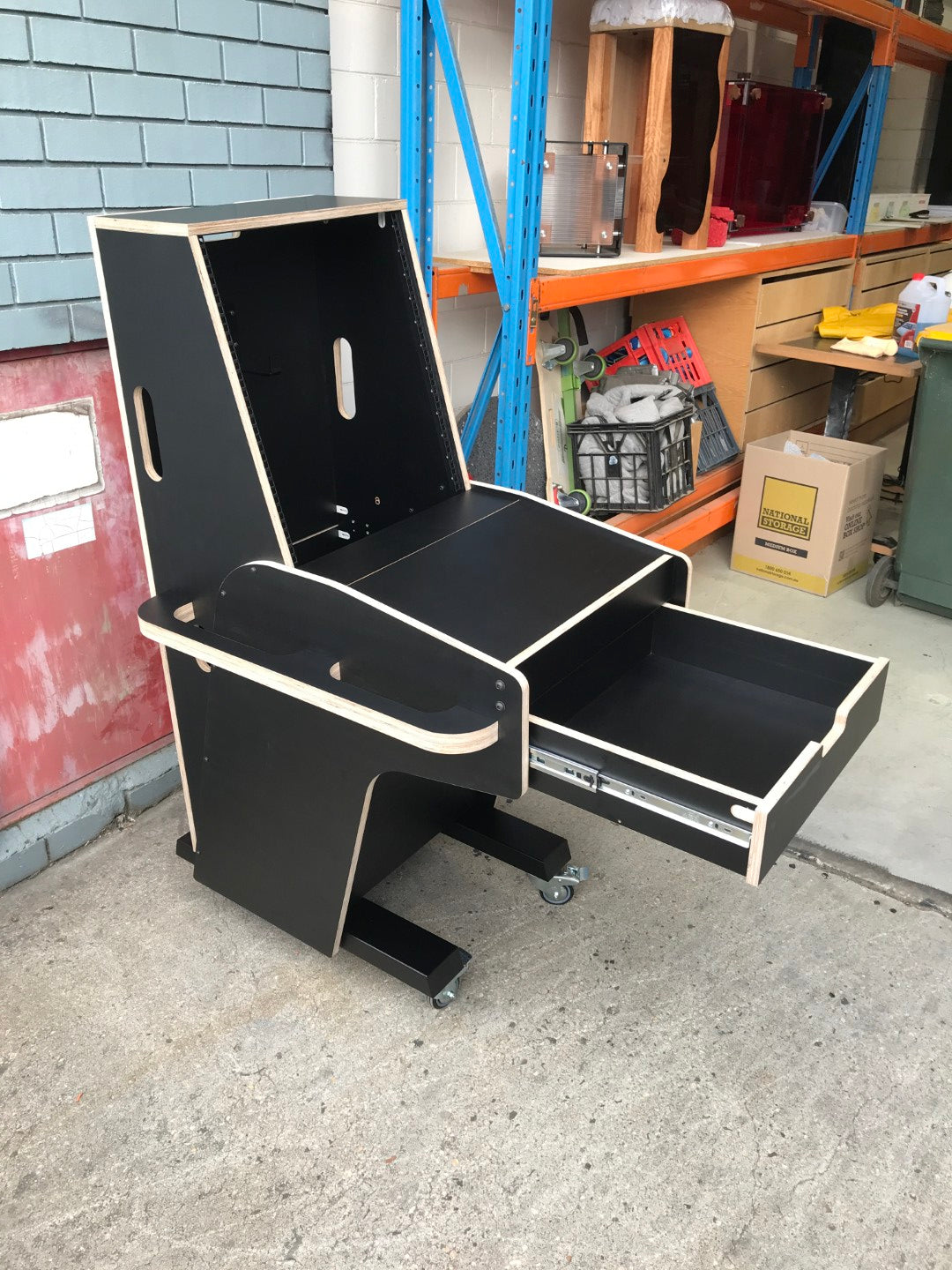

SMC 3A houses 10 rack units above the worktop and the worktop is large enough for A3 size running sheets. You'll find a large drawer under the worktop and a single door cabinet in the lower body which can house another 10 rack units of 19" equipment if required.

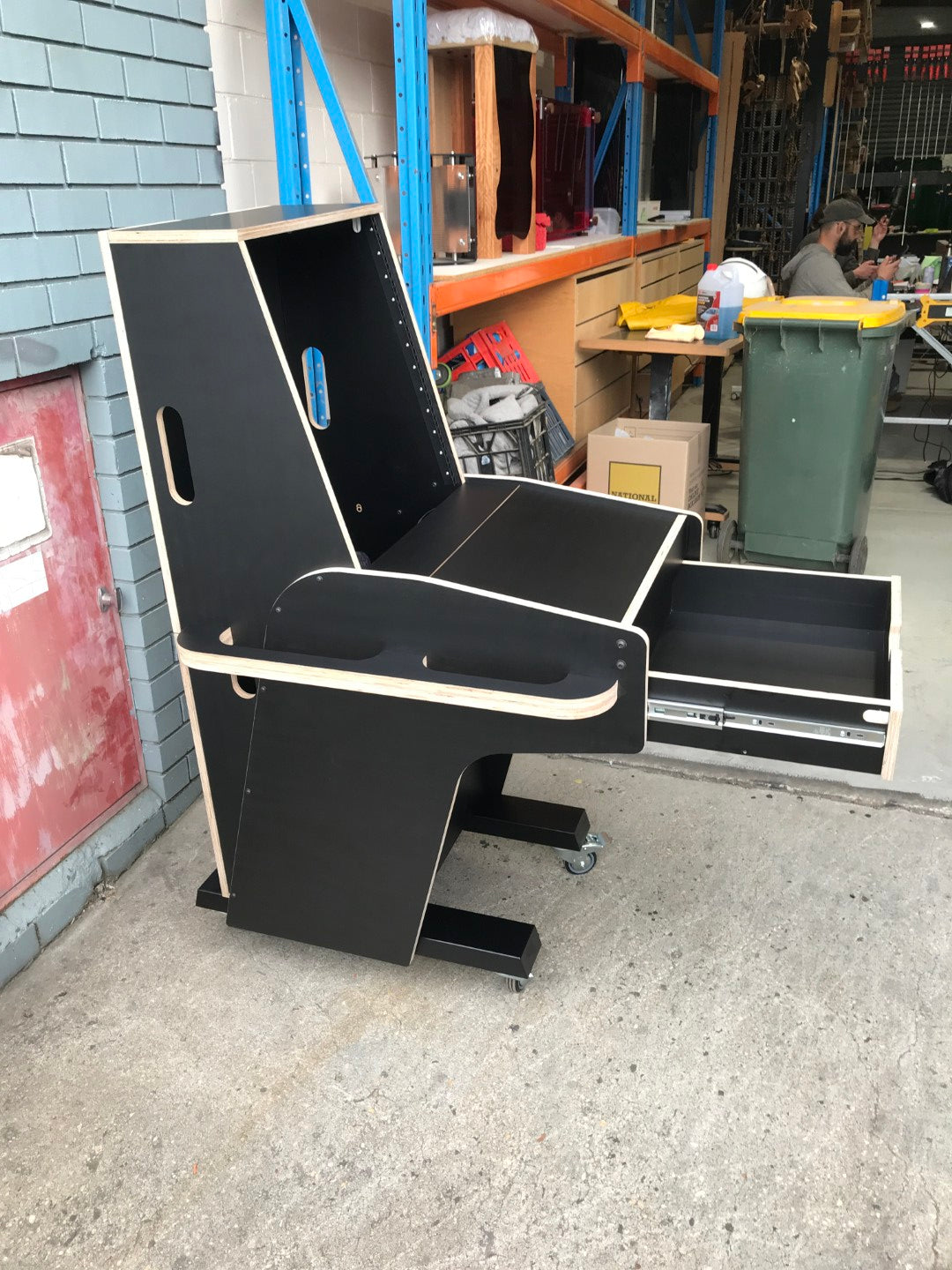

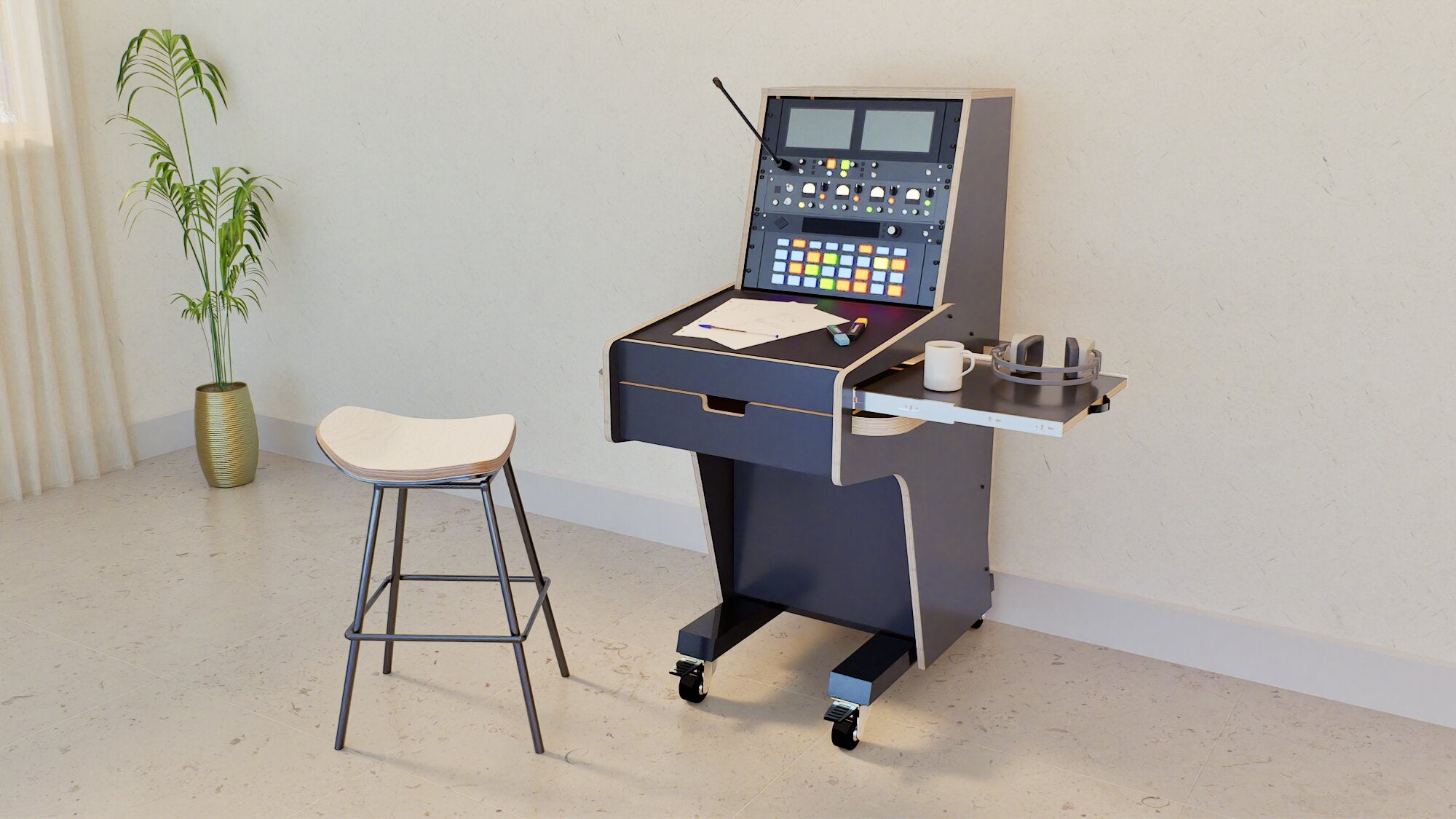

Stage Management Console 3A has a retractable tray which pulls out from the right side of the unit. The tray extends the desktop for your overflow gear such as laptop computers, headsets and coffee mugs.

Each application of a Stage Management Console is different. Fusion Studio Works will customize your unit with machined cut-outs to suit your specified audio visual equipment. Cut-outs can be located anywhere in the body of the unit.

Cut-outs may include provisions for audio visual signal connector plates, power and data distribution devices, timing equipment, cabling hooks, ratchet strap through ports and extra handling holes.

Product Specifications

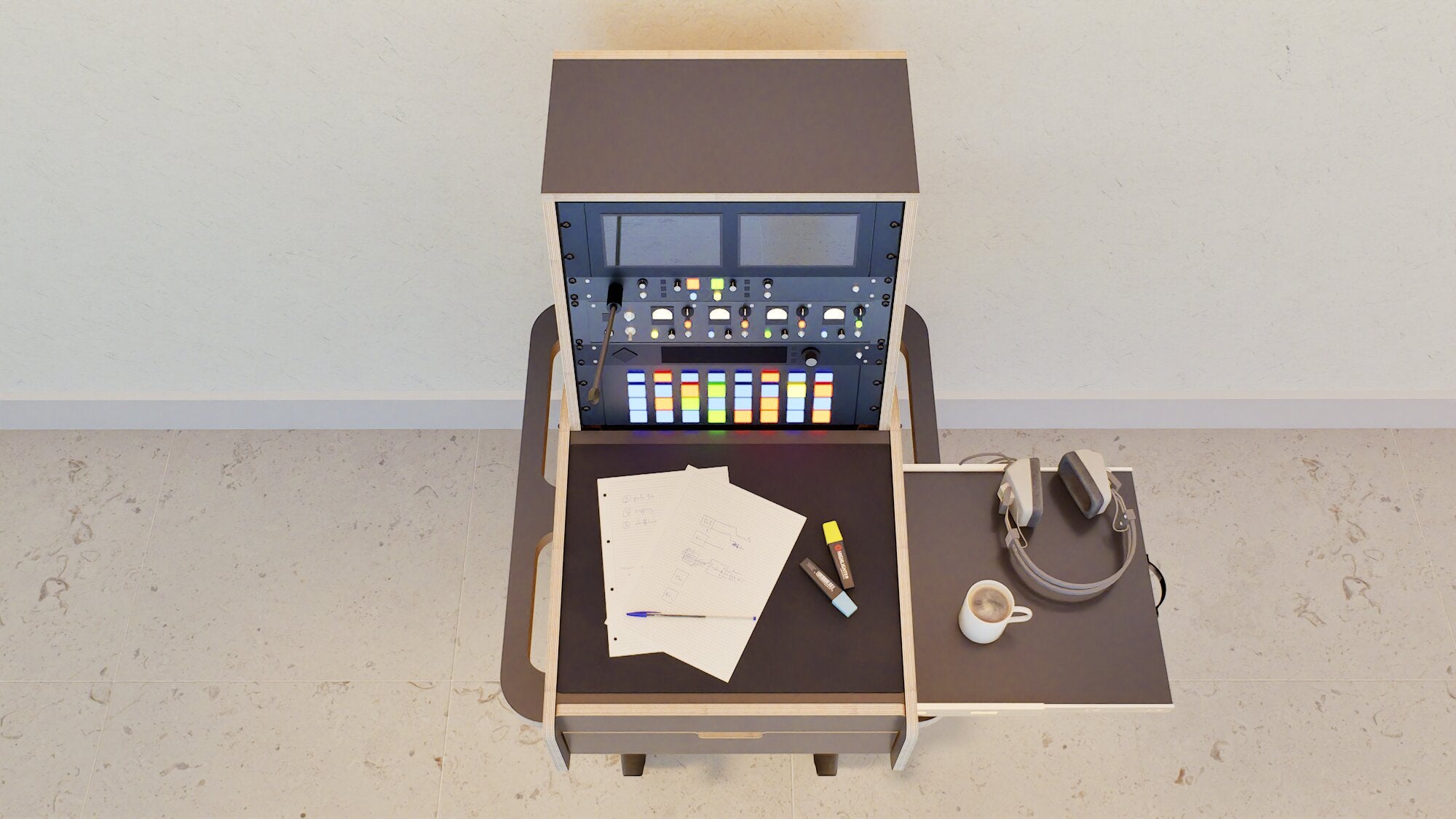

- Large, angled desktop 523x448mm.

- Drawer under desktop (not lockable).

- Drawer internal dimensions 463x400x104mm.

- 10 rack units total in upper rack area.

- Retractable shelf, right side.

- Lower cabinet (not lockable) provides optional 10 rack units or an adjustable shelf.

- Bump/handling rail, left and right sides.

- x2 heavy duty premium 80mm braked casters at the front, x2 heavy duty premium 80mm non-braked casters at the rear.

- Extremely sturdy construction, made from steel and film faced, finger print resistant plywood.

Important Info

It is the responsibility of the customer and/or consultant to check that all specified A/V and electronic equipment will physically fit in the unit.

The Stage Management Console SMC-1A is a customizable product. Custom specifications enquires are made via our contact form

What's Included

- CAD preparation for the addition of CNC machined cut-outs for A/V equipment anywhere in the body of the unit

- 10RU rack rail to main and lower cabinet racks

What's Not Included

- A/V and 19" outboard rack equipment, other electronics, signal connection plates, power and cabling

- Rack cage nuts and bolts

Shipping & Collection Options

- Flat-packed in cartons for on-site user assembly

- Factory assembled and delivered as a completed unit

- Collect assembled or partially assembled from our workshop:
392 Victoria Street, Brunswick 3058, VIC

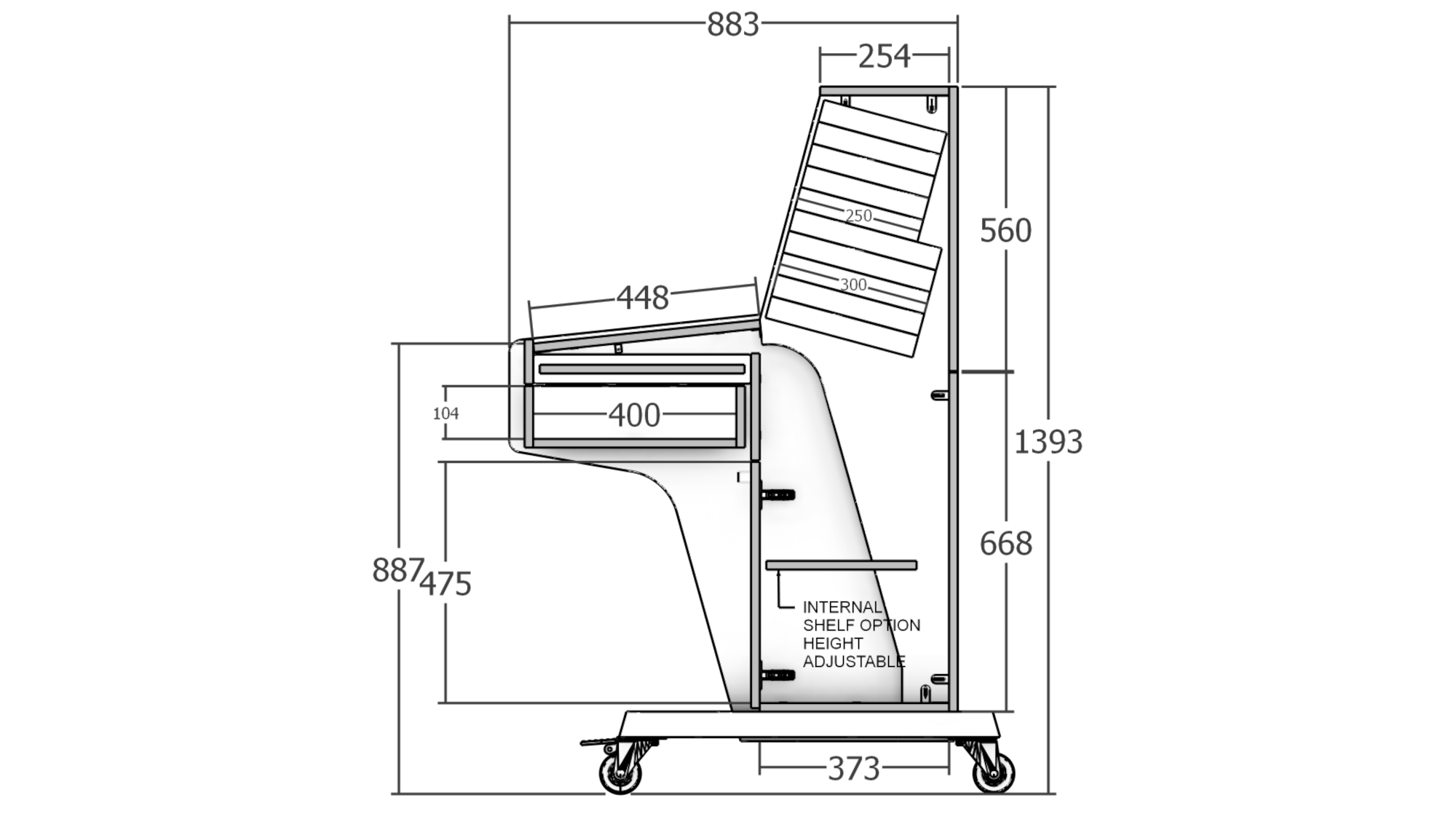

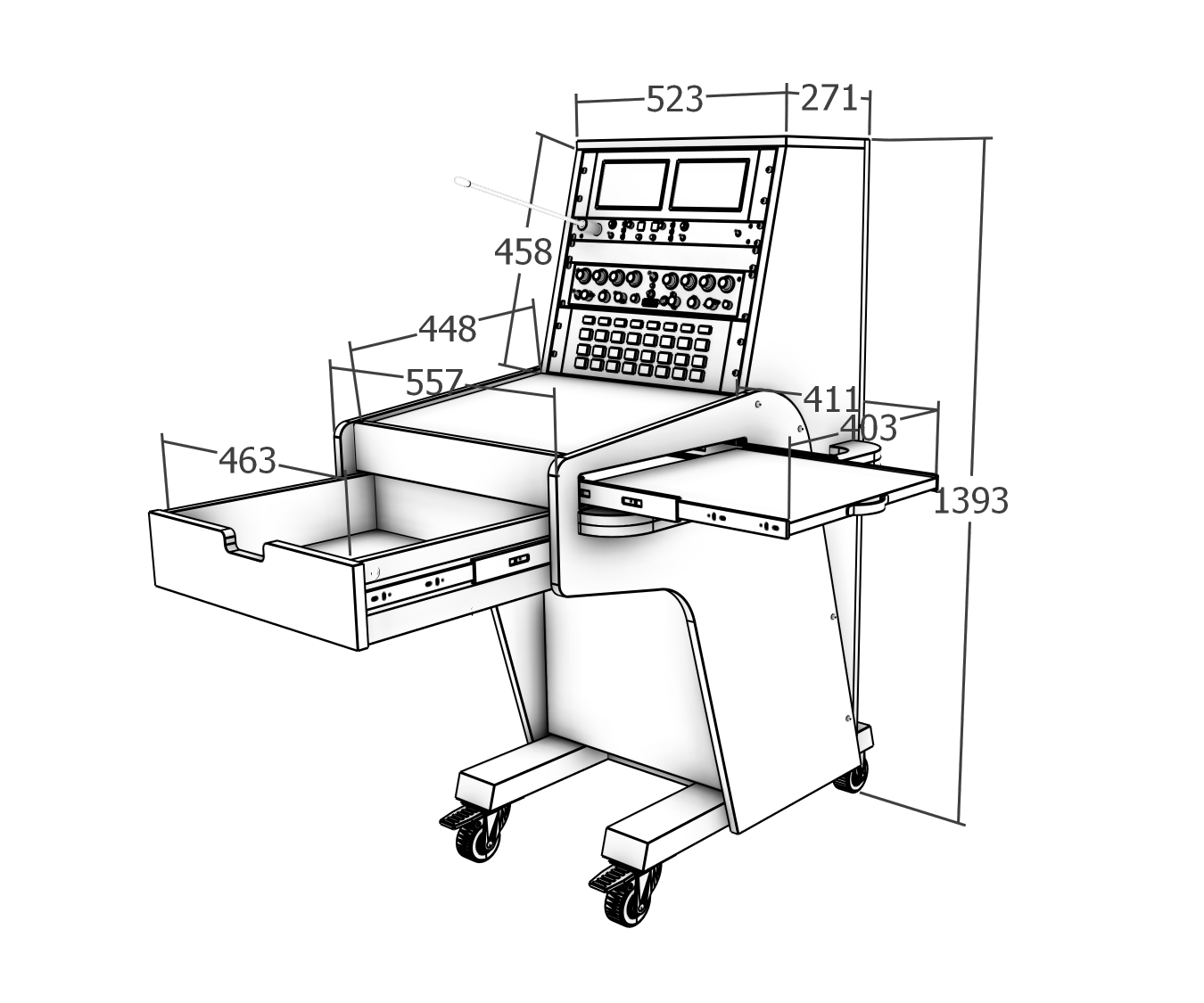

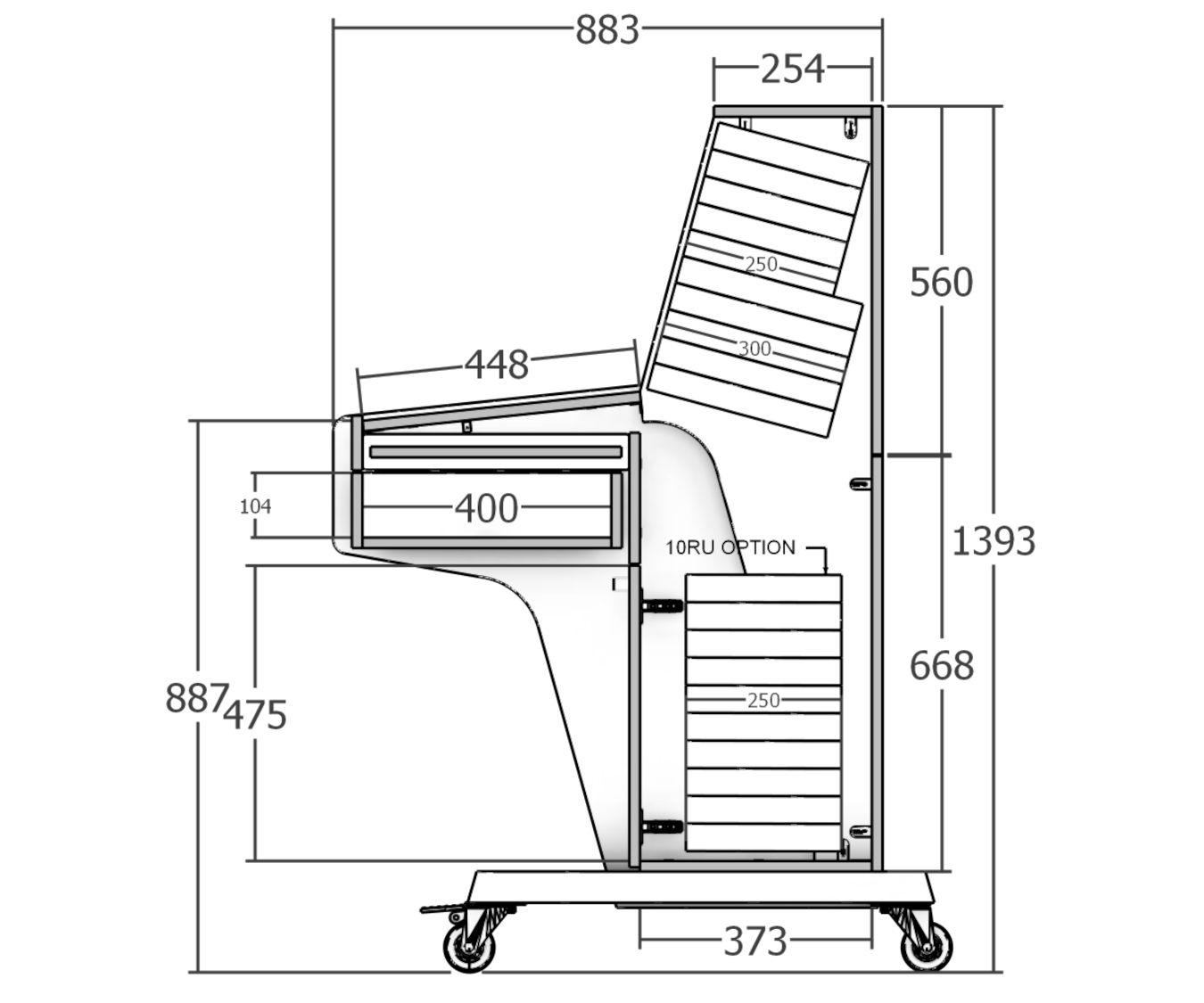

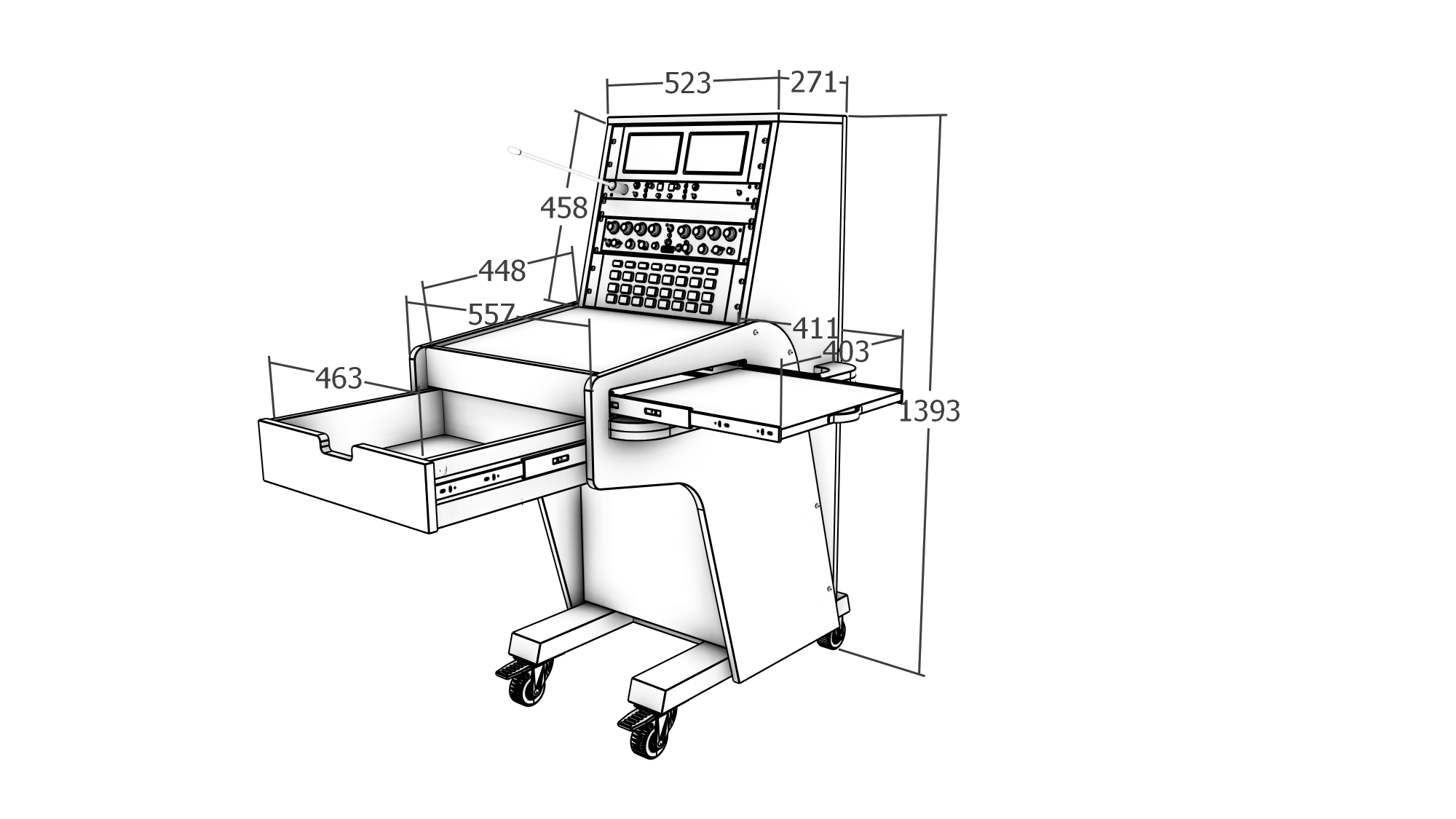

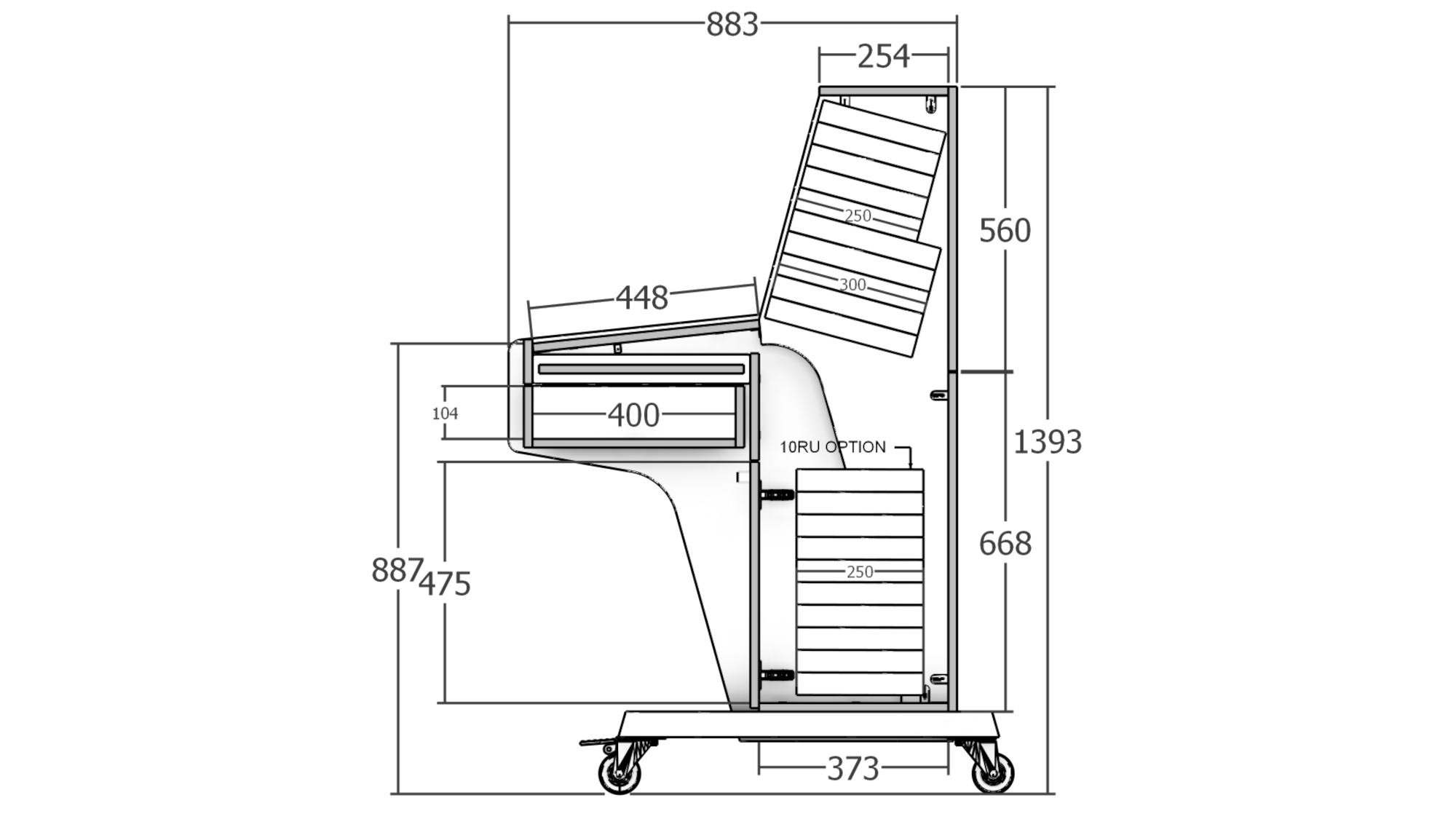

Product Technical Drawing

SMC_3A_Technical_Drawing_A4.pdf

A DWG CAD file can be supplied on request.
