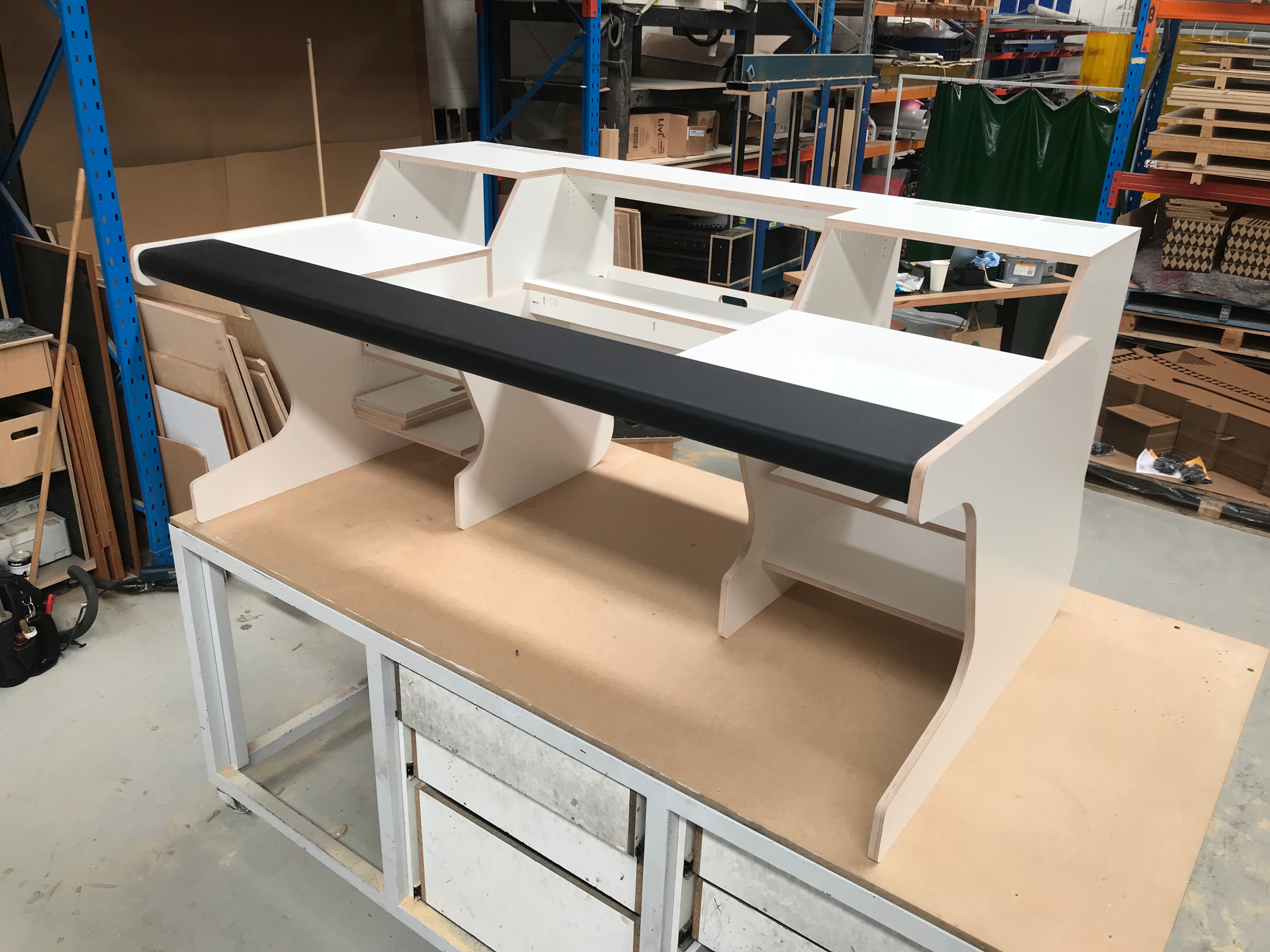

- Luxurious padded armrest

- Recessed or flush mounted center keyboard/console shelf

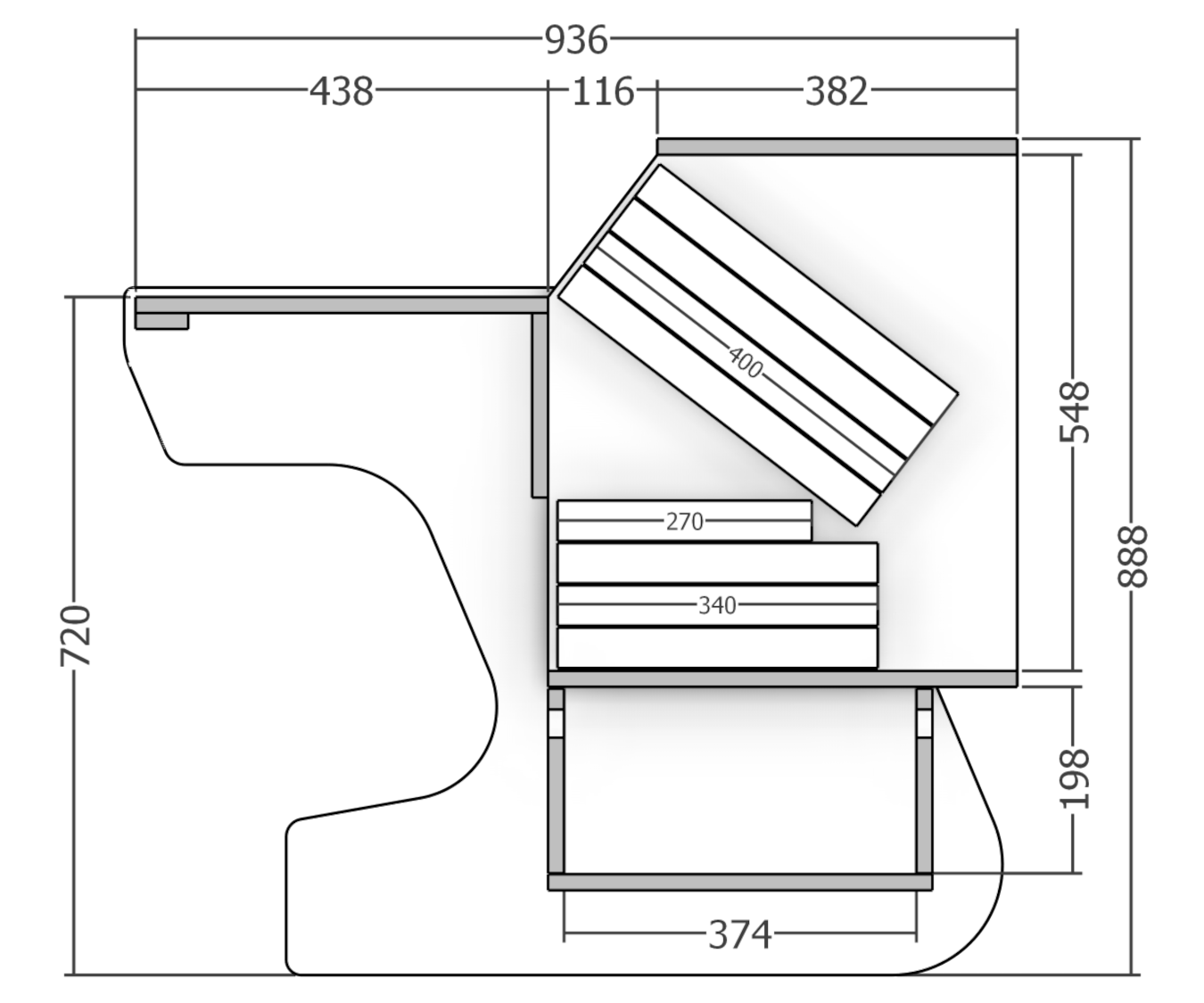

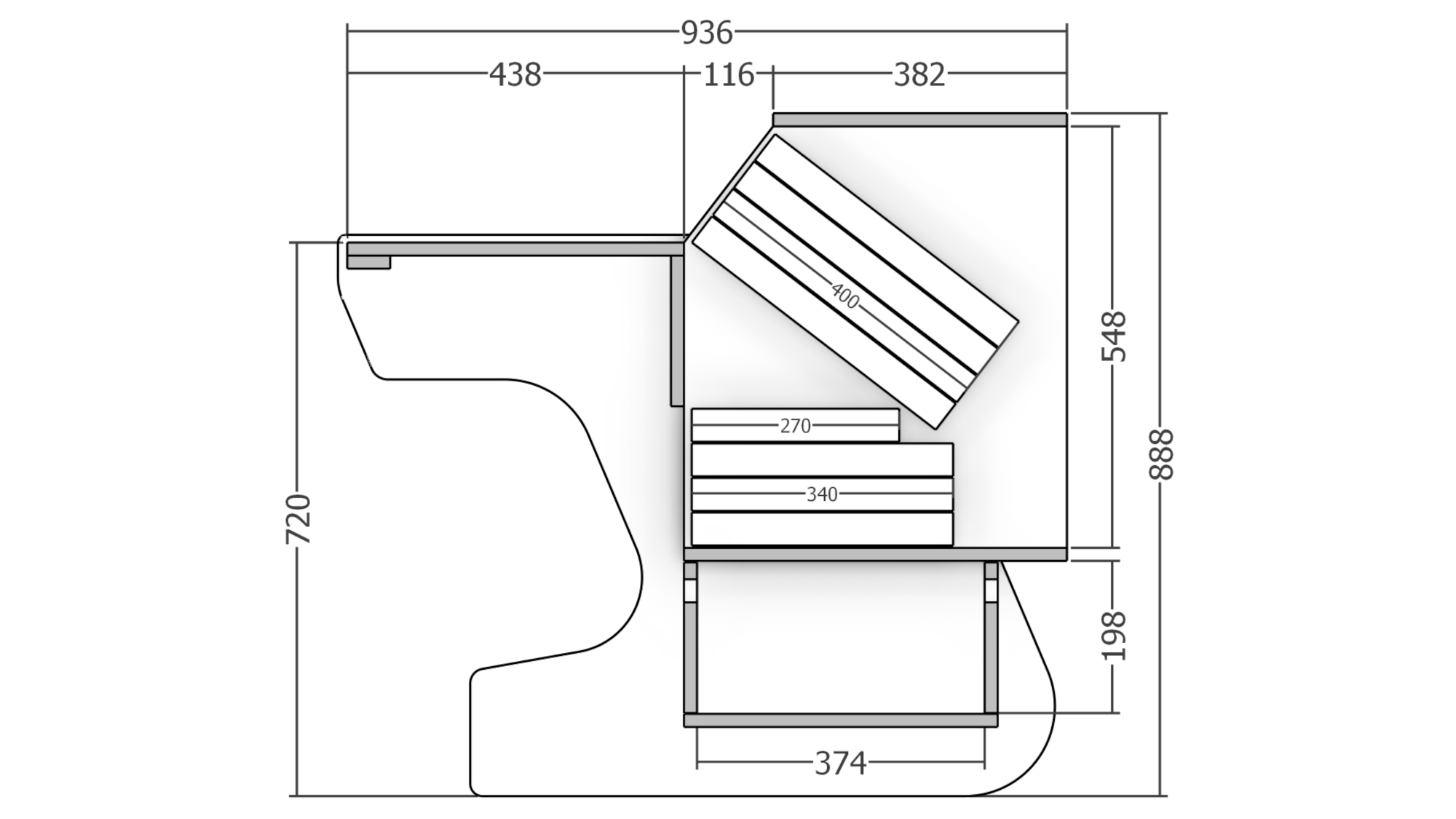

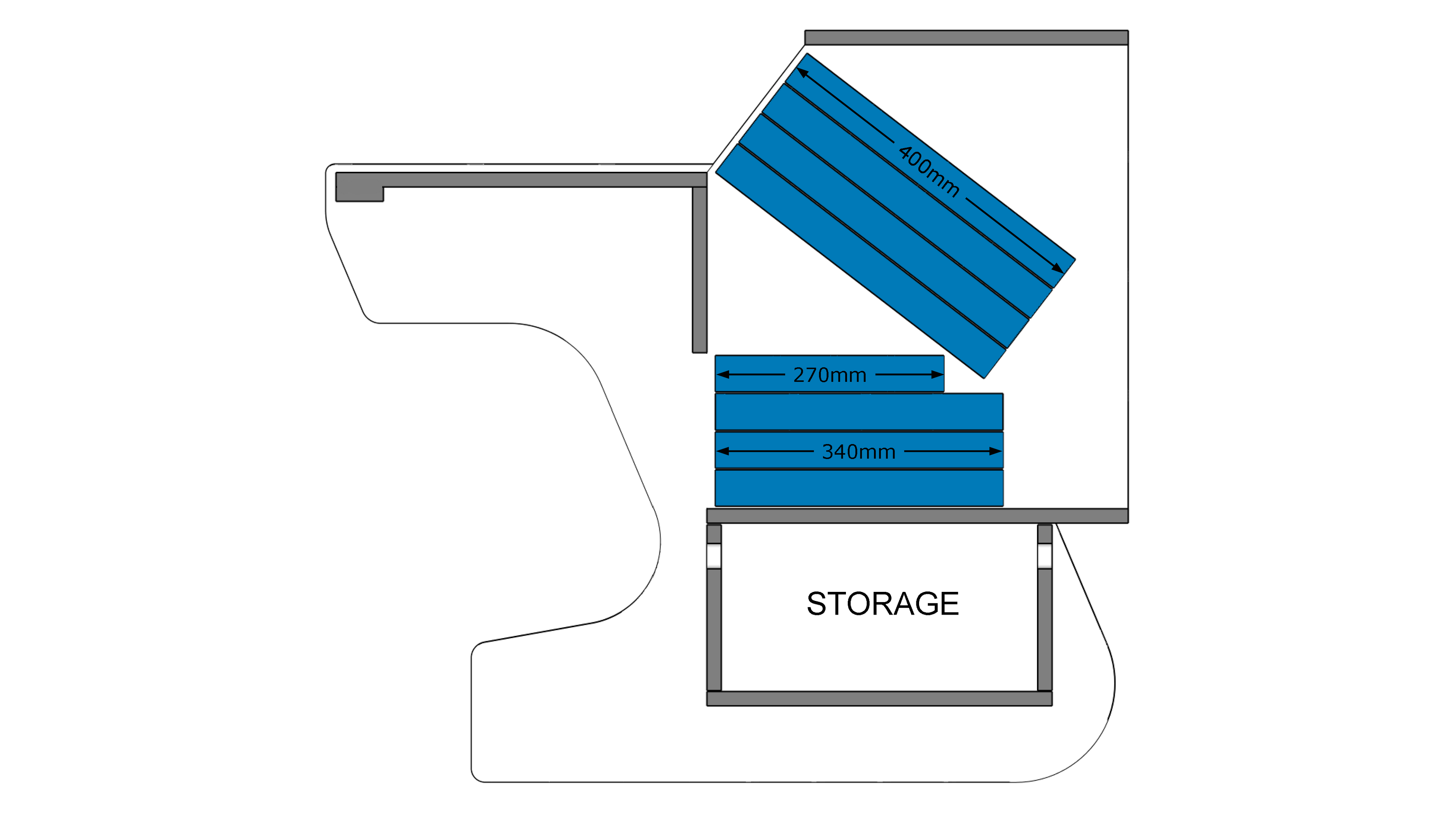

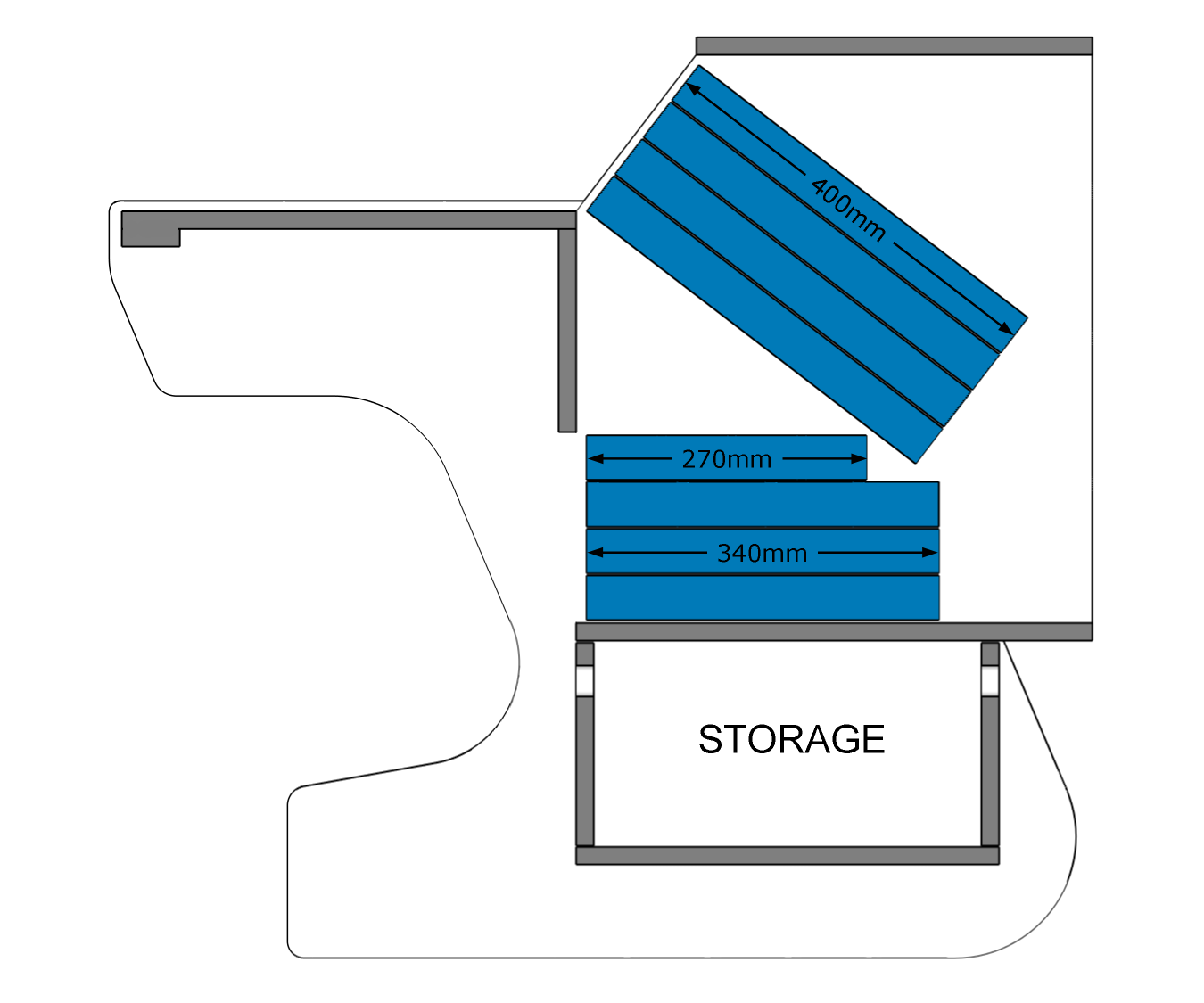

- 4 rack units per side above the desktop

- 4 rack units per side below the desktop

- 16 rack units total

- Generous storage cabinet in each rack with removable magnetic front panel

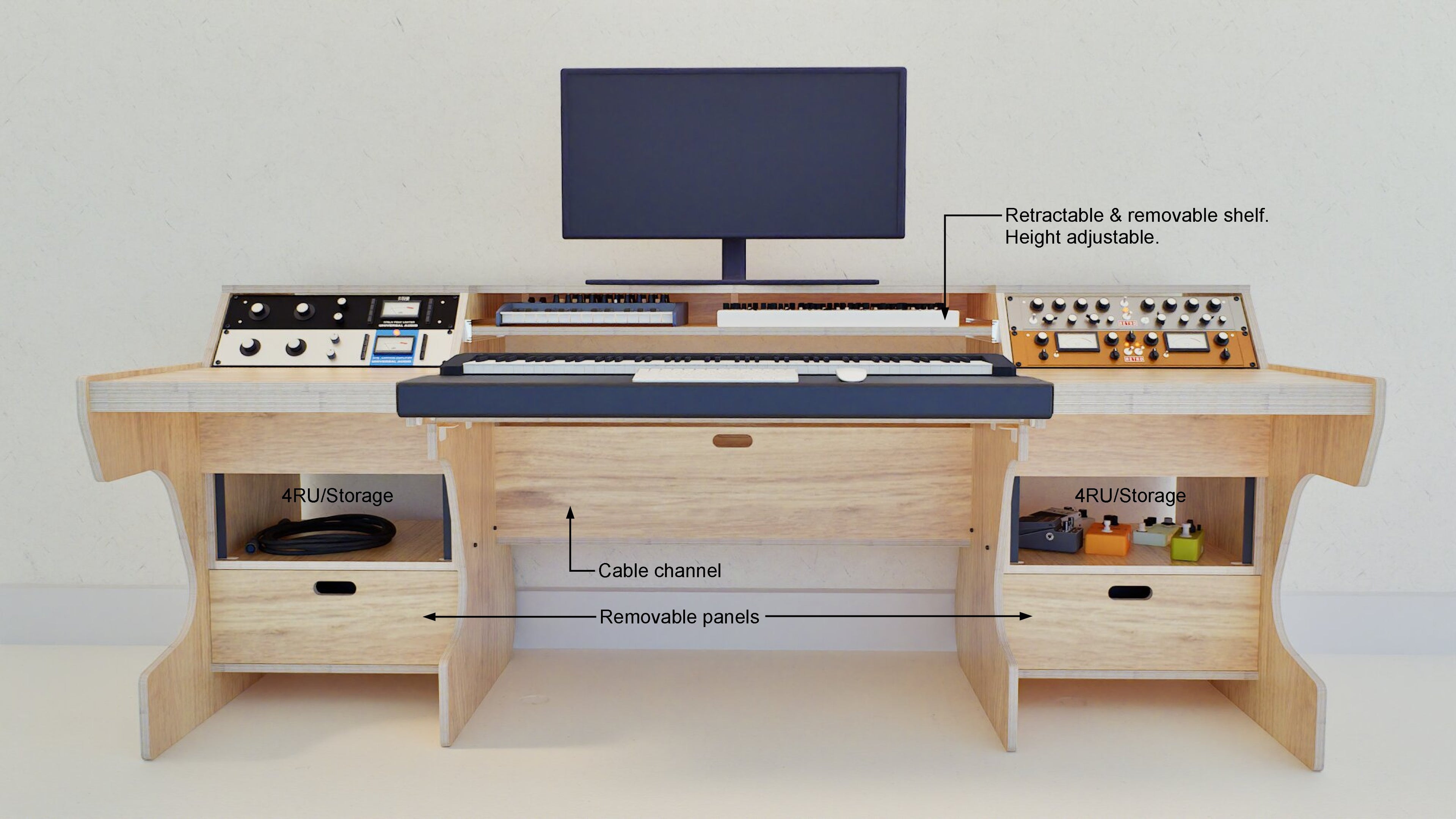

- Retractable and height adjustable equipment tray with lockable drawer slides, set between the monitor shelf and the worktop. Useful for controllers and equipment which need to be on hand but you would like out of the way when not in use. This shelf is also completely removable if not required

- Height adjustable central computer display shelf

- Central cable channel at the rear runs between both racks for easy cable management

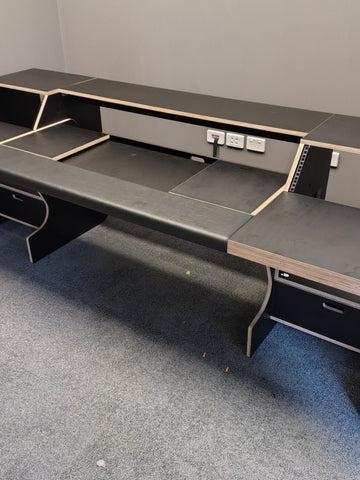

Recessable Center Keyboard/Console Shelf*

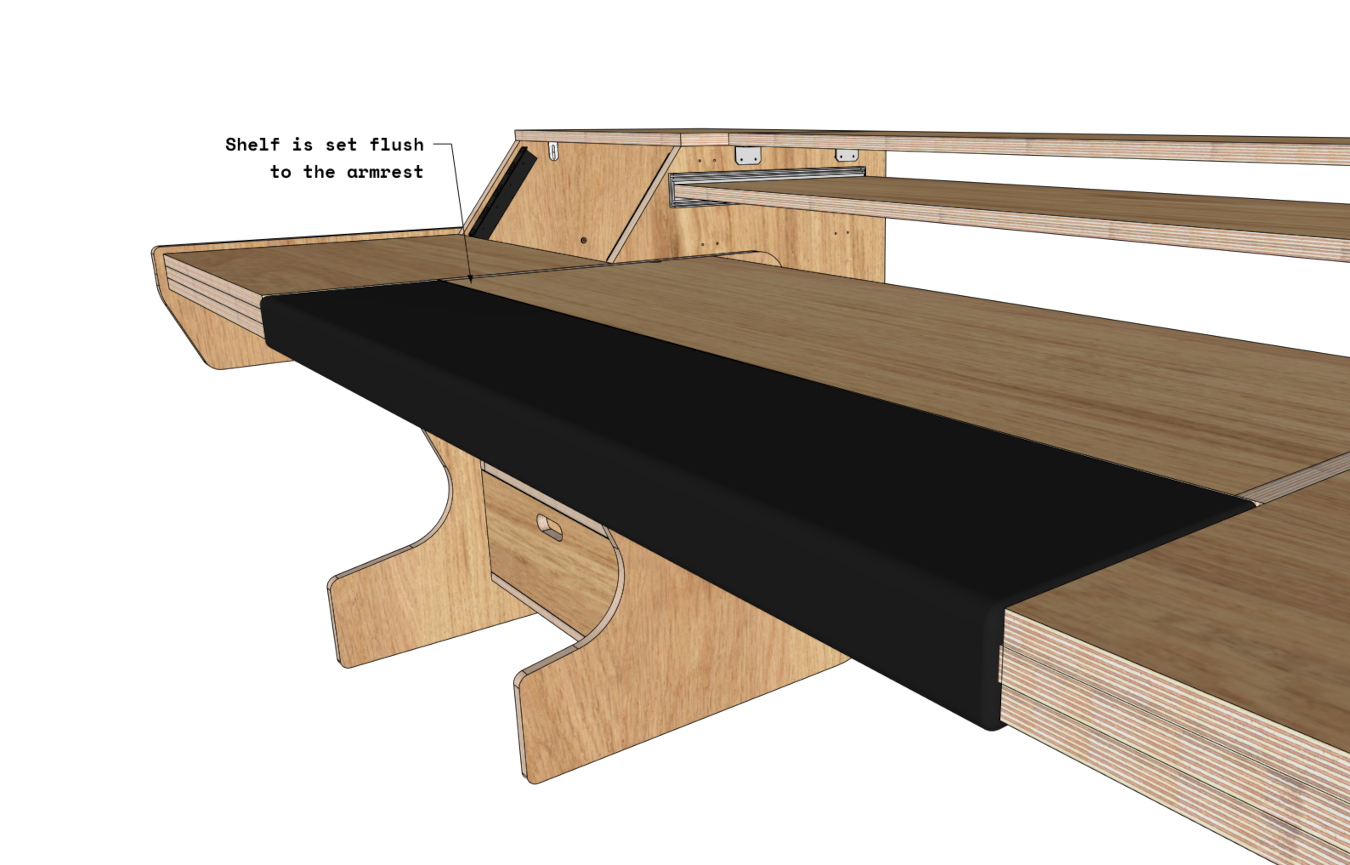

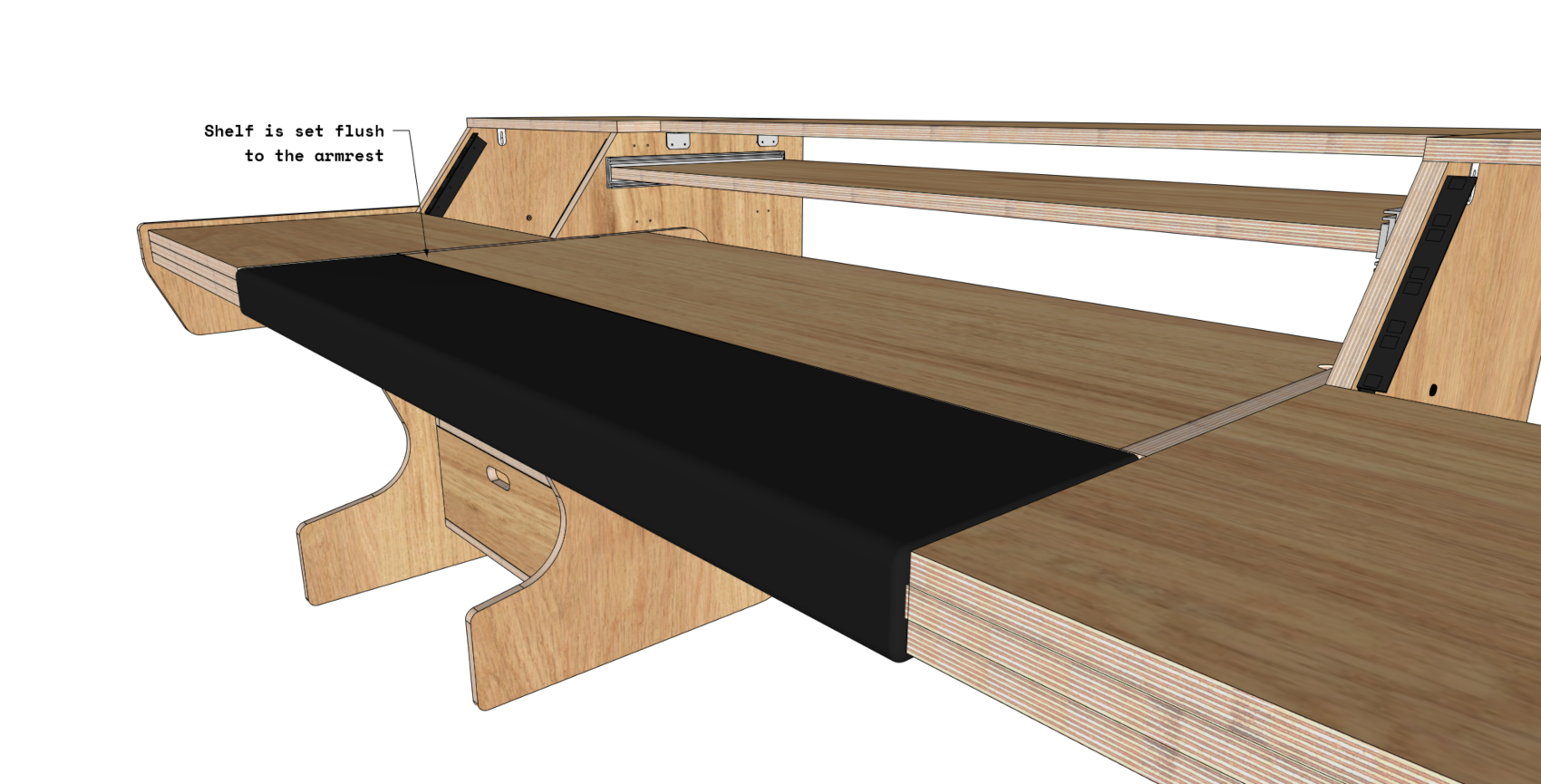

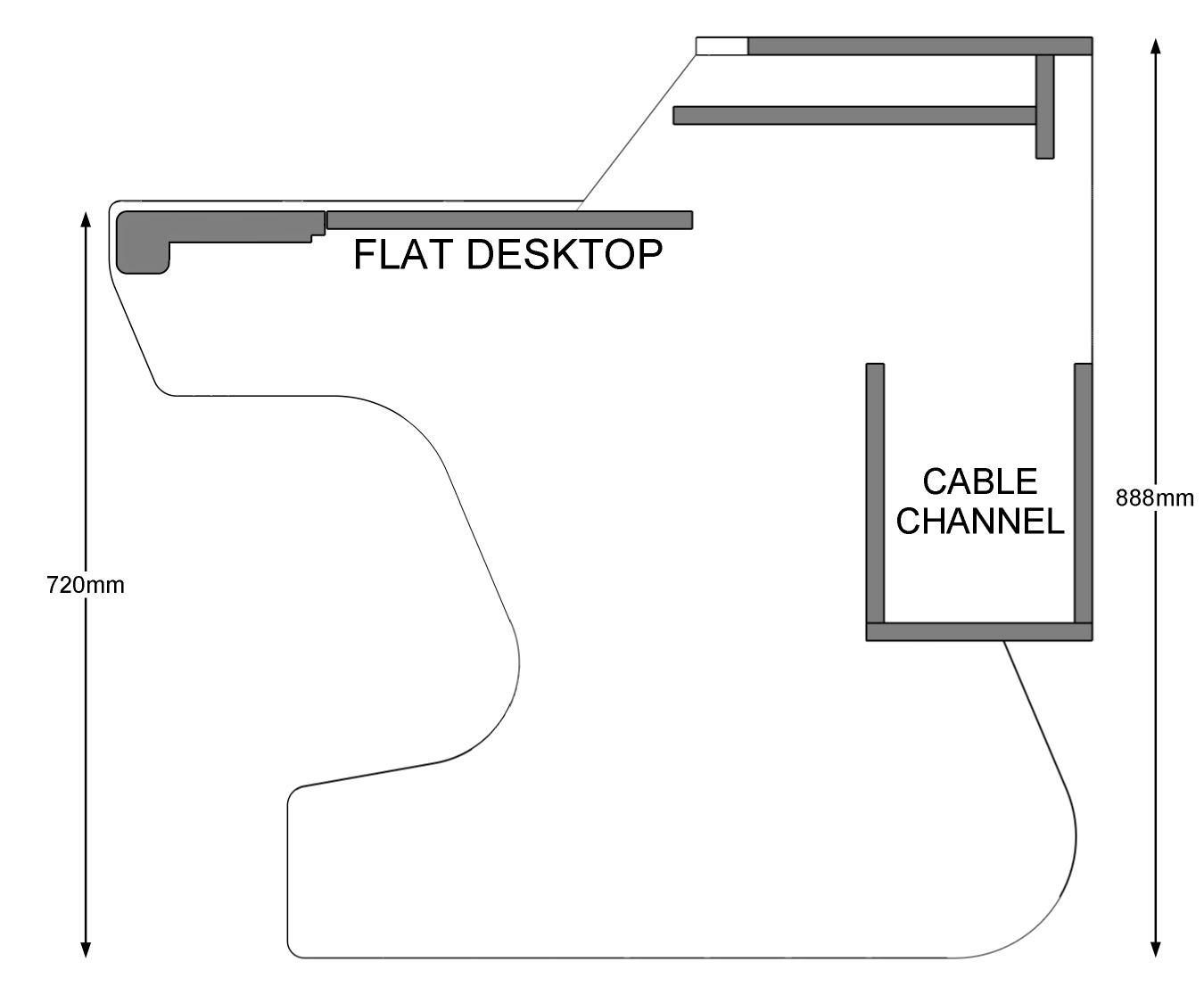

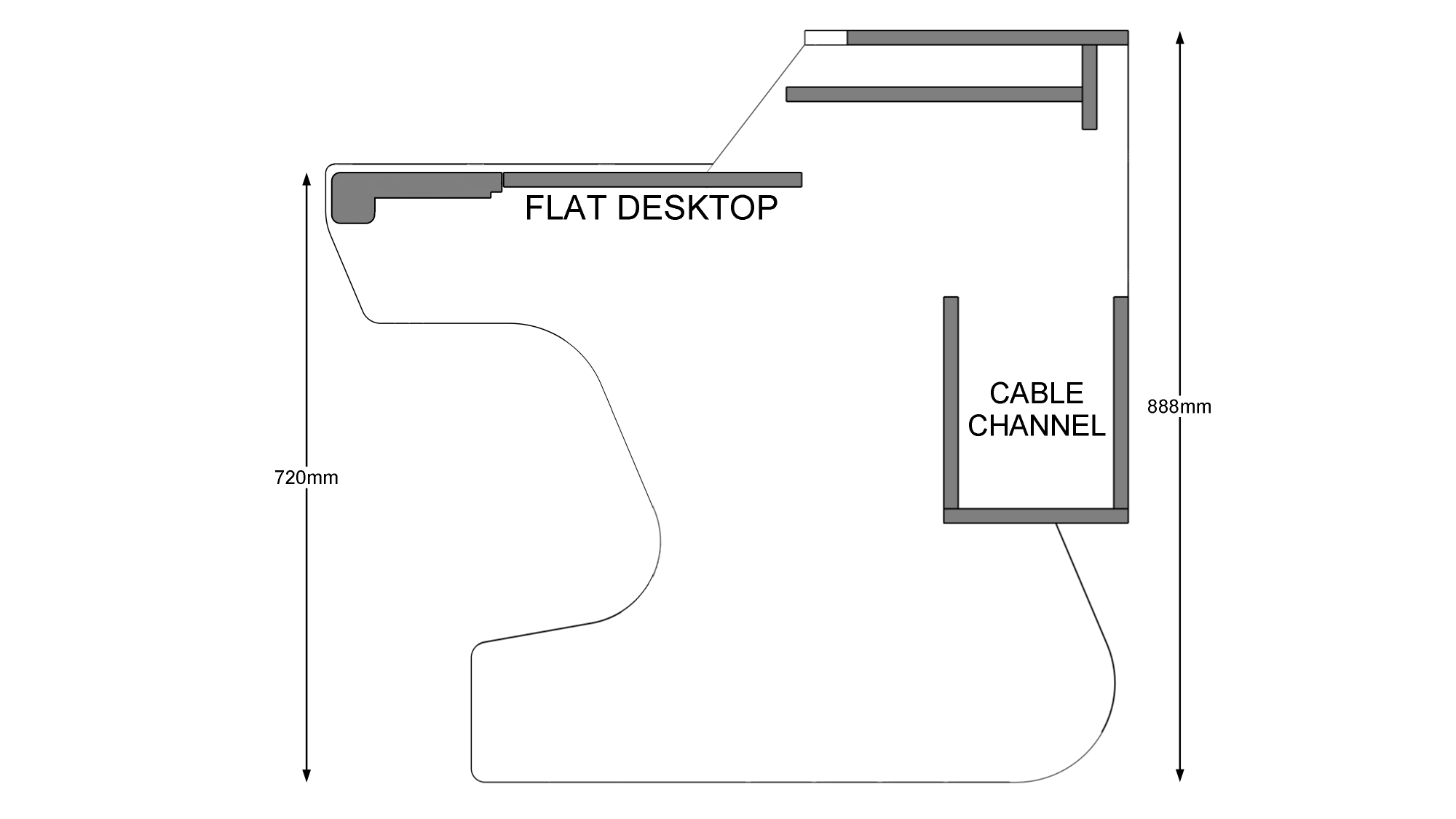

*The shelf is set flush to the padded armrest by default, making a continuous work surface.

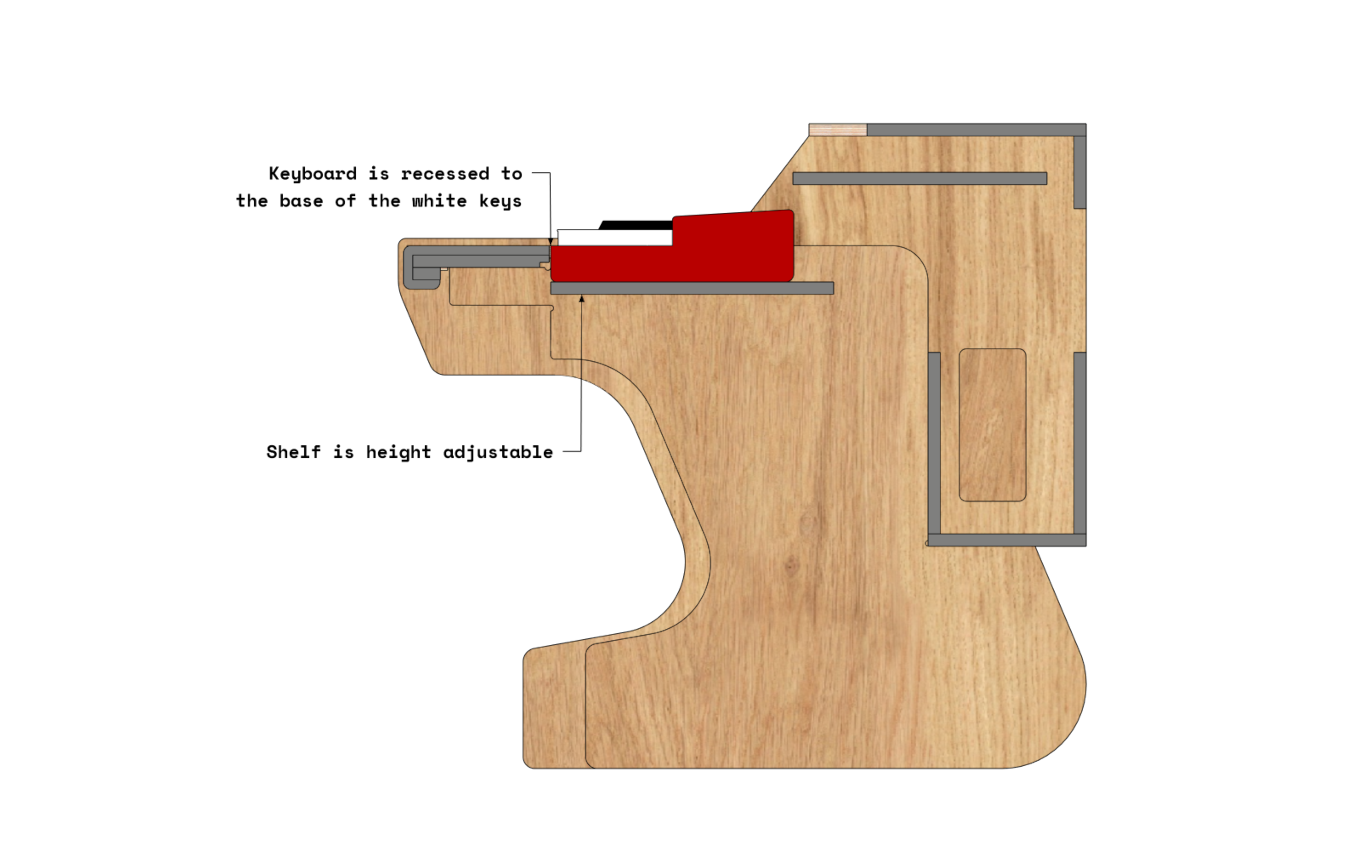

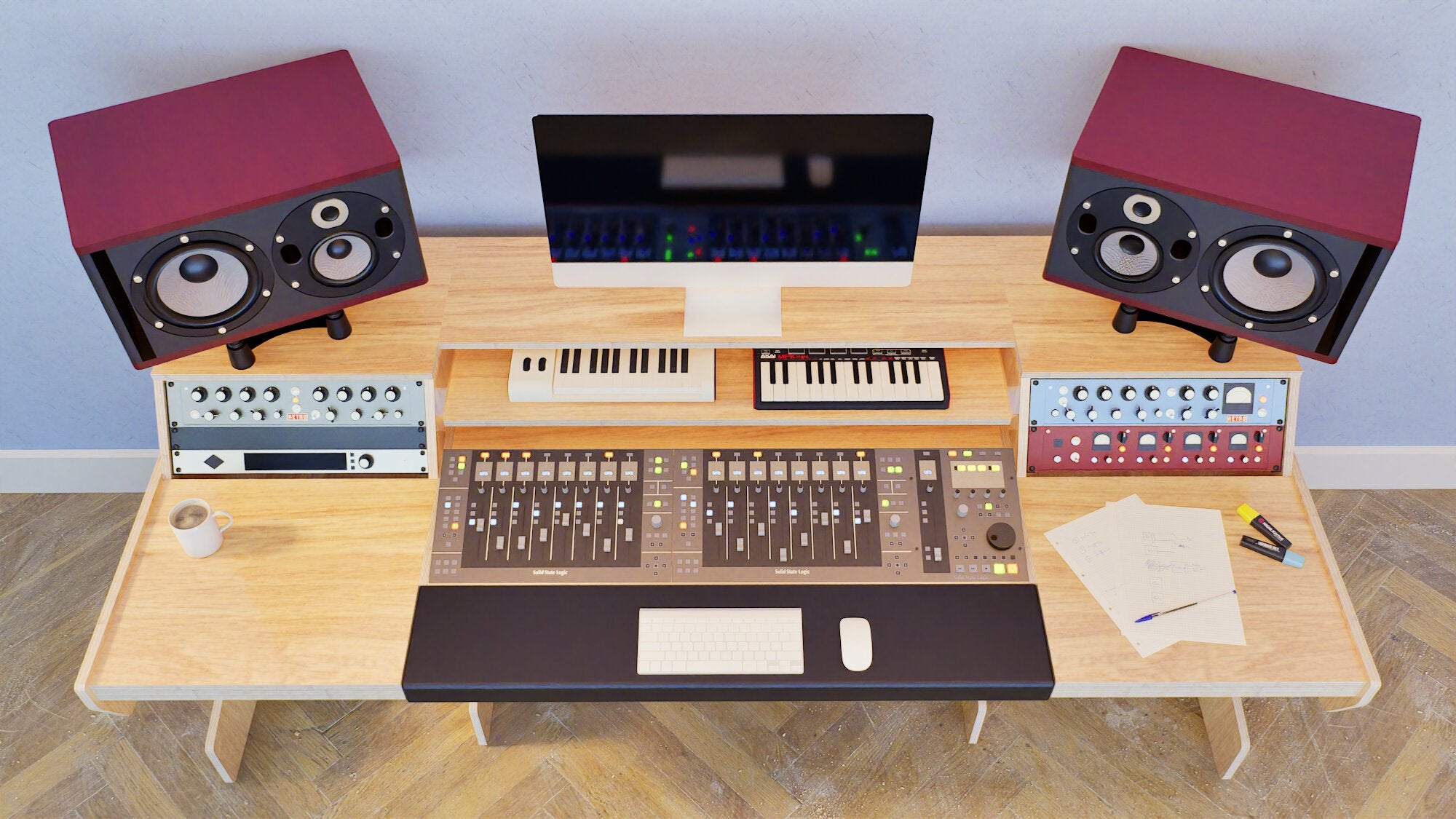

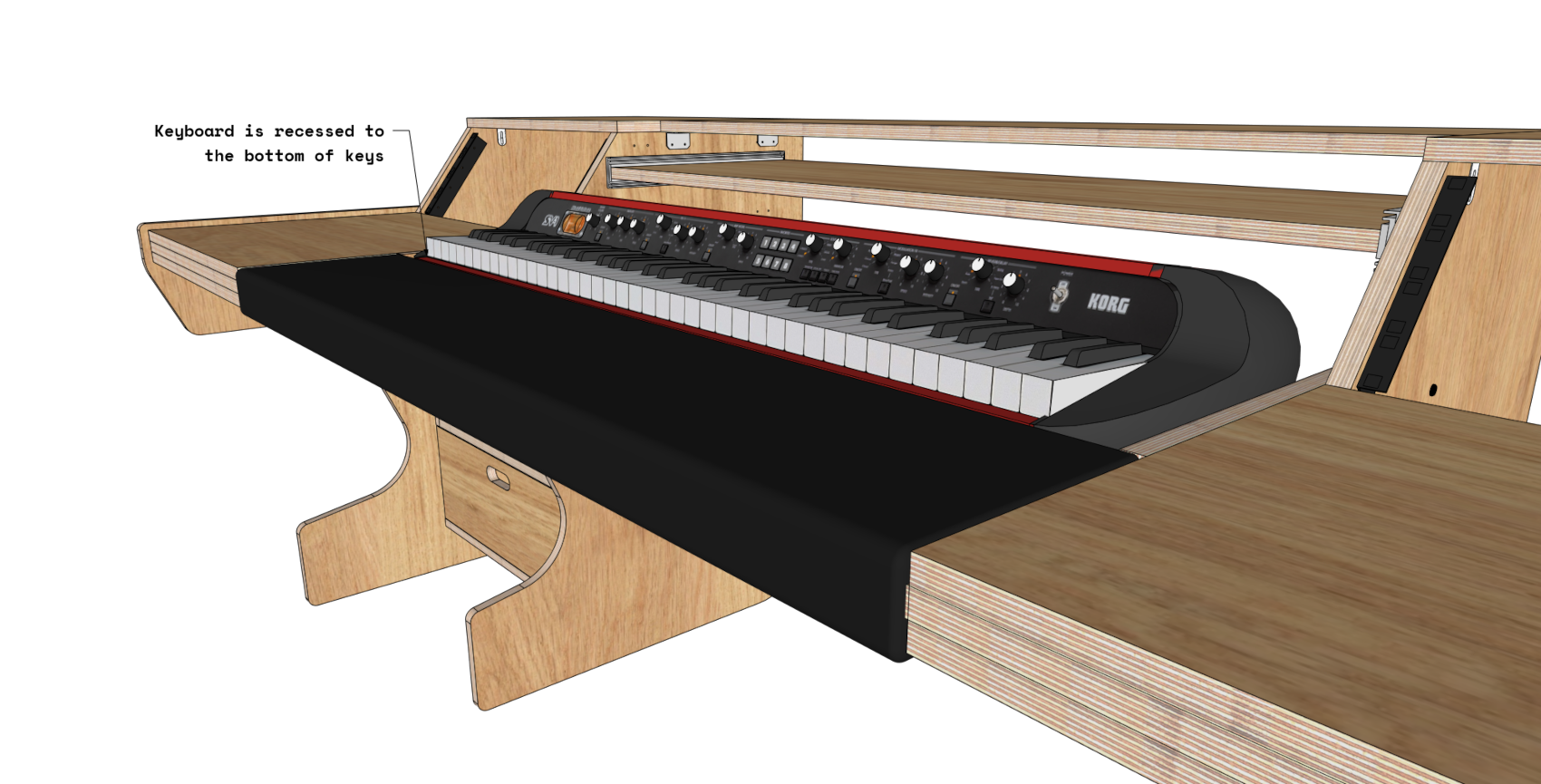

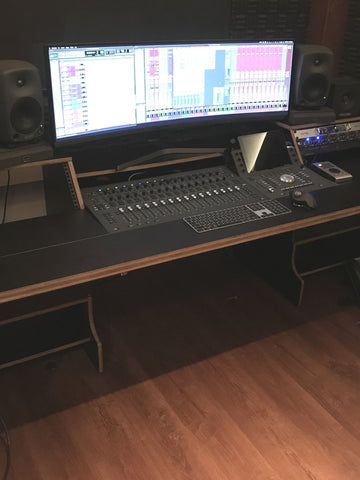

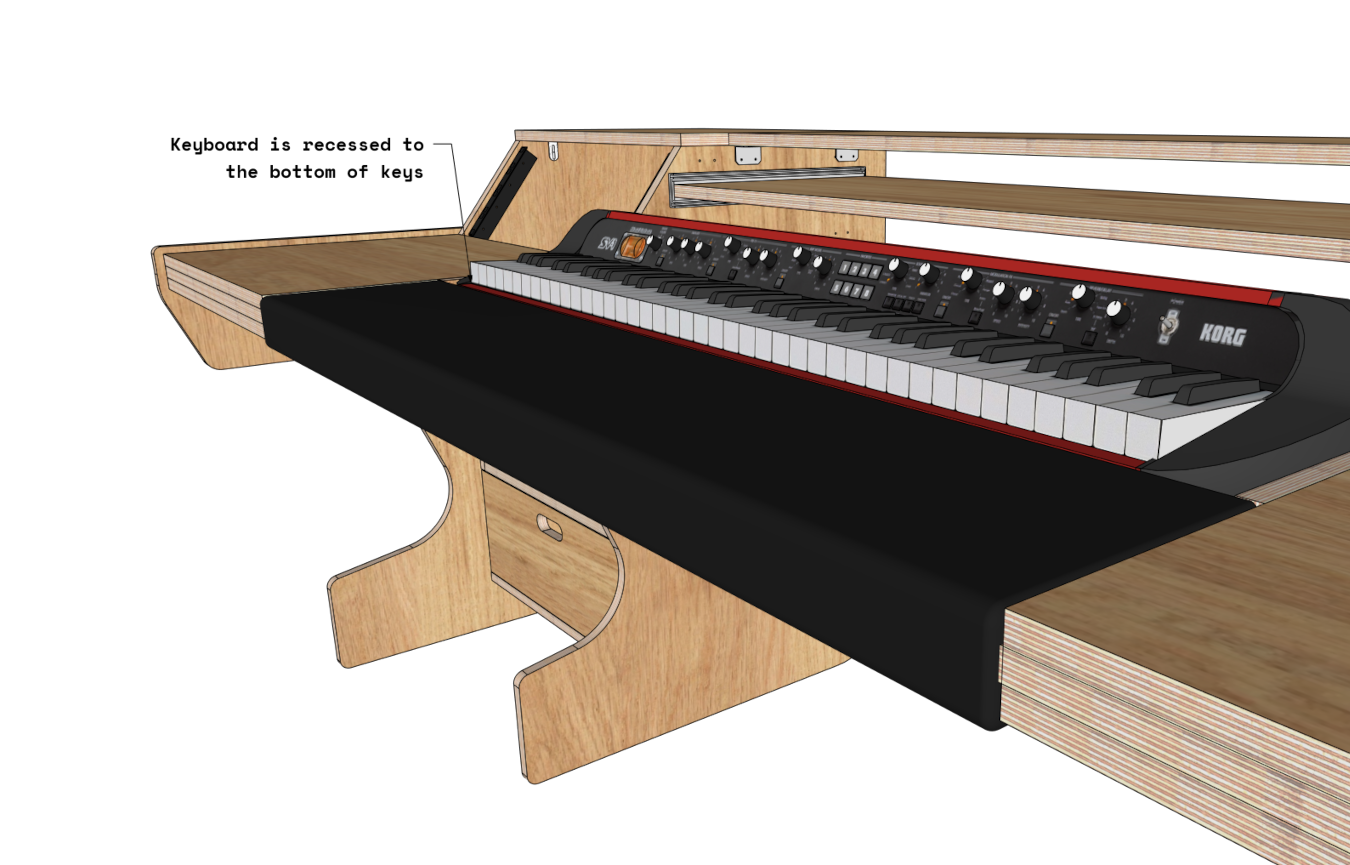

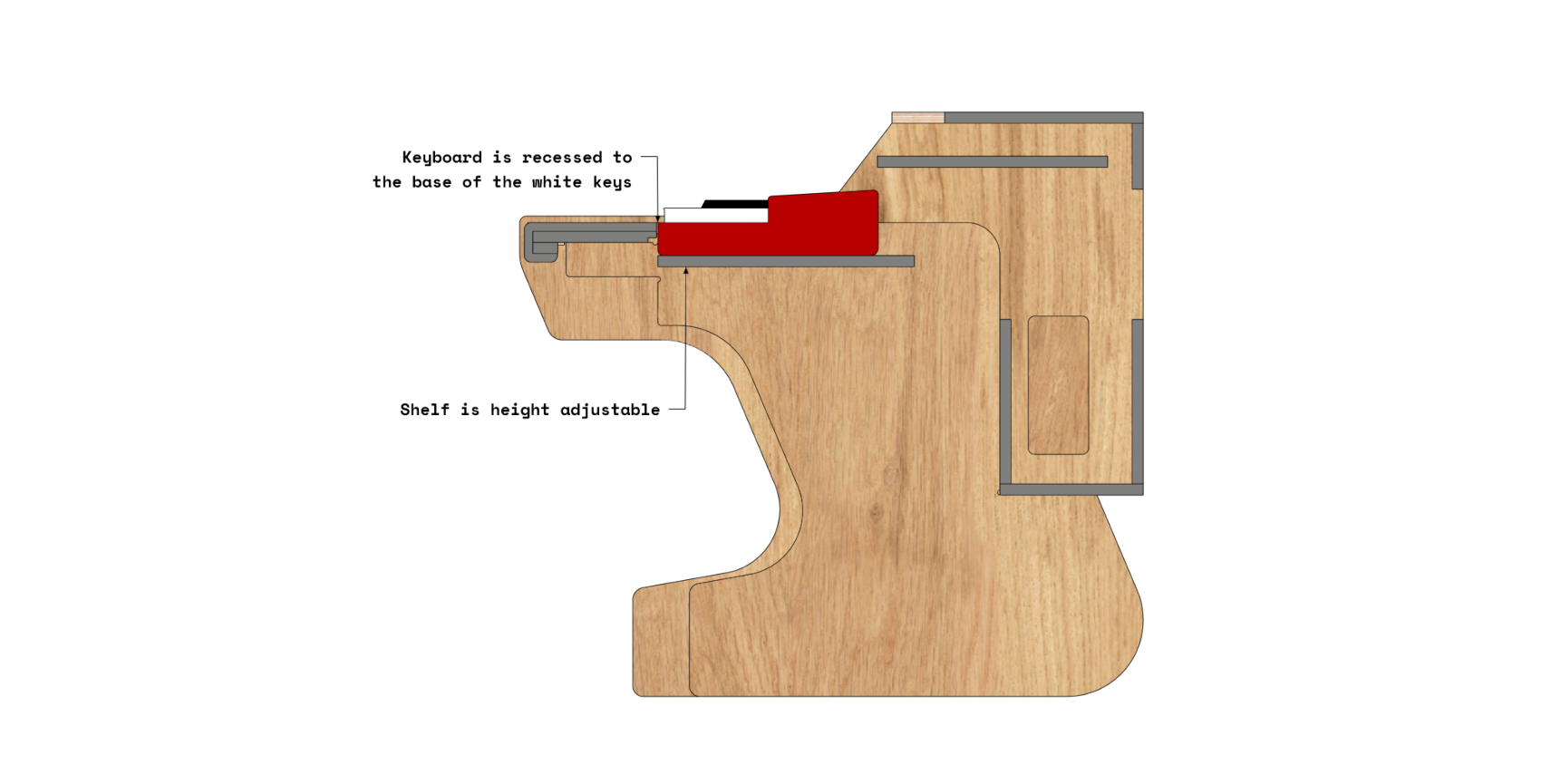

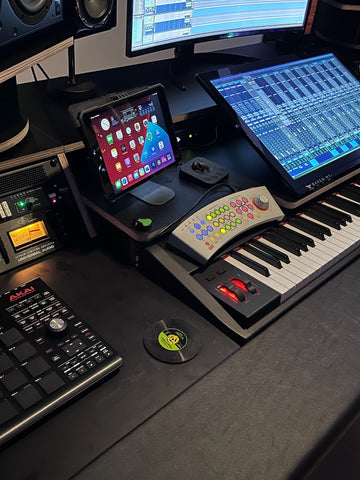

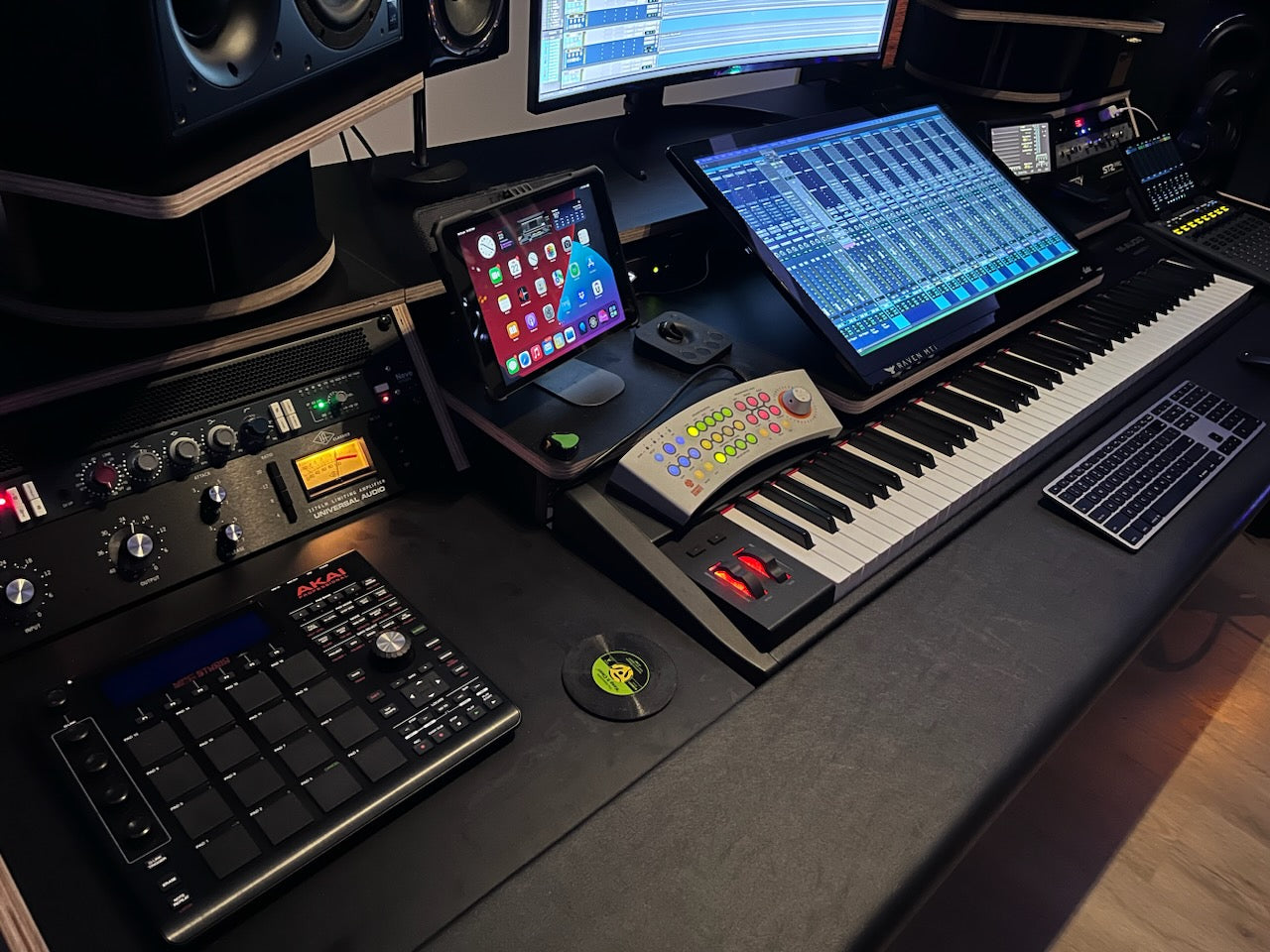

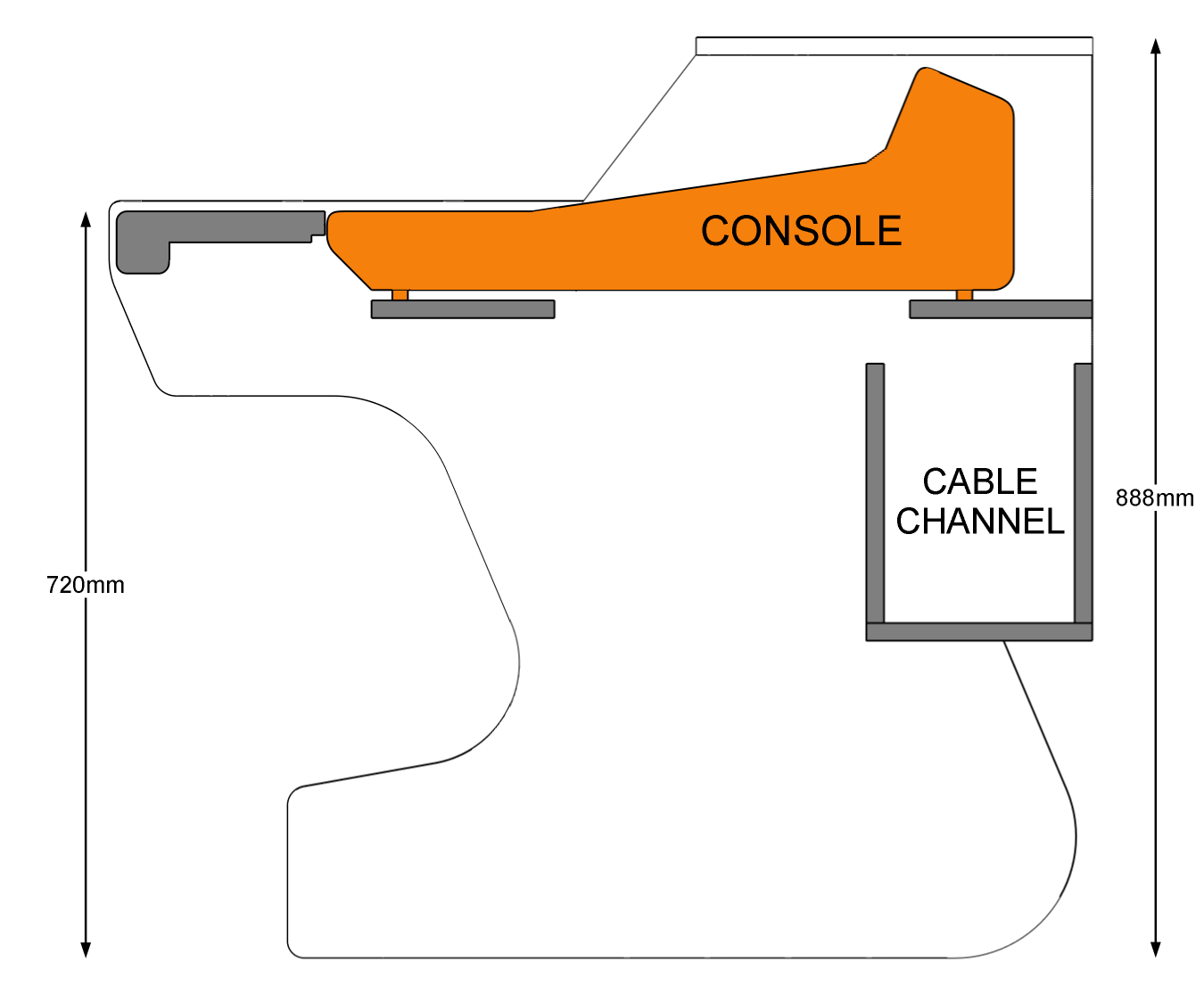

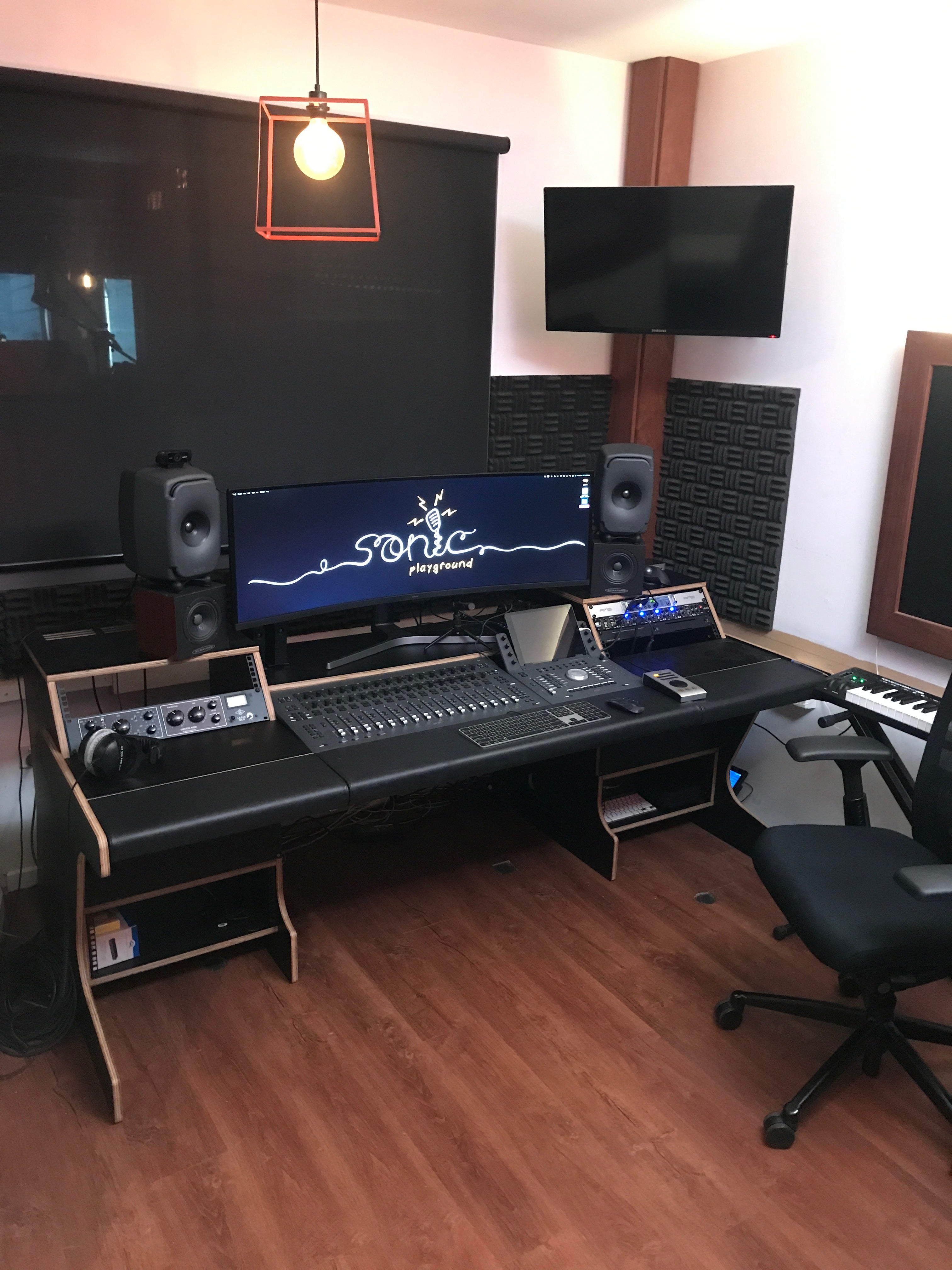

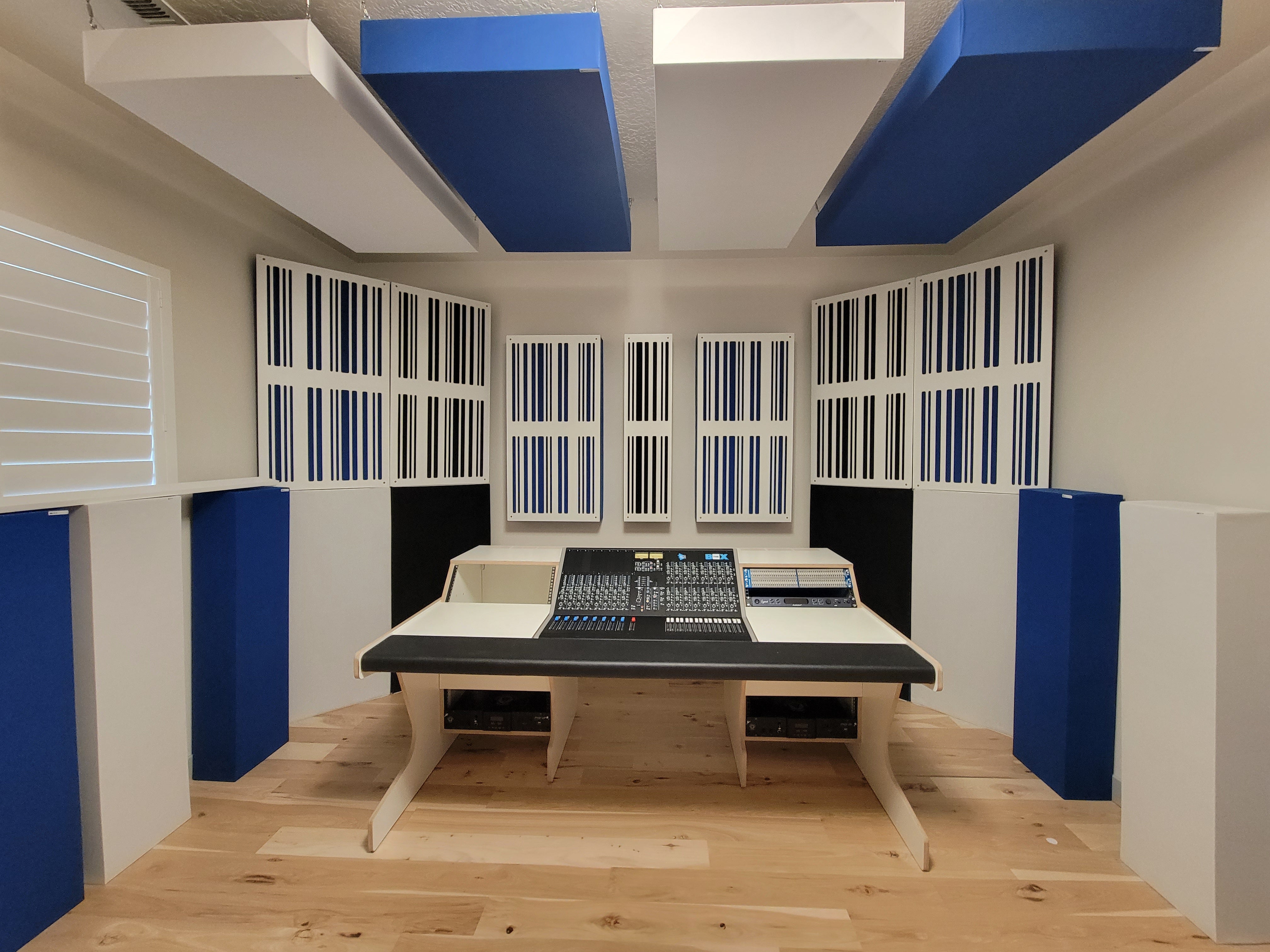

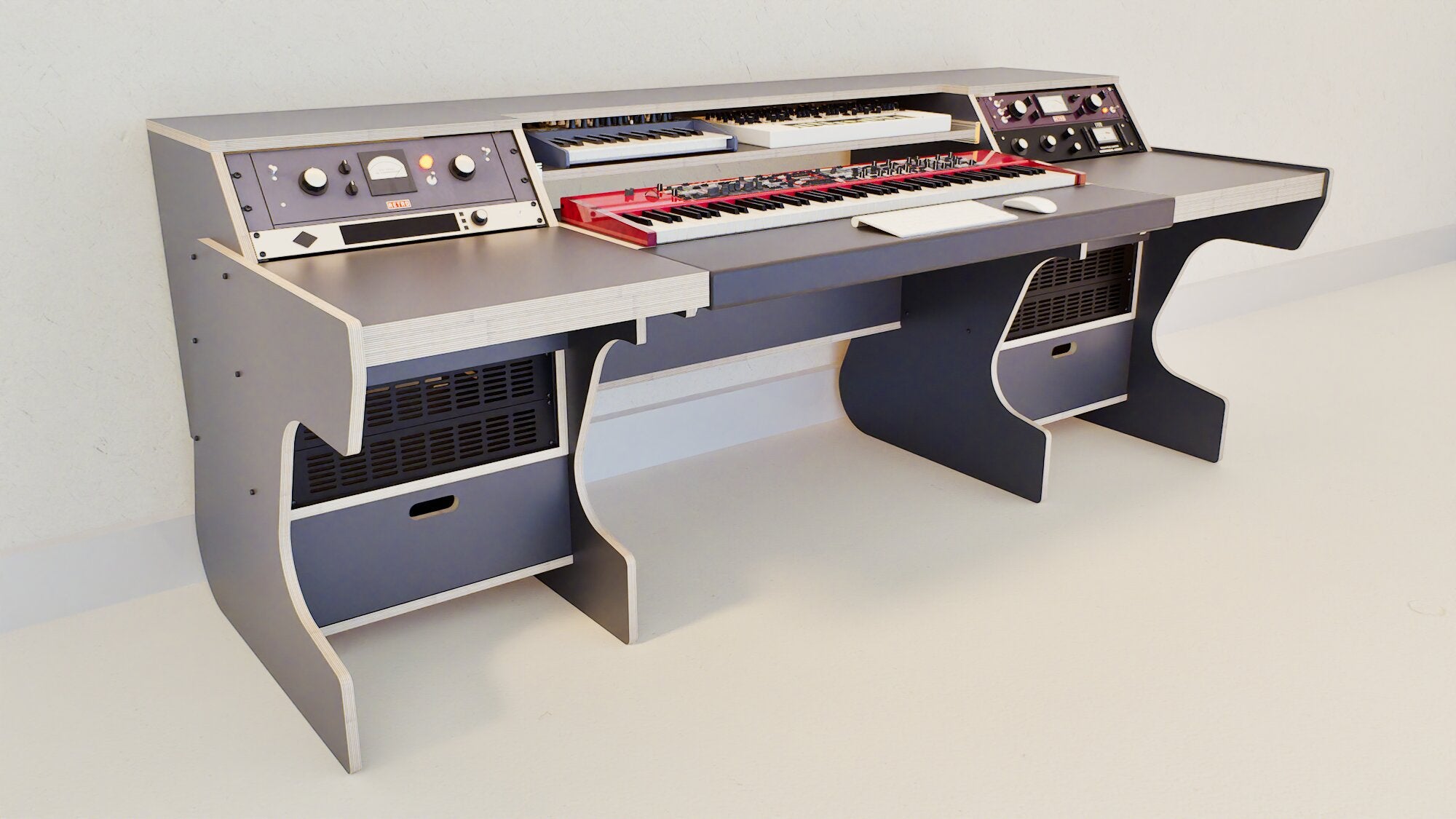

The primary equipment shelf is designed to 'sink' or recess your keyboard or console so that it's operating surface is set flush or near to flush with the desktop. There's an example in the image gallery in which the red keyboard is recessed to the bottom of it's white keys. In another example, an Avid S3 and Dock are recessed so they are flush with the desktop.

Upon placing your order, you may specify the depth of the recess you require.

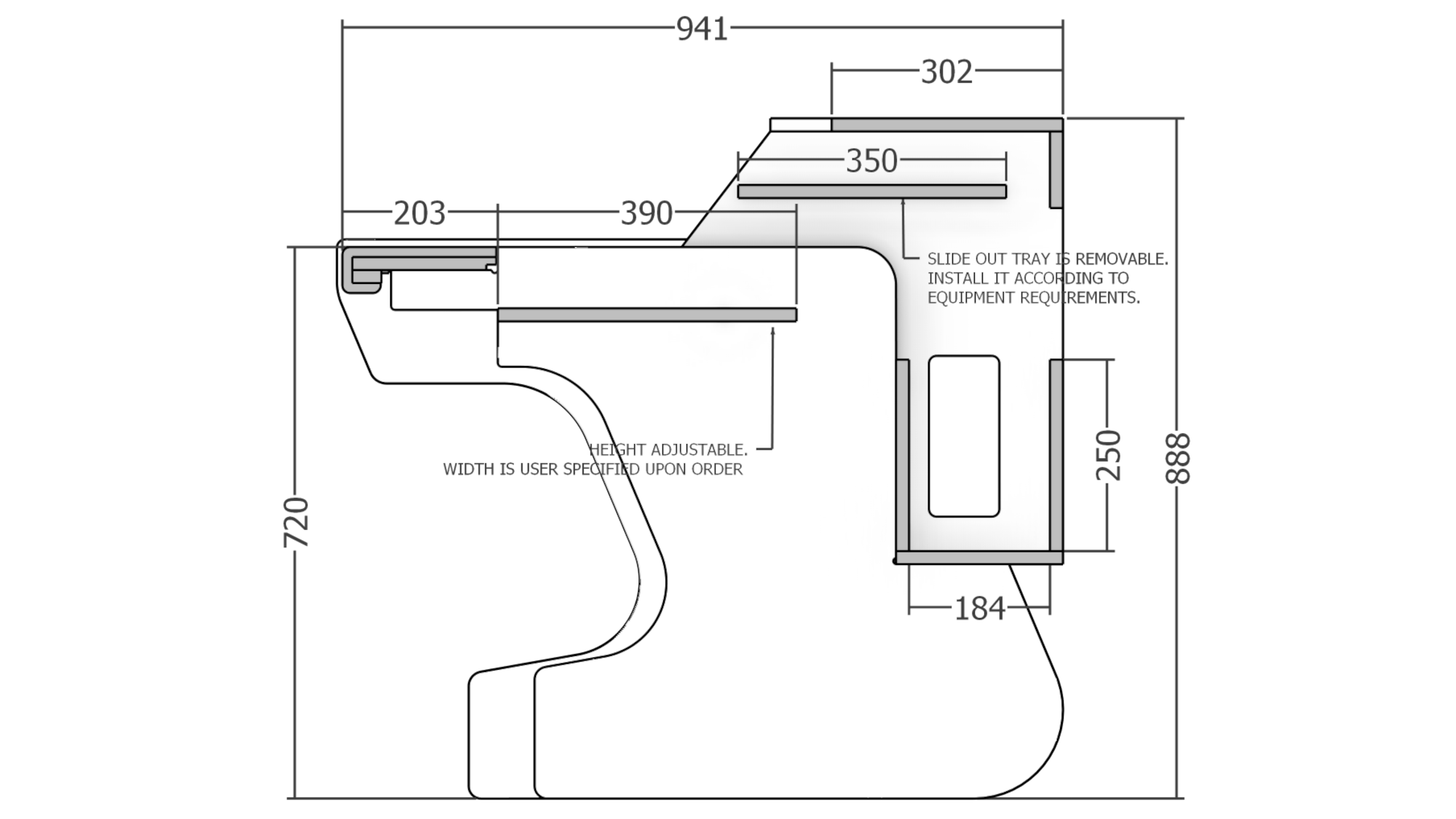

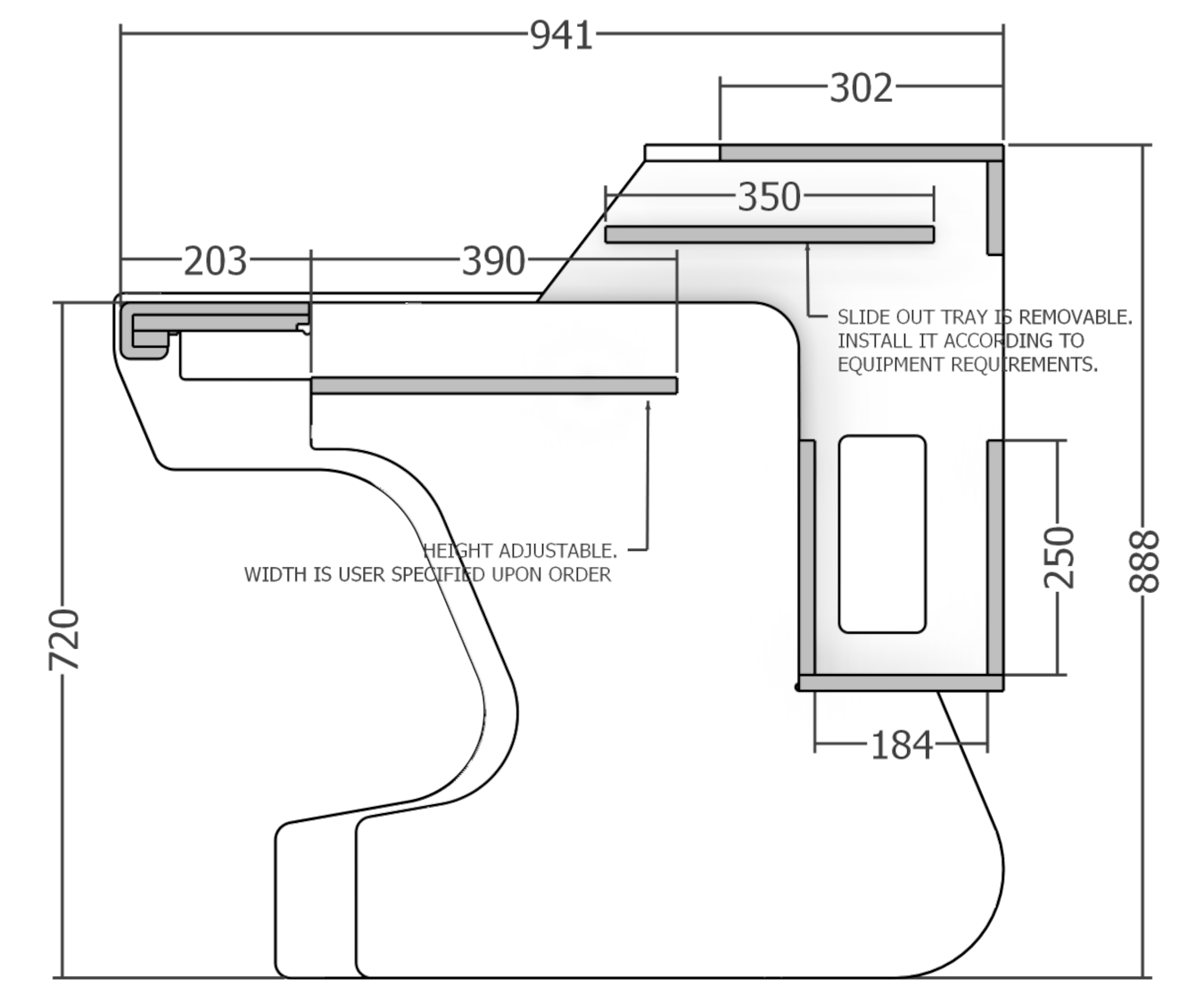

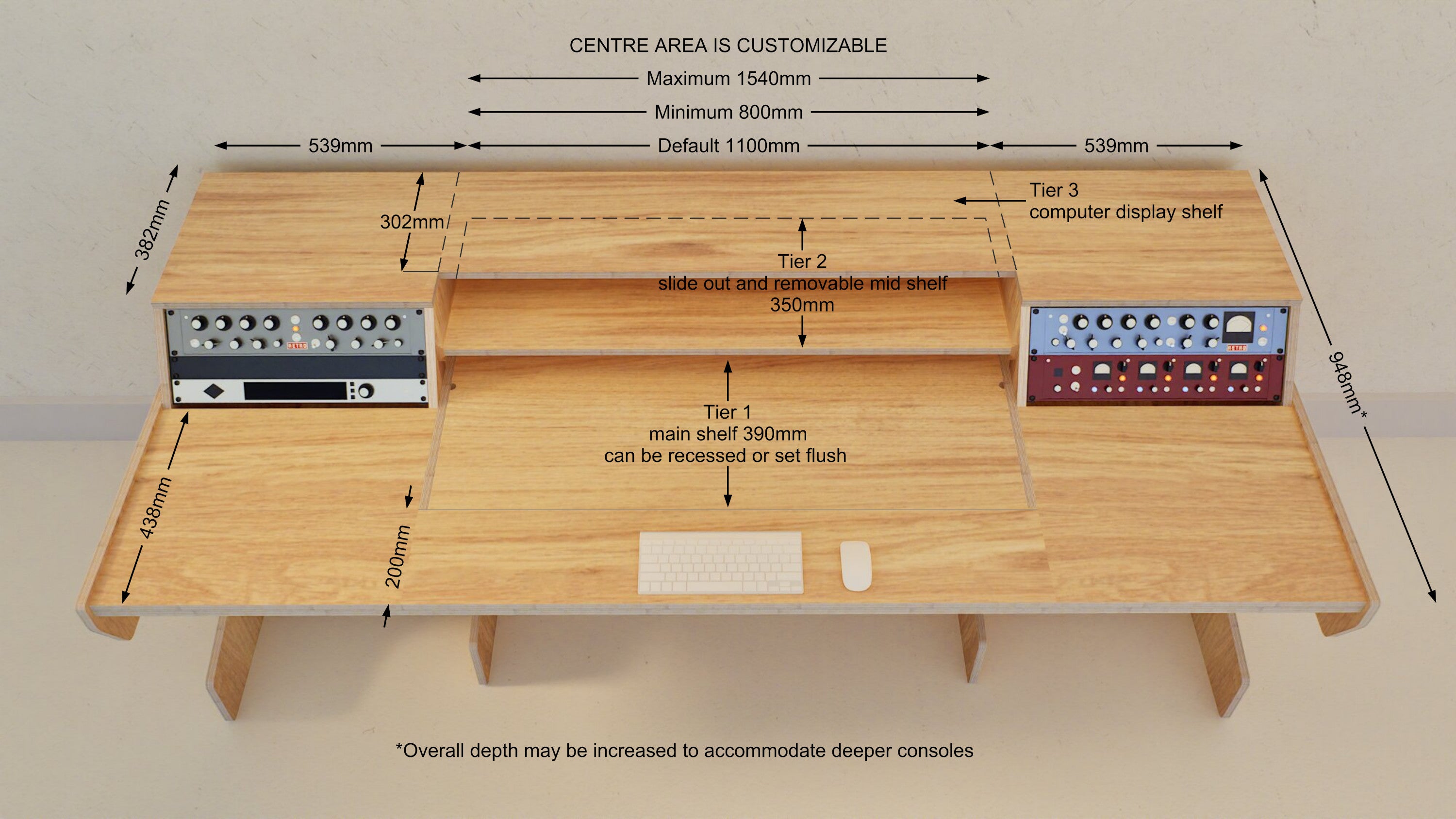

Centre Shelf Width

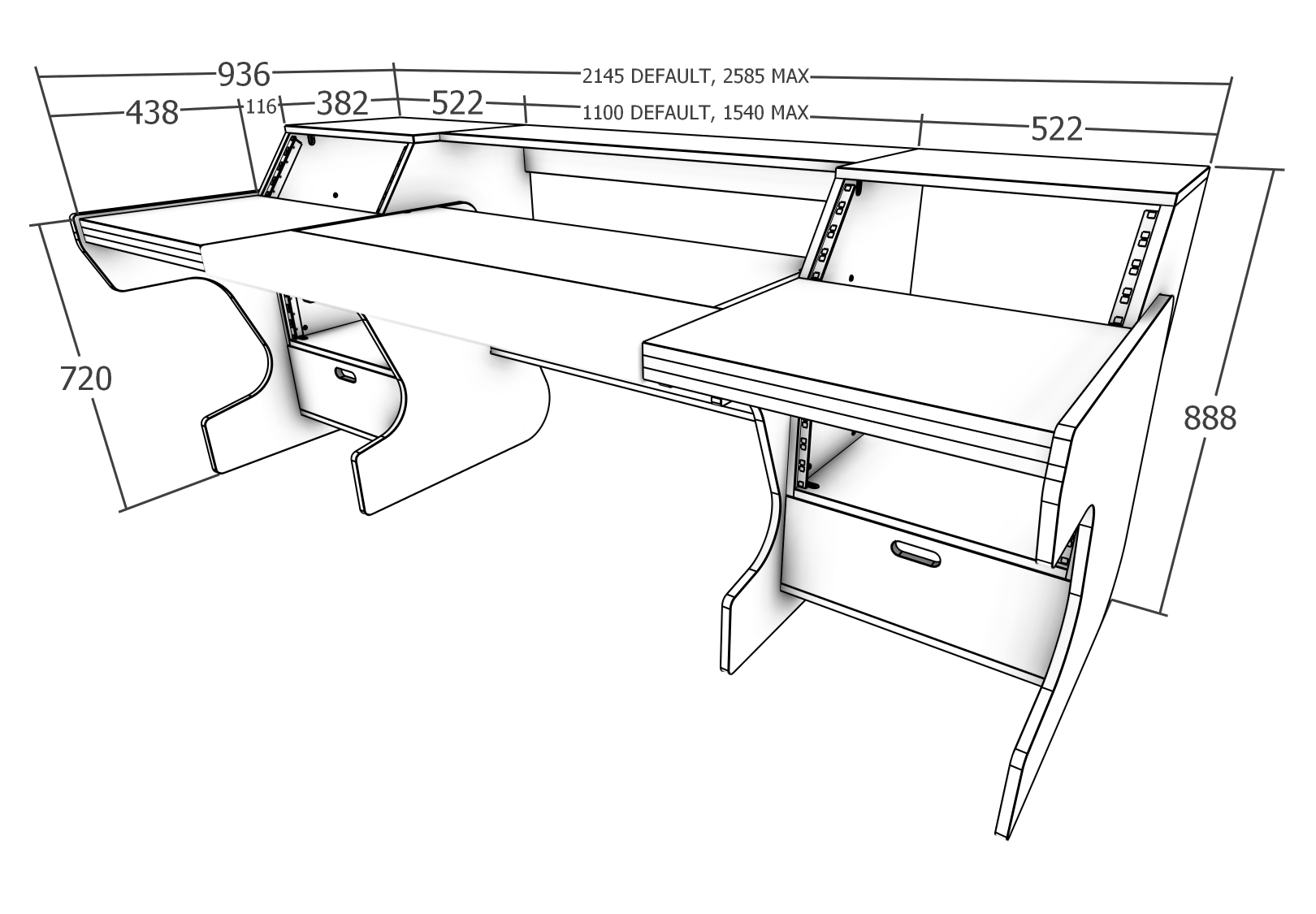

- Minimum width: 800mm (makes overall desk width 1879mm)

- Default width: 1100mm (makes overall desk width 2179mm)

- Maximum width 1540mm (makes overall desk width 2585mm)

Upon placing your order, you may specify any width in the range 800 to 1540mm

Please note! Specifying the width of the shelf, in turn, modifies the width of the computer display and mid level shelves and will ultimately change the desk's overall width.

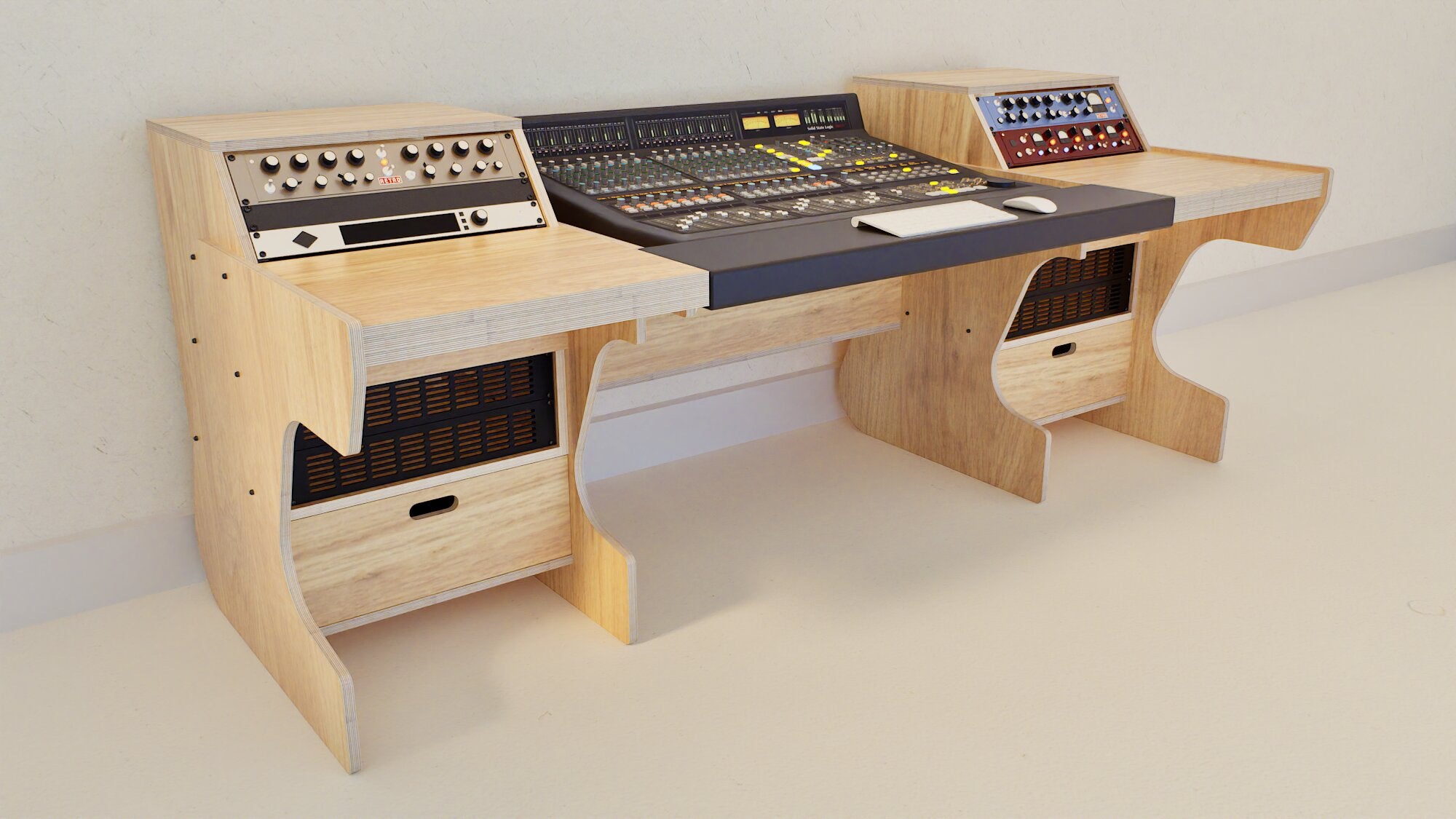

Console/Keyboard Shelf Depth

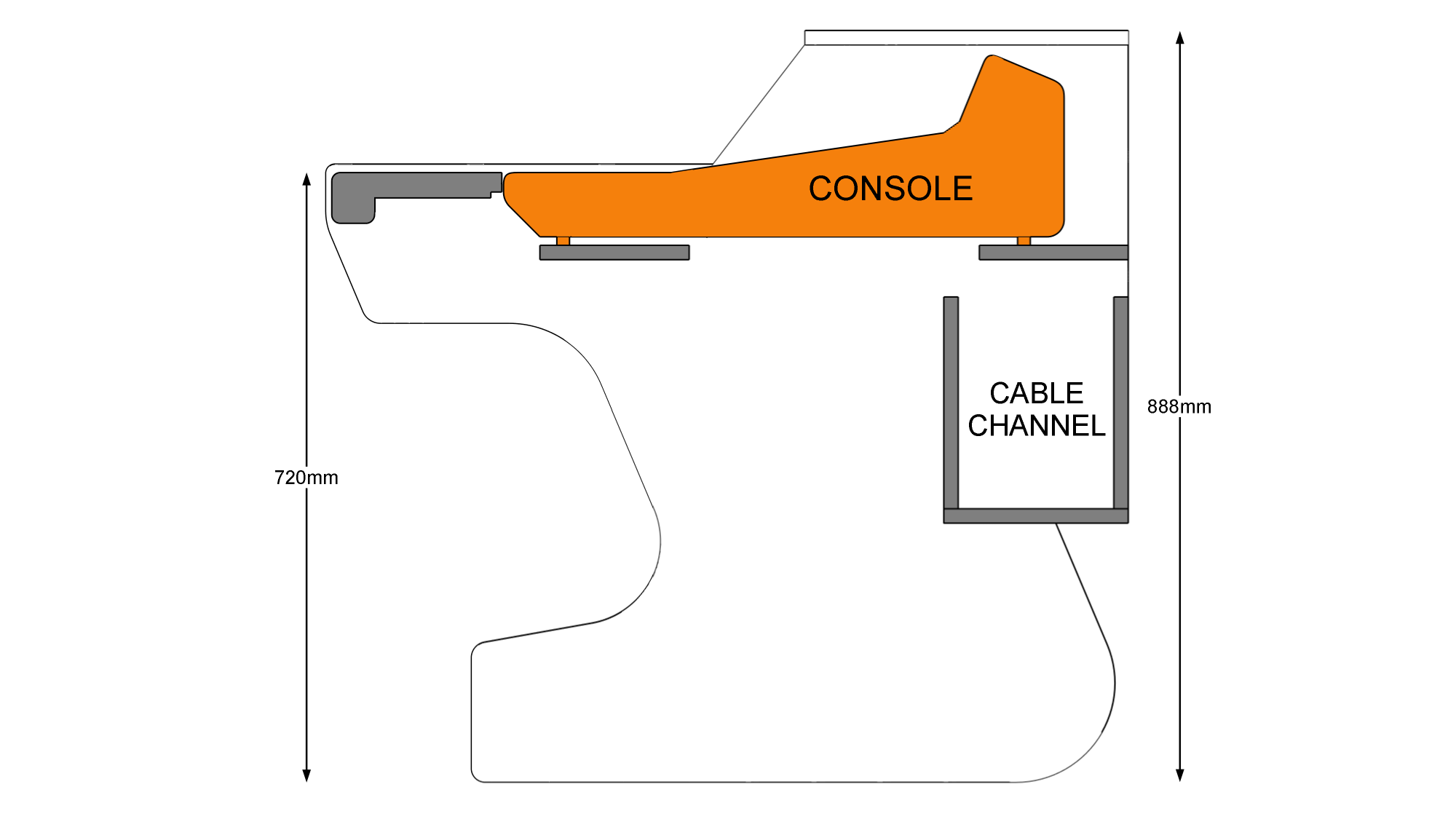

As measured from front to back is 390mm. If your console or keyboard is deeper, The shelf may be split into two pieces of 195mm depth. The two pieces are then set a distance from one another and the console spans the gap in between.

If you don't see your console in this list, please get in contact with us via the 'Enquire Now' link above and let us know how we can help.

Size Note:
In the case your console is deeper (front to back) than the desk's listed depth, the worktop will need to be increased to accommodate. This will, in turn, increase the overall depth of the desk. We usually recommend 50-100mm clearance between the rear of the console and the rear of the desk.

Allen & Heath SQ-5.
Allen & Heath SQ-6.
Allen & Heath SQ-7.
Allen & Heath Qu-24A.
Allen & Heath Qu-32.

API 1608mkii.
API The Box.
API The Box 2.

Audient ASP4816-HE

Avid Artist Series.
Avid C|24
Avid S1 plus Dock.
Avid S3 plus Dock.
Avid S4 3 Foot Base System.
Avid S4 4 Foot Base System.
Avid S6 3 Foot Base, 3 Modules Deep.
Avid S6 3 Foot Base, 4 Modules Deep.
Avid S6 4 Foot Base, 3 Modules Deep.
Avid S6 4 Foot Base, 4 Modules Deep.
Avid S6 5 Foot Base, 3 Modules Deep.
Avid S6 5 Foot Base, 4 Modules Deep.
Avid/Digidesign D-Command 24 fader.

Behringer X-Touch plus X-Touch extenders.

Blackmagic Design ATEM 1 M/E Advanced Panel 20
Blackmagic Design ATEM 1 M/E Advanced Panel 30
Blackmagic Design ATEM 2 M/E Advanced Panel 20
Blackmagic Design ATEM 2 M/E Advanced Panel 30
Blackmagic Design ATEM 2 M/E Advanced Panel 40
Blackmagic Design ATEM 4 M/E Advanced Panel 40

Calrec Argo M
Calrec Brio 12
Calrec Brio 36 Duet
Calrec Brio 36 Duet Medley

Icon QCon Pro X plus QCon Pro XS extenders.
Icon QCon Pro G2 plus QCon EX G2 extenders.
Icon V1-M plus V1-X extenders.

Neve AMS 8424.
Neve BCM10/2 Mk2.
Neve Genesys G48.
Neve Genesys G32.
Neve Genesys G16.

Presonus Studio Live Series 3, 32S.
Presonus Studio Live Series 3, 32SC.
Presonus Studio Live Series 3, 32SX.
Presonus Studio Live Series 3, 64S.

Ross Video Touch Drive TD1
Ross Video Touch Drive TD1C
Ross Video Touch Drive TD2
Ross Video Touch Drive TD2S
Ross Video Touch Drive TD3
Ross Video Touch Drive TD3S
Ross Video Touch Drive TD4

SSL AWS9 series.
SSL Delta.
SSL Origin.
SSL Matrix (original).
SSL Matrix 2 Delta.
SSL Nucleus (original).
SSL Nucleus 2.
SSL UF8 x3.
SSL XL-Desk.

Toft ATB 8T.
Toft ATB 16.
Toft ATB 24.
Toft ATB 32.

Trident 68 16 Channel.
Trident 68 24 Channel.
Trident 78 8 Channel.
Trident 78 16 Channel.
Trident 78 24 Channel.
Trident 78 32 Channel.
Trident 88 16 Channel.
Trident 88 24 Channel.
Trident 88 32 Channel.

Yamaha DM3-D.
Yamaha DM3 Standard.
Yamaha DM7.
Yamaha DM7 Compact.
Yamaha DM7-Ex.
Yamaha DM7-Ex Compact.
Yamaha MGP32X.
Yamaha MGP24X.
Yamaha MGP16X.
Yamaha MGP12X.

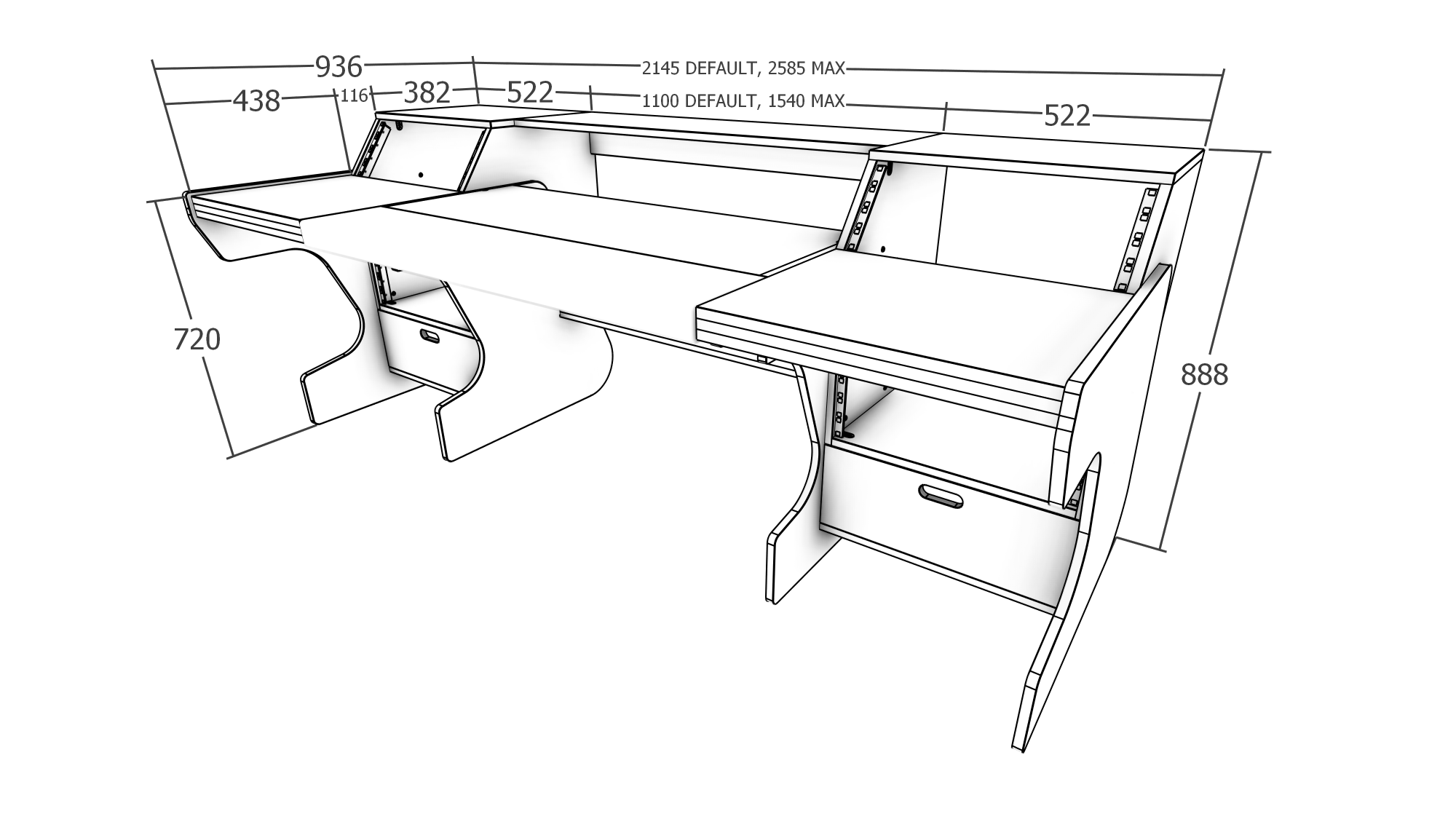

- Width customization upon order:
Overall width range 1879mm (minimum) to 2585mm (maximum)

- 4RU rack rail to font of main and lower cabinet racks

- A/V and 19" outboard rack equipment, other electronics, signal connection plates, power and cabling

- Rack cage nuts and bolts

- Speaker stands and vented rack plates

- Flat-packed in cartons for on-site user assembly

- Factory assembled and delivered as a completed unit

- Collect assembled or partially assembled from our workshop:
392 Victoria Street, Brunswick 3058, VIC
