Stage Management Console 1A

Name: Stage Management Console 1A
Brand: Fusion Studio Works
SKU: FSW-SMC1A-BK
Price: 2949.0 AUD
Availability: InStock

$2,949.00

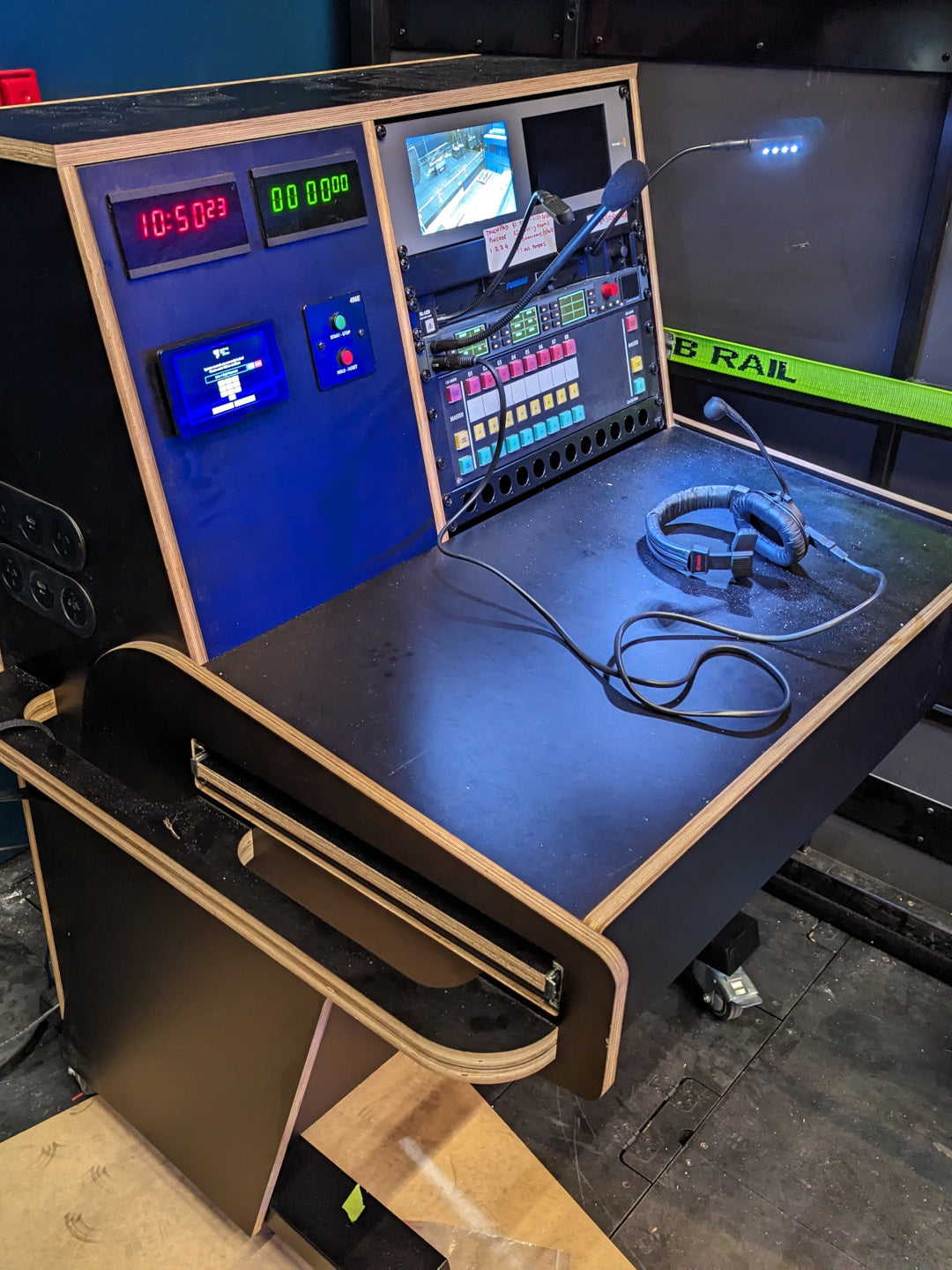

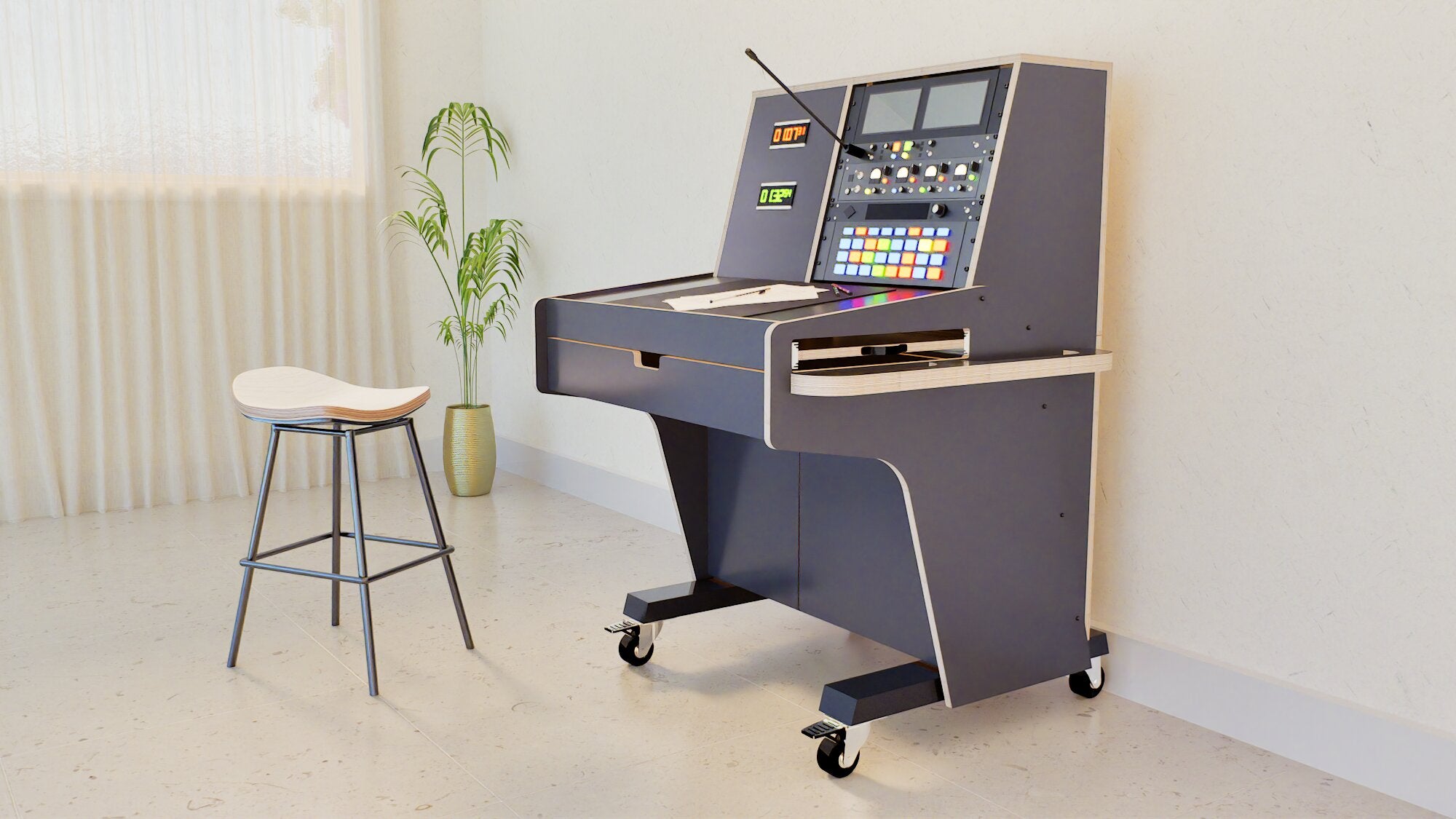

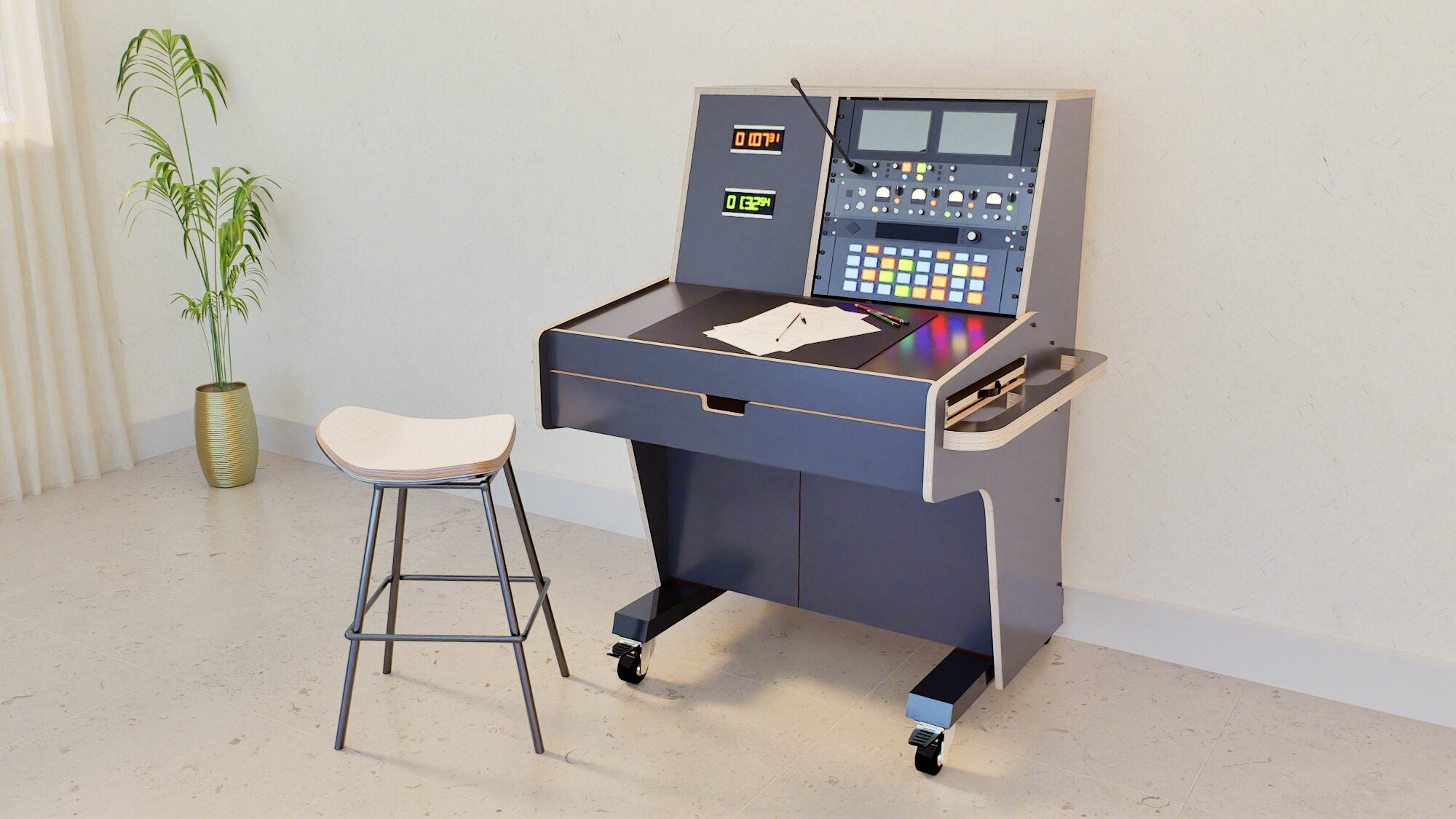

The central communications console for the stage manager of a theatre production. Load it with 19" rack communications and video monitoring gear.

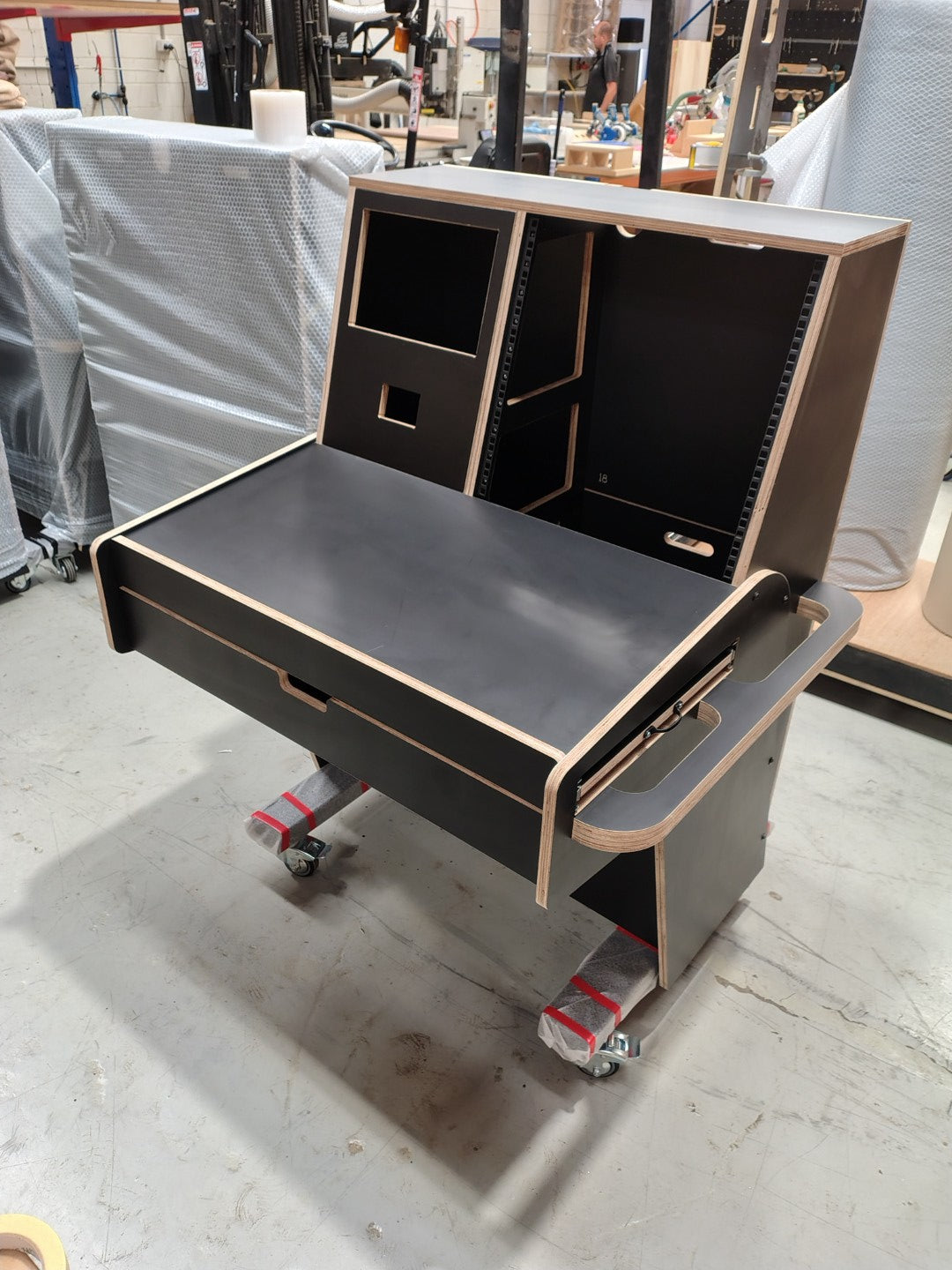

The upper body houses 10 rack units above the worktop. To the left of the rack is a removable timber plate which is machine cut upon order to accommodate audio visual equipment specific to your needs.

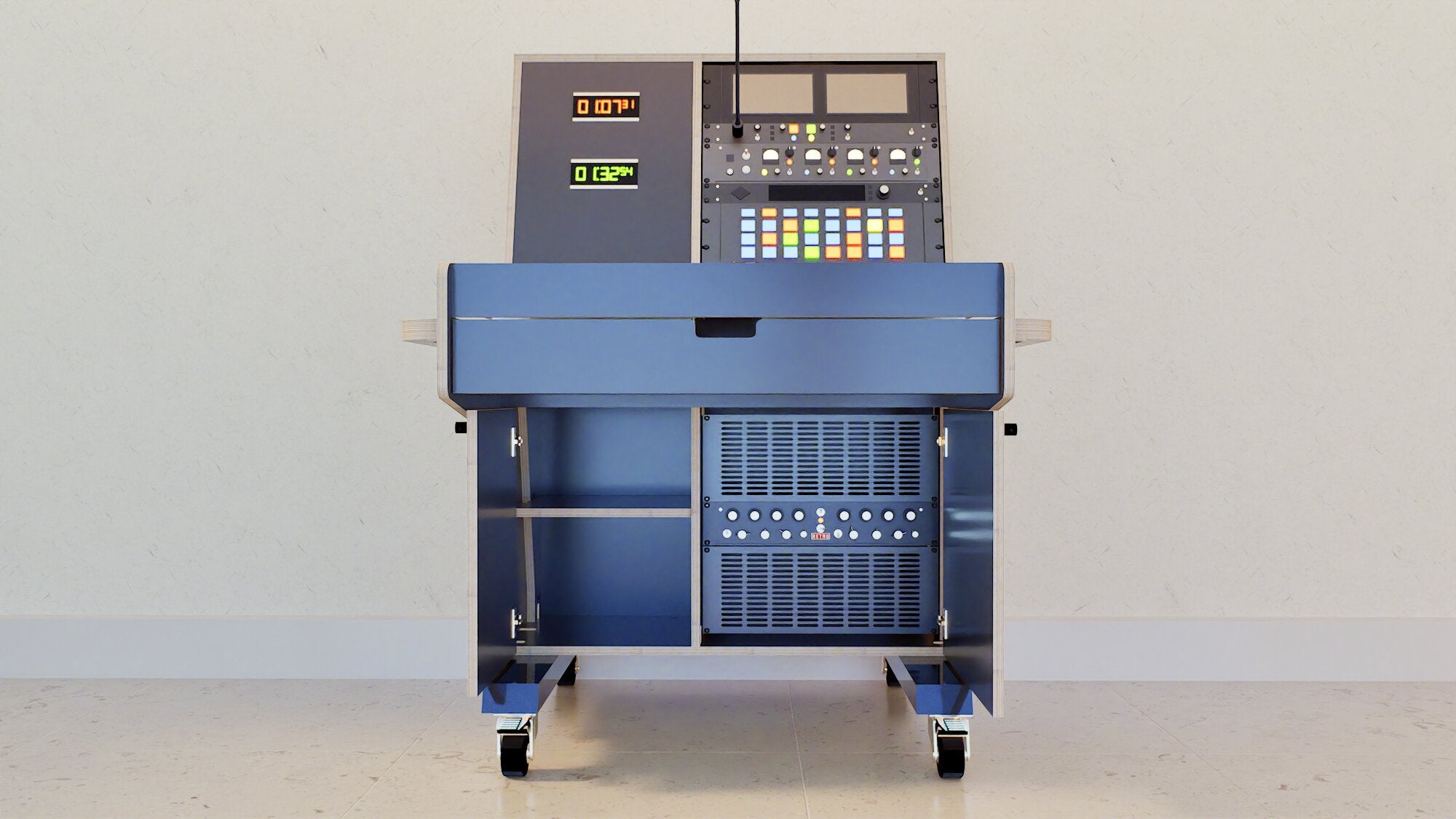

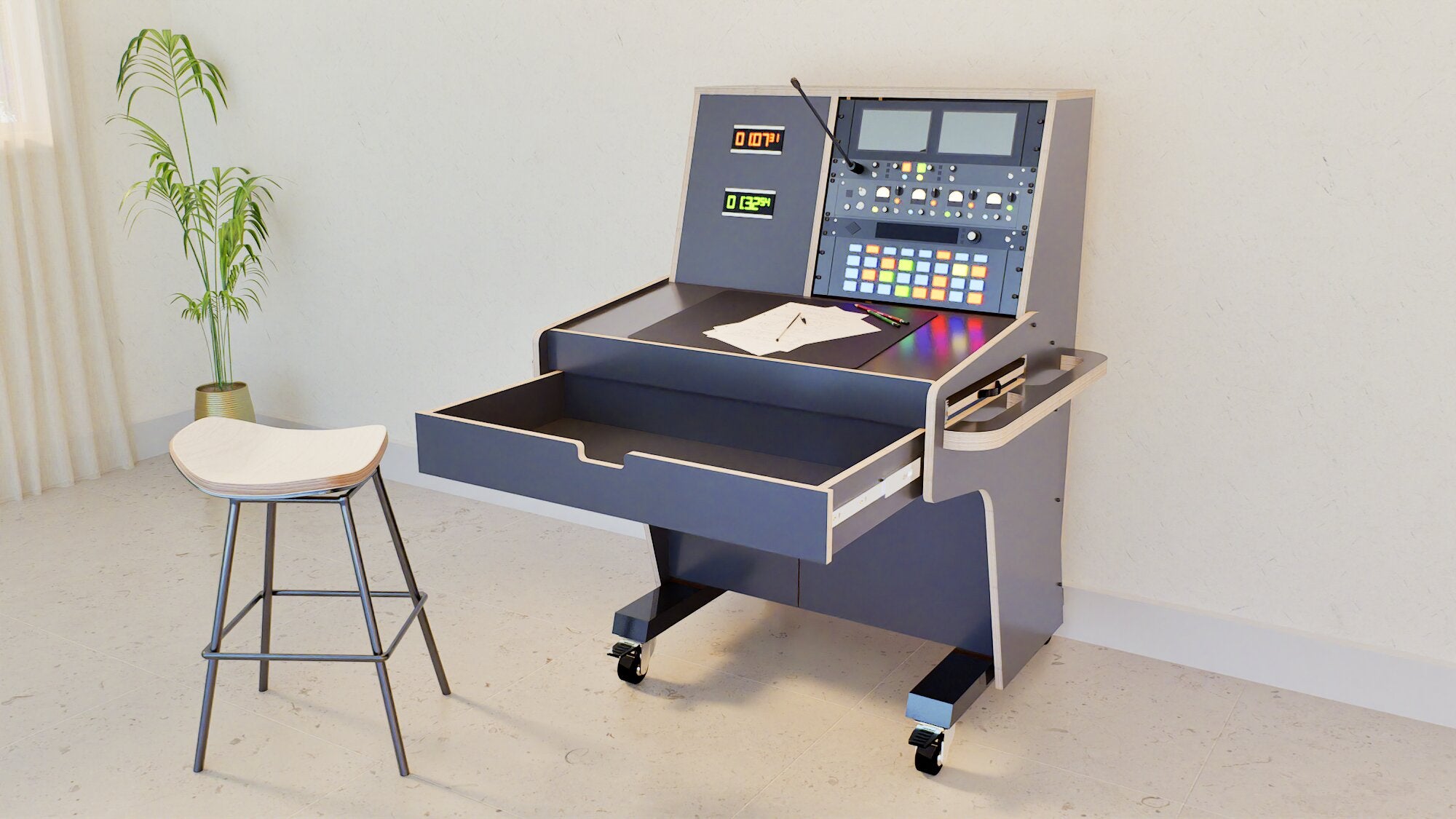

The worktop is large enough for A2 size running sheets. You'll find a large drawer under the worktop and a double door cabinet in the lower body which can house another 10 rack units of 19" equipment if required.

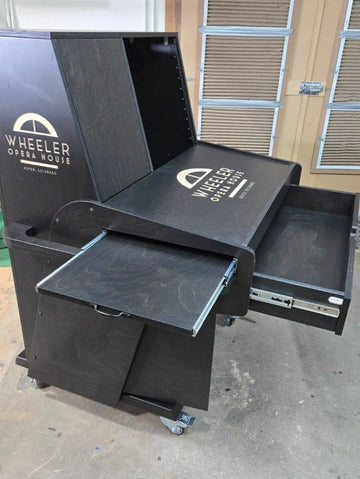

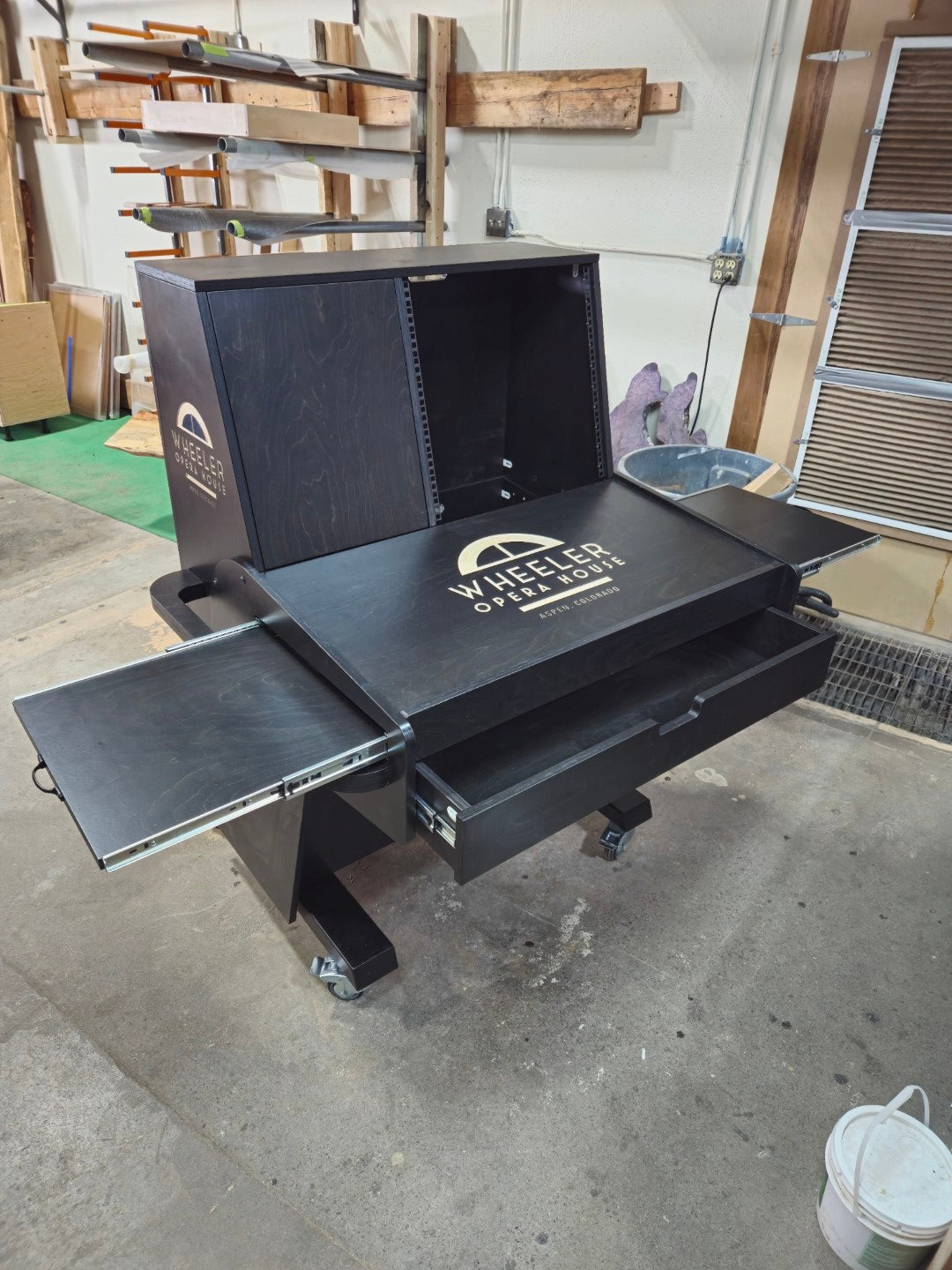

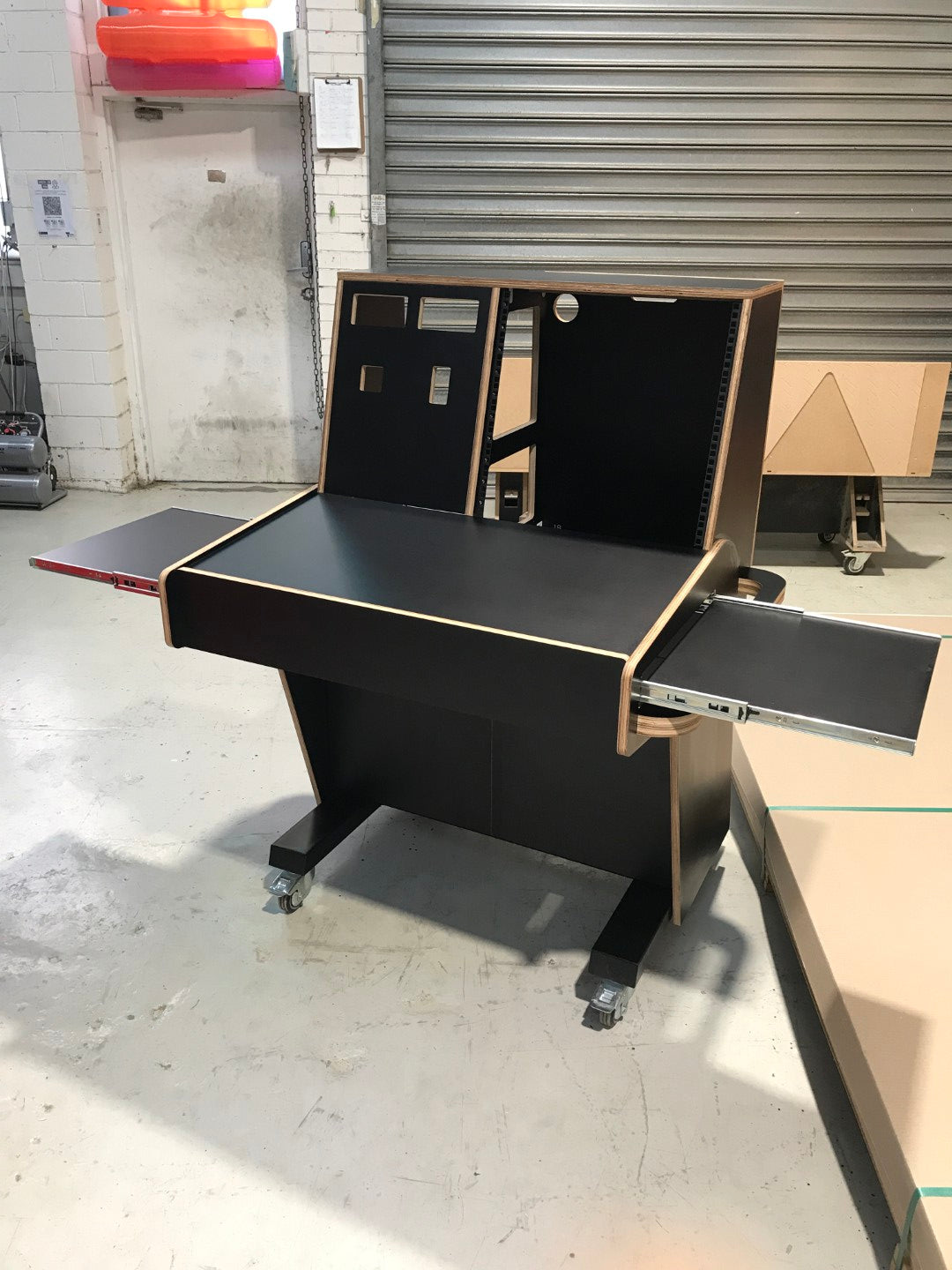

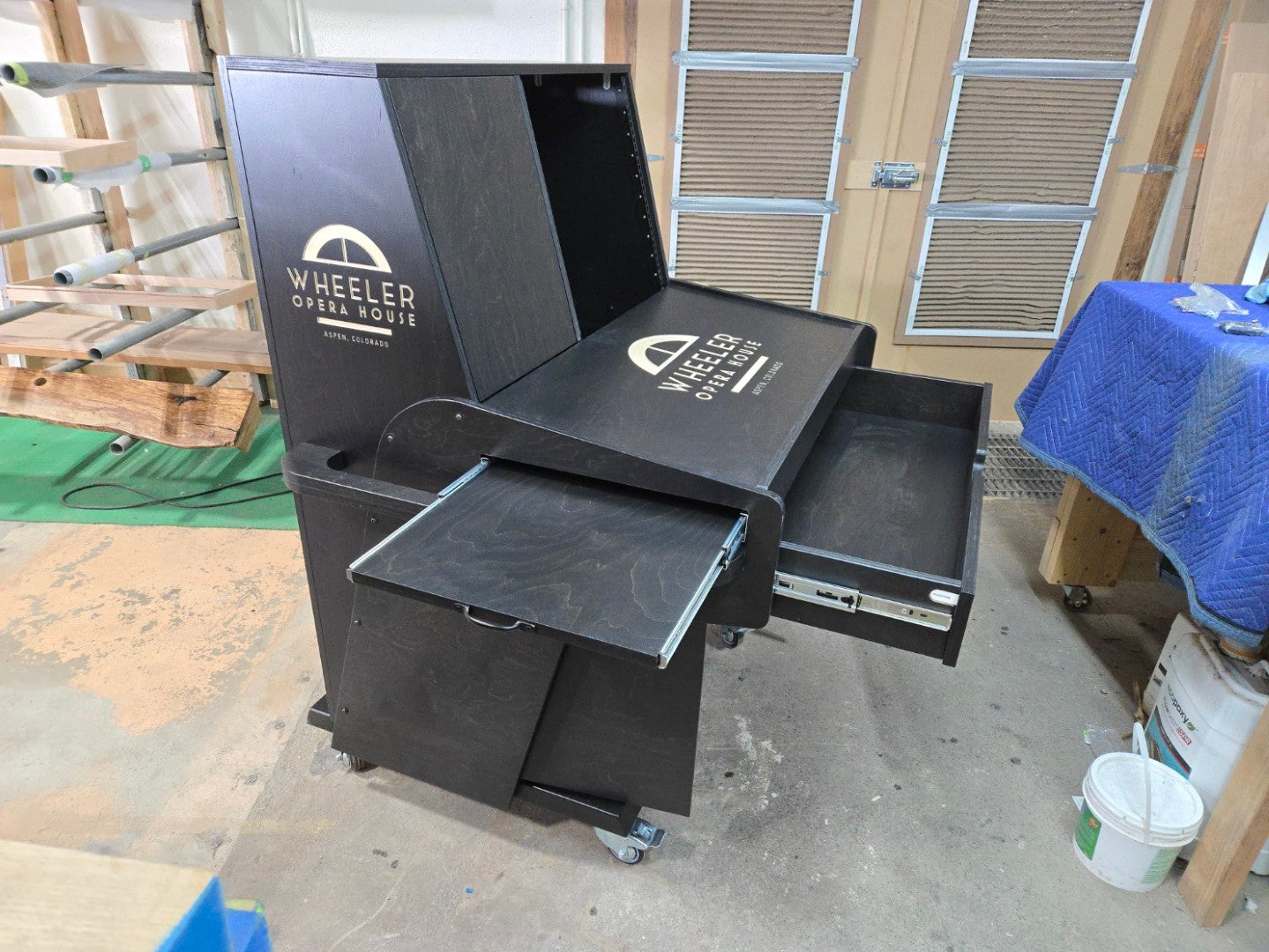

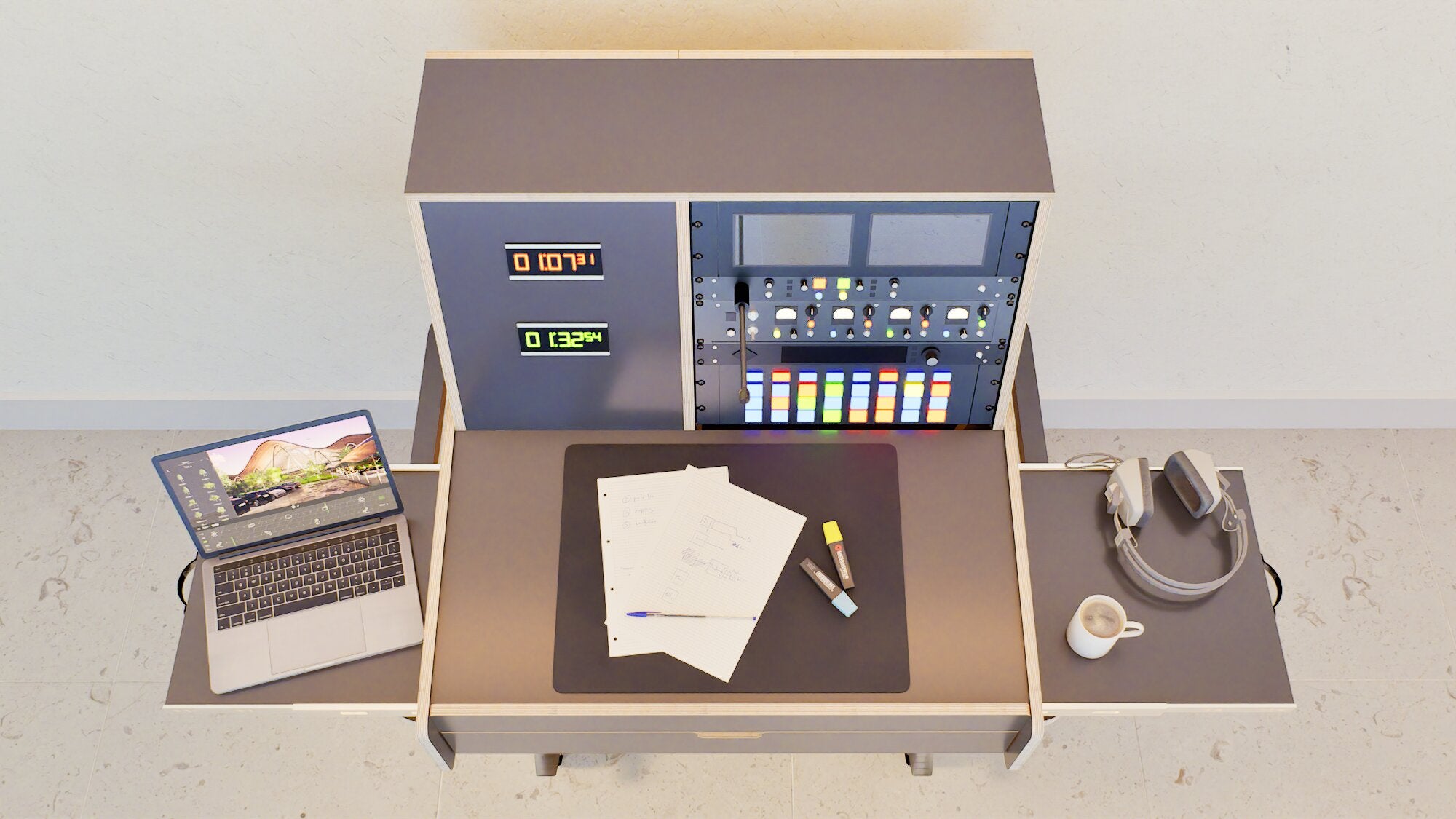

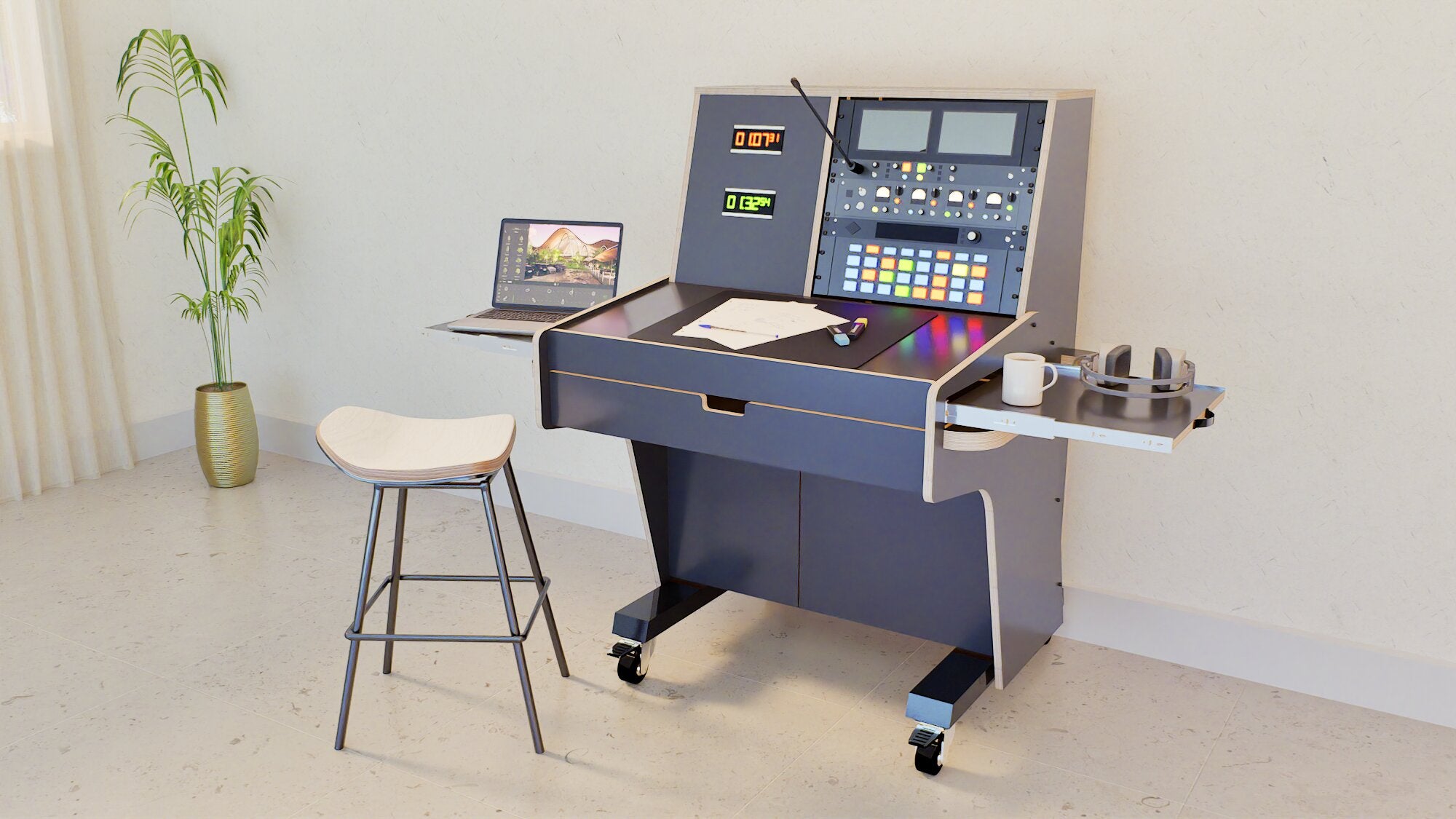

Stage Management Console 1A has two retractable trays which pull out from both the left and right sides of the unit. The trays extend the desktop for your overflow gear such as laptop computers, headsets and coffee mugs.

Each application of a Stage Management Console is different. Fusion Studio Works will customize your unit with machined cut-outs to suit your specified audio visual equipment. Cut-outs can be located anywhere in the body of the unit.

Cut-outs may include provisions for audio visual signal connector plates, power and data distribution devices, timing equipment, cabling hooks, ratchet strap through ports and extra handling holes.

Product Specifications

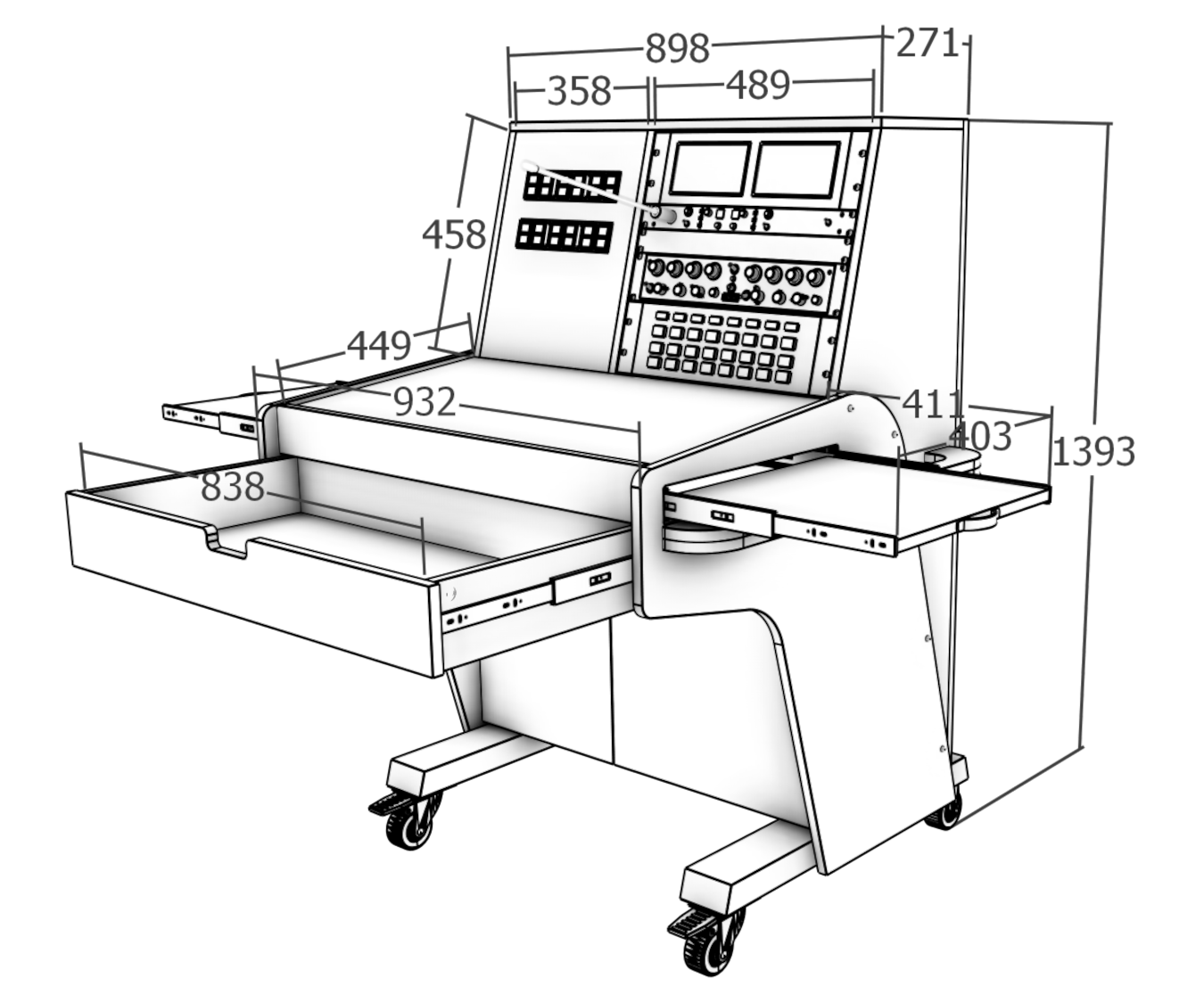

- Large, angled desktop 898x449mm

- Drawer under desktop (not lockable). Internal dimensions 838x400x104mm

- 10 rack units total in upper rack area

- Timber plate adjacent to the rack may be machined to provide cut-outs for specific A/V equipment

- Retractable shelf, left and right sides

- Lower cabinet (not lockable) provides optional 10 rack units or two adjustable shelves

- Bump/handling rail left and right sides

- x2 heavy duty premium 80mm braked casters at the front

- x2 heavy duty premium 80mm non-braked casters at the rear

- Extremely sturdy construction, made from steel and film faced, finger print resistant plywood

Important Info

It is the responsibility of the customer and/or consultant to check that all specified A/V and electronic equipment will physically fit in the unit.

The Stage Management Console SMC-1A is a customizable product. Custom specifications enquires are made via our contact form

What's Included

- CAD preparation for the addition of CNC machined cut-outs for A/V equipment anywhere in the body of the unit

- 10RU rack rail to main and lower cabinet racks

What's Not Included

- A/V and 19" outboard rack equipment, other electronics, signal connection plates, power and cabling

- Rack cage nuts and bolts

Shipping & Collection Options

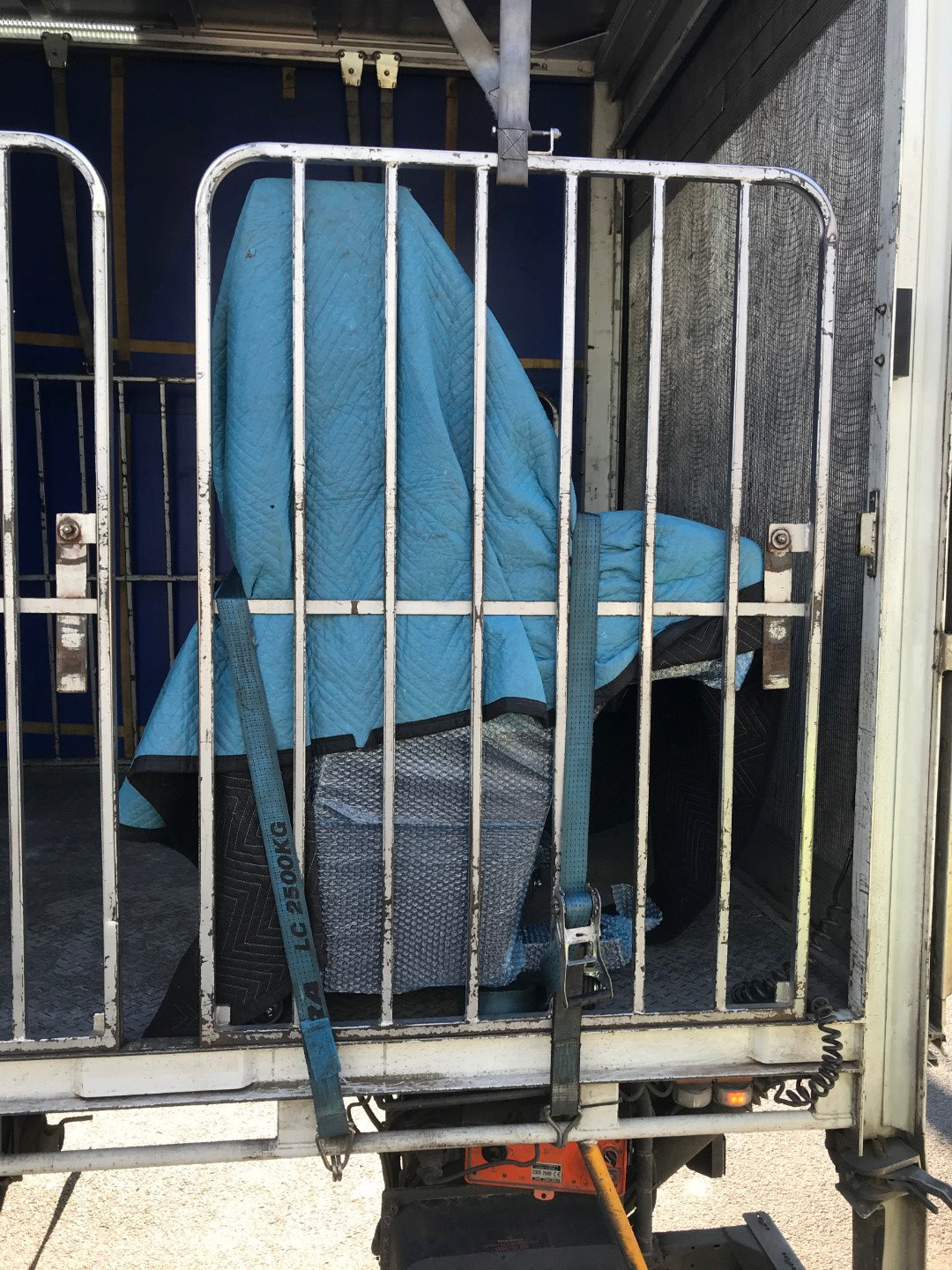

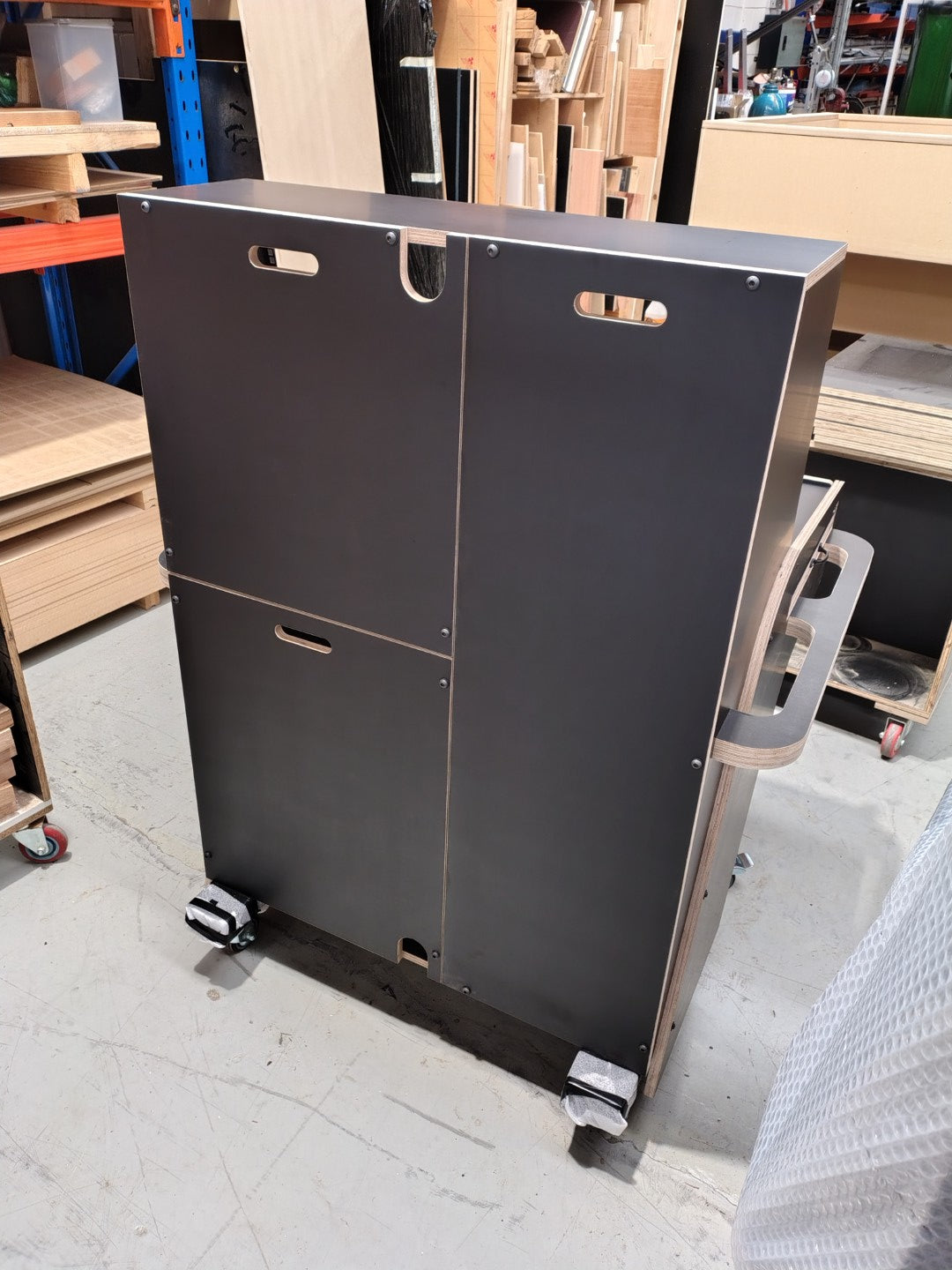

- Flat-packed in cartons for on-site user assembly

- Factory assembled and delivered as a completed unit

- Collect assembled or partially assembled from our workshop:
392 Victoria Street, Brunswick 3058, VIC

Product Technical Drawing

SMC_1A_Technical_Drawing_A4.pdf

A DWG CAD file can be supplied on request.
