Europa 3B - Studio Desk for Home Music Production
Continuing the series theme of light weight and compact. With it's rigid, reinforced slide out tray, Europa 3B studio desk can accommodate keyboards up to 1300mm wide. This is wide enough to accommodate most 88 note keyboard instruments. It features 3 bays of 4 rack units.
Available in Black, White and Natural finish.
Product Features
- 3 bays of 8 rack units above desktop
- 3 bays of 4 rack units below desktop*
- Raised computer display and speaker shelf
- Cable management achieved using supplied lacing bars at the rear of each rack
*The positioning of outboard gear in the upper rack in relation to the lower rack requires coordination because not all loading combinations are possible. Units may obstruct one another depending on their relative positions. The design intent is for the lower racks to be loaded with vented rack plates to promote air circulation.
Please refer to the sectional diagram in the image gallery
What's Included
- 4RU rack rails tapped for M6 bolts to font and rear of racks
- 3x lacing bars for cable management
- 40x M6 bolts for rack equipment and lacing bars
- A4 printed assembly manual
- Electronic PDF assembly manual
What's Not Included
- A/V and 19" outboard rack equipment, other electronics, signal connection plates, power and cabling
- Speaker stands and vented rack plates
Shipping & Collection Options
- Flat-packed in cartons for on-site user assembly
- Factory assembled and delivered as a completed unit
- Collect assembled or partially assembled from our workshop:
392 Victoria Street, Brunswick 3058, VIC

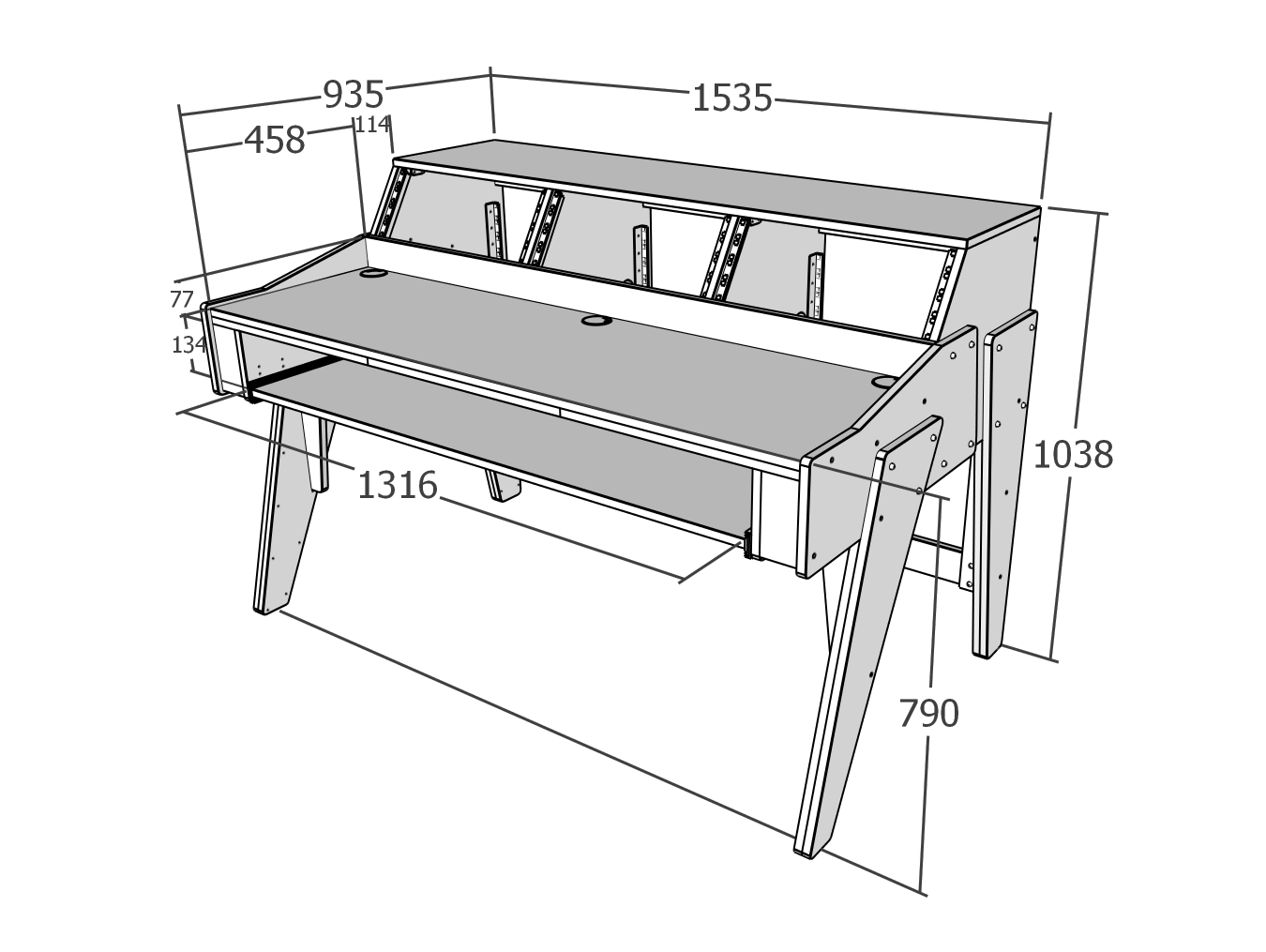

Product Dimensions

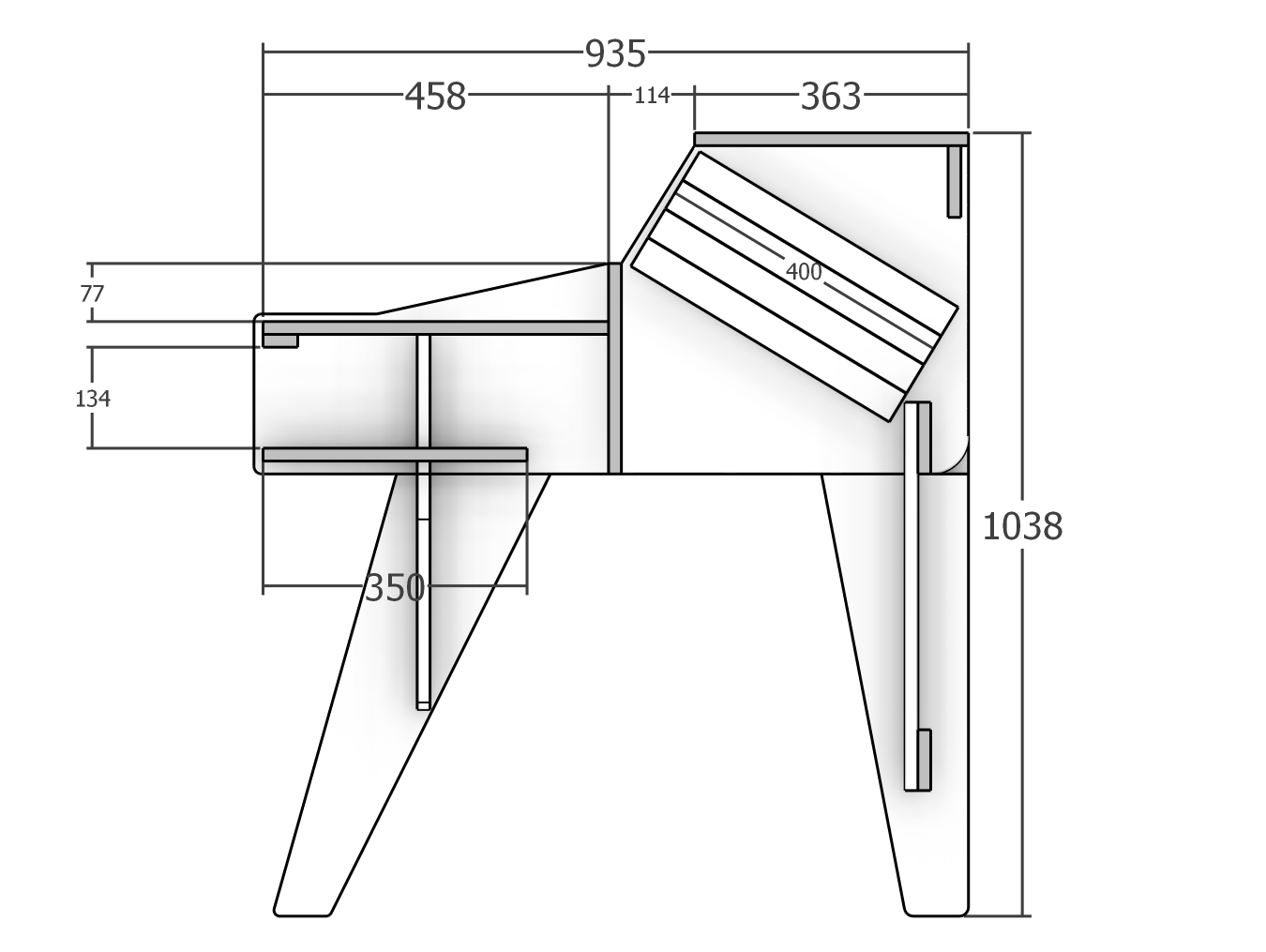

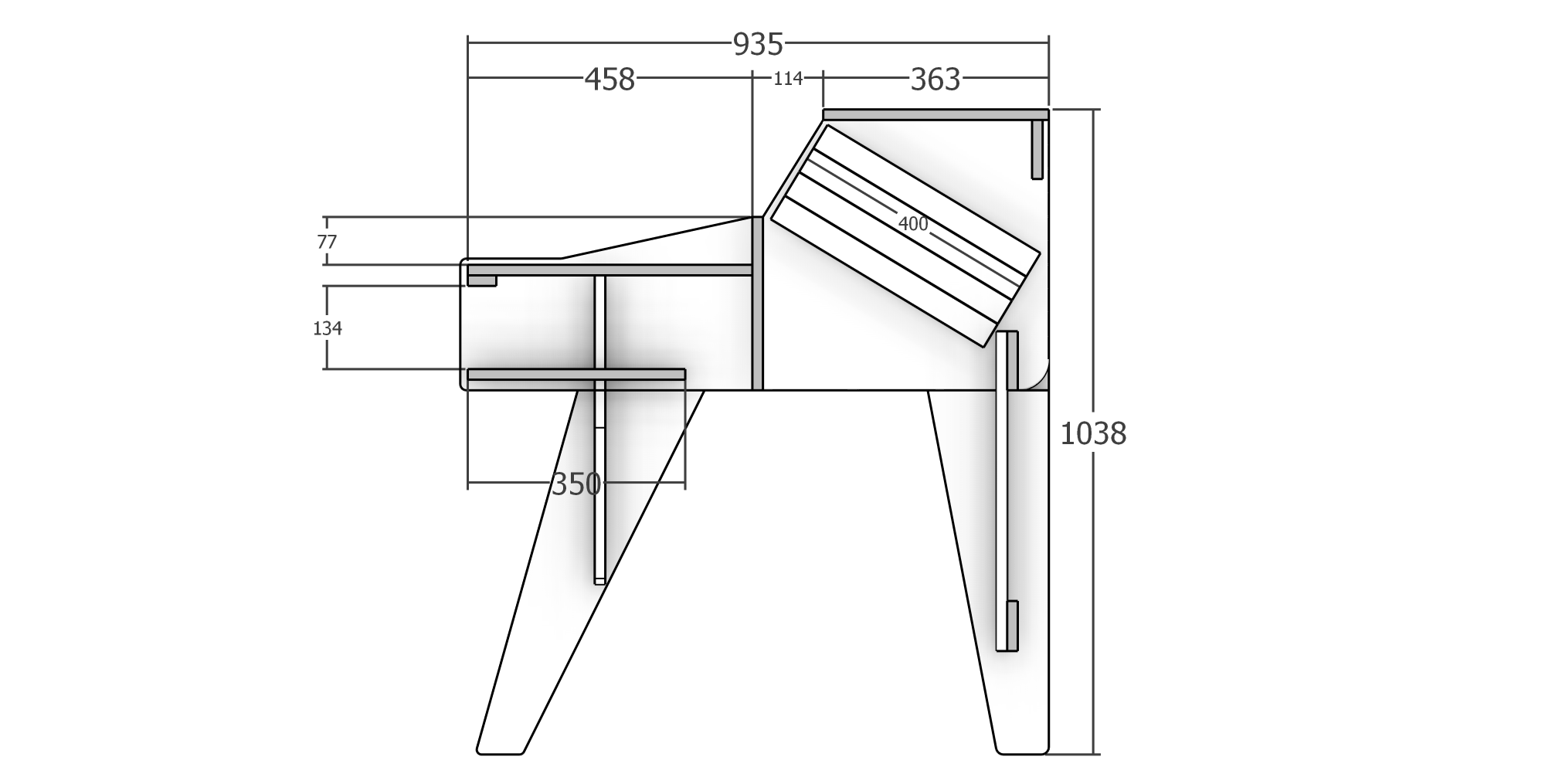

Section Drawings
