Callisto 4B - Studio Desk for Keyboards & Consoles
Features
Four bays of four rack units, a luxurious full width padded armrest and an enormous work surface to spread out your gear. Turntables, drum machines and synthesizers can live in harmony with your rack gear because the rack bays are raised above the height of the work surface by 77mm. This means your equipment on the worktop will not obscure your outboard gear behind.
Room to Grow
At 2041mm in length, the speaker/computer display shelf is large enough to accommodate two flat screen monitors side by side in addition to your studio speakers.
Cable Management
In the rear of the racks, the supplied lacing bars are mounted between the rack strips, to which you can tie cables.
There is also a cable channel which runs the full length of the desk. Cabling through holes allow for cable routing between every nook of the desk.
Available in Black, White and Natural grain finish.
Product Specifications
- Desk footprint dimensions: Width 2041 x Depth 1068mm.
- Worktop dimensions: Width 2041 x Depth 581mm.
Elevation/height: 720mm.
- Computer display/speakers shelf.
Dimensions: Width 2041 x Depth 363mm.
Elevation/height: 970mm.
- 4 rack bays of 4RU, set 77mm above the desktop (32 degrees from vertical).
- 16 rack units total.
What's Included
- 4RU rack rails tapped for M6 bolts to font and rear of racks
- 4x lacing bars for cable management
- 48x M6 bolts for rack equipment and lacing bars
- A4 printed assembly manual
- Electronic PDF assembly manual
What's Not Included
- A/V and 19" outboard rack equipment, other electronics, signal connection plates, power and cabling
- Speaker stands and vented rack plates
Shipping & Collection Options
- Flat-packed in cartons for on-site user assembly
- Factory assembled and delivered as a completed unit
- Collect assembled or partially assembled from our workshop:
392 Victoria Street, Brunswick 3058, VIC


Product Dimensions

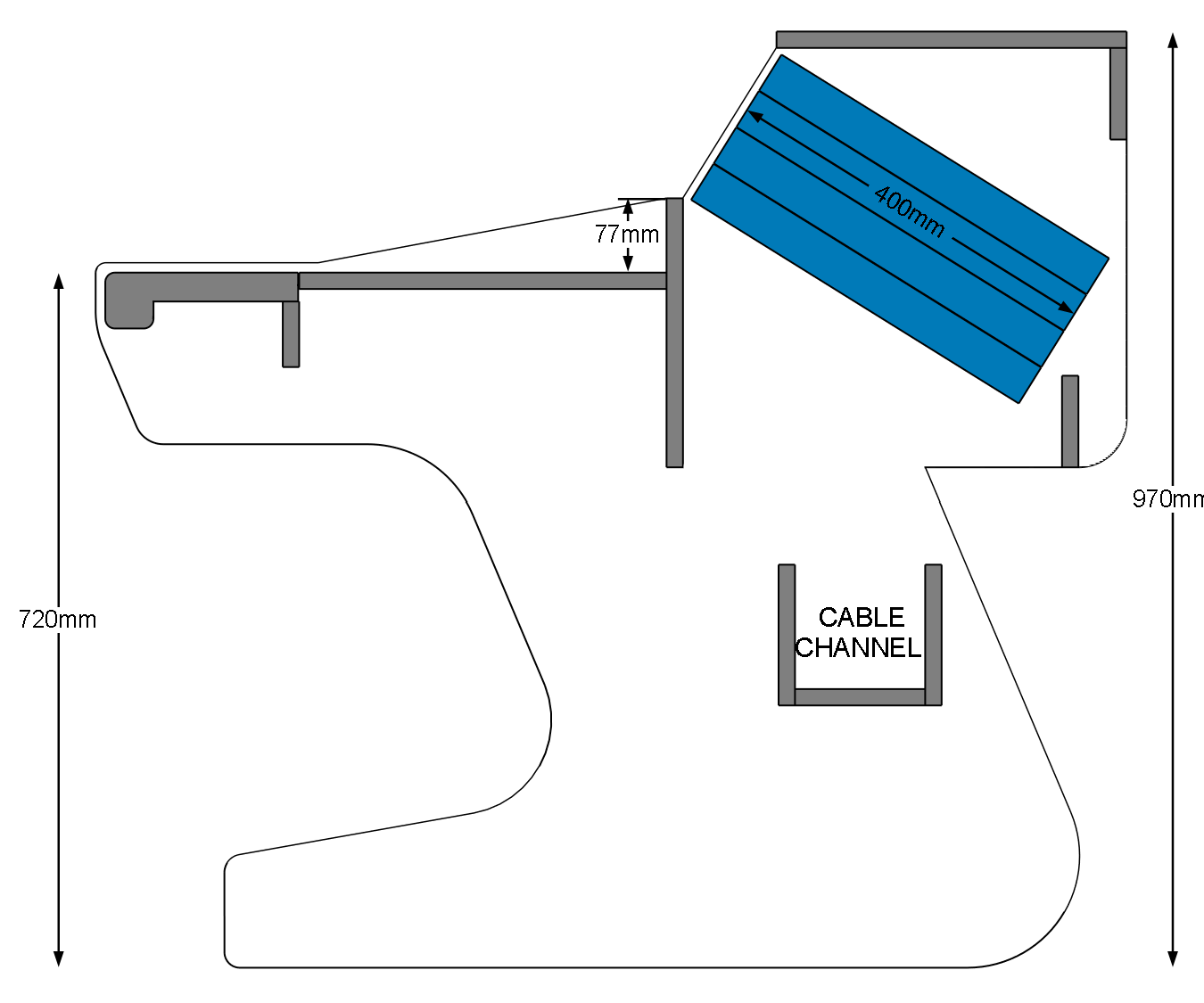

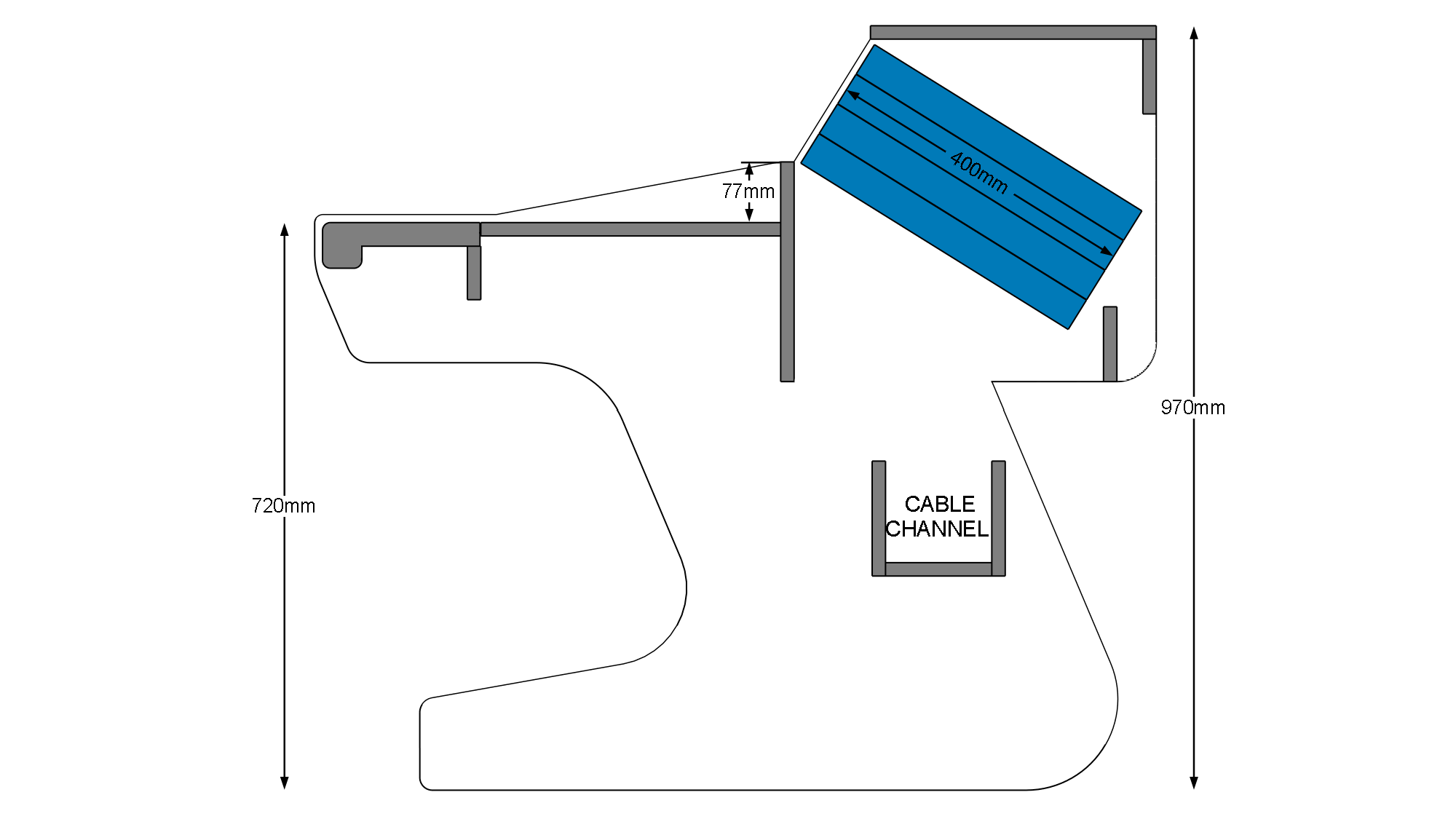

Section Drawings
