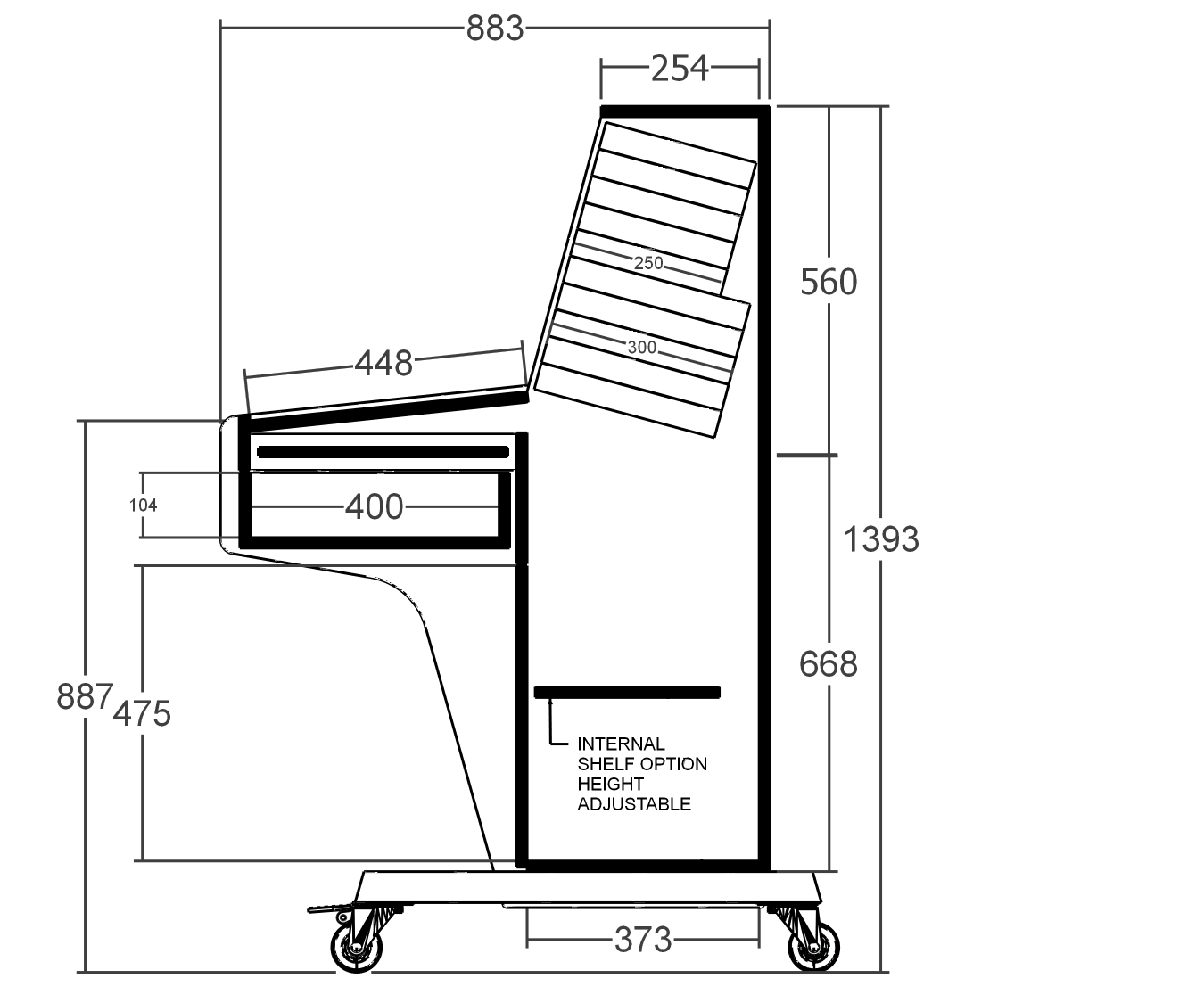

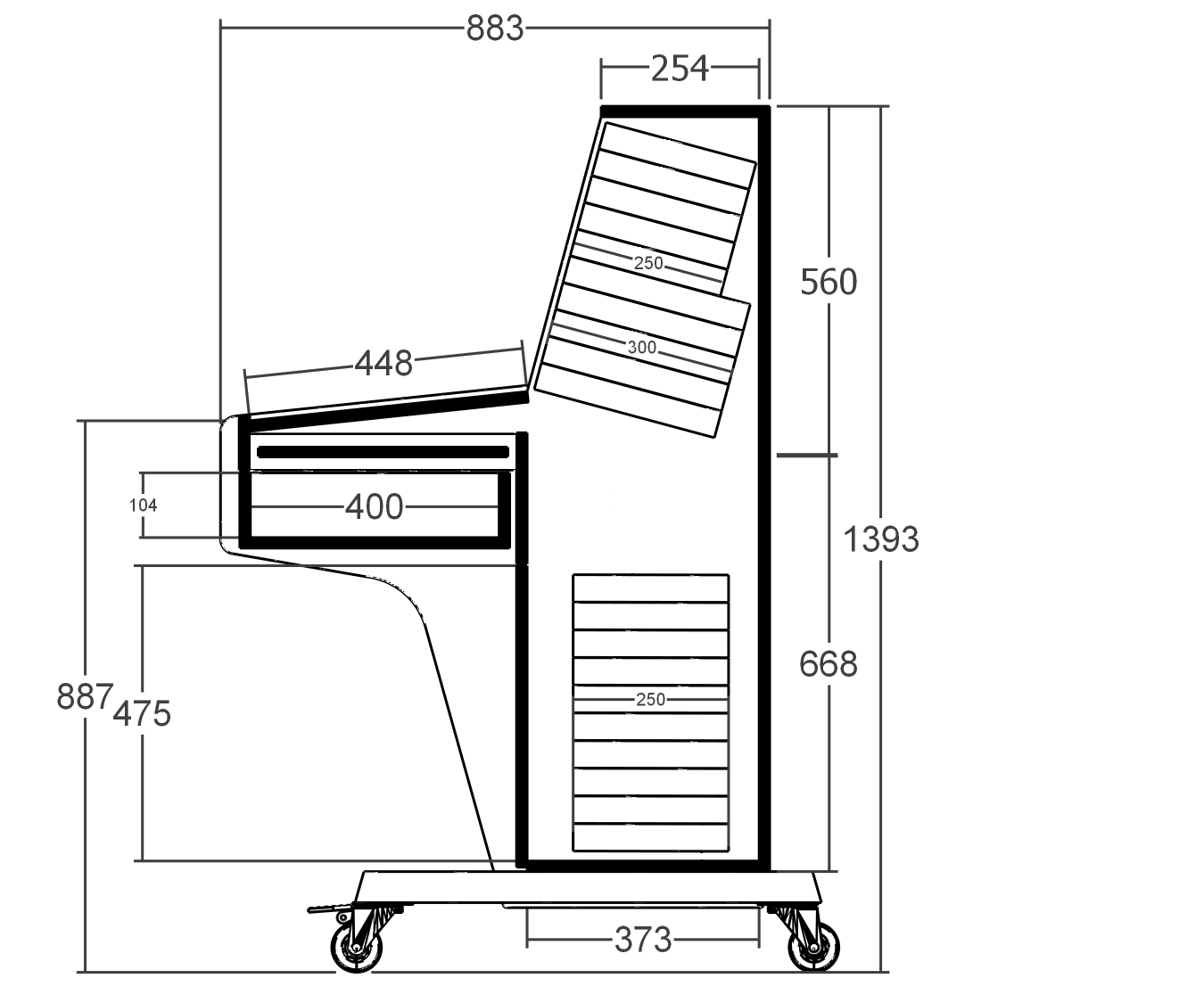

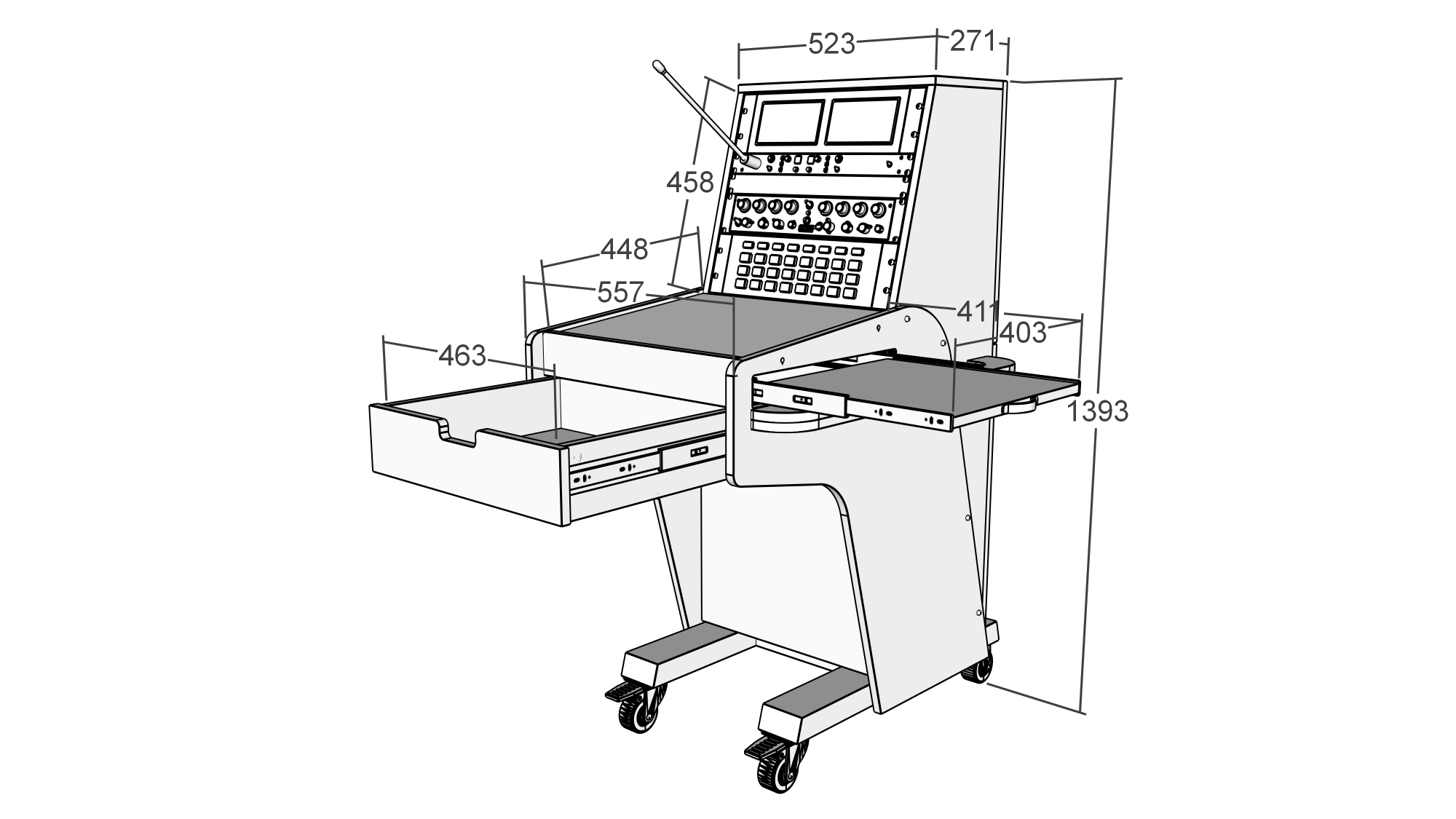

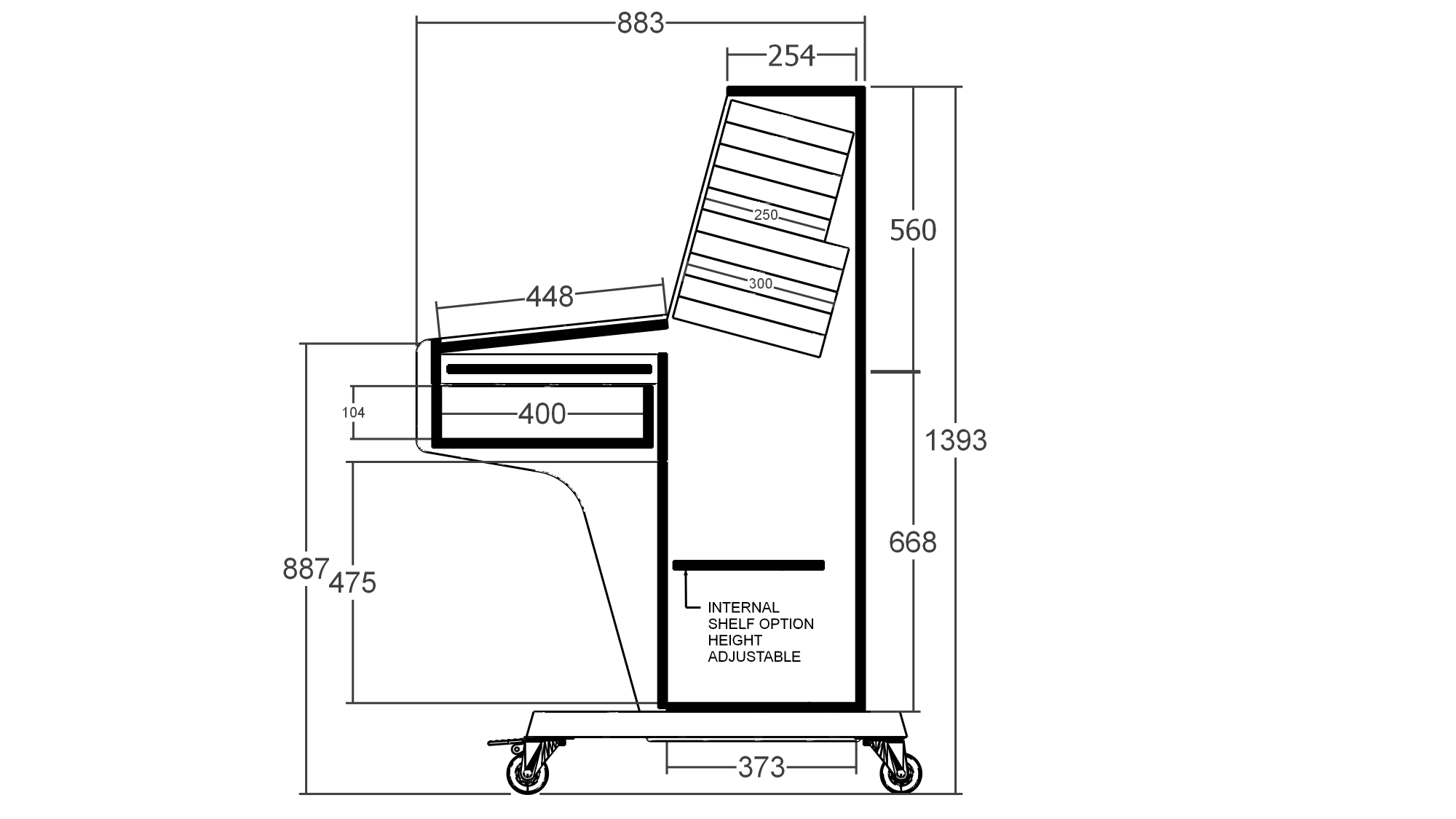

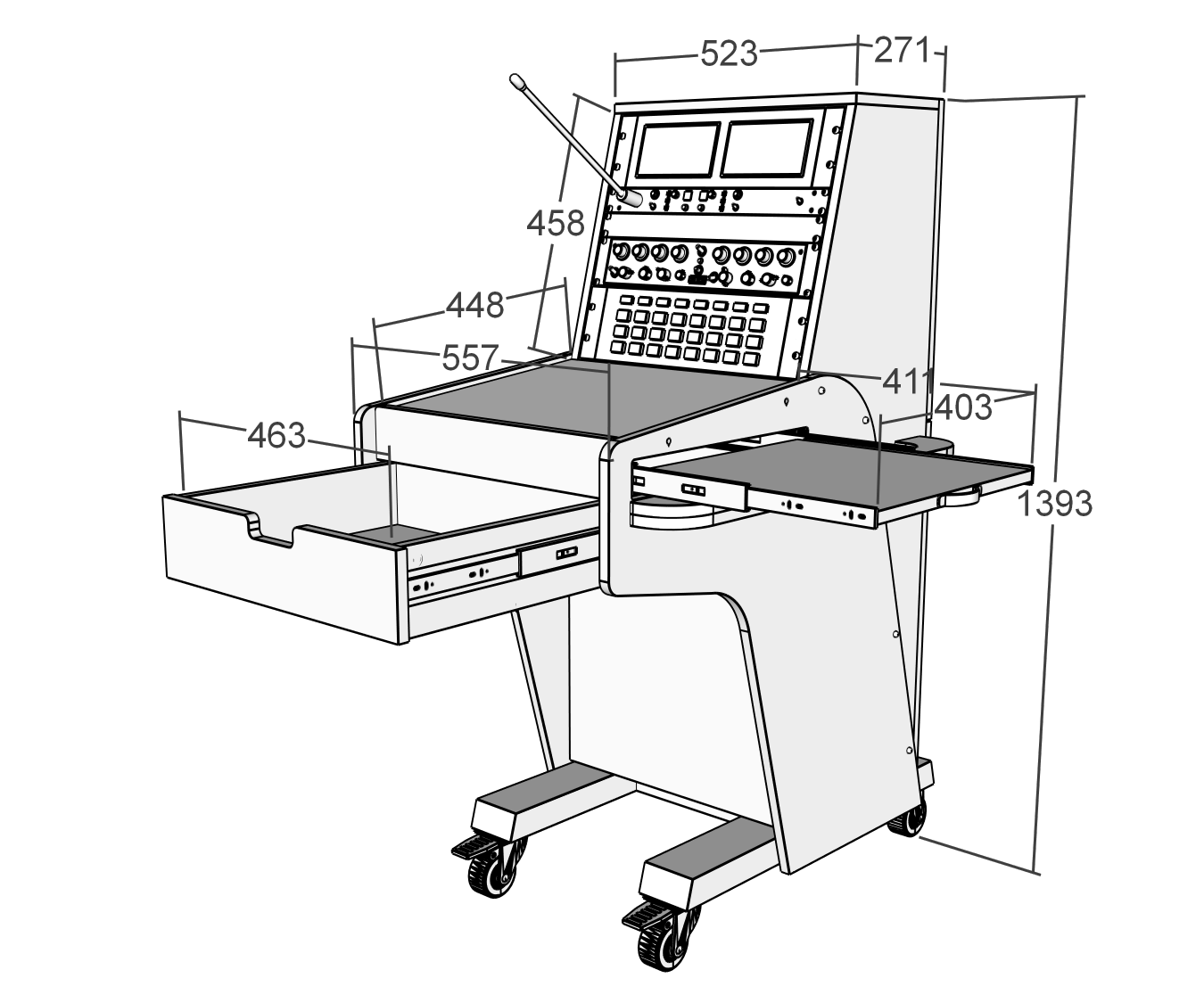

- Large, angled desktop 523x448mm.

- Drawer under desktop (not lockable).

- Drawer internal dimensions 463x400x104mm

- 10 rack units total in upper rack area

- Retractable shelf, right side

- Lower cabinet (not lockable) provides optional 10 rack units or an adjustable shelf

- Bump/handling rail, left and right sides.

- x2 heavy duty premium 80mm braked casters at the front, x2 heavy duty premium 80mm non-braked casters at the rear.

- Extremely sturdy construction, made from steel and film faced plywood.

- Pictured A/V equipment and vented rack panels are not included.

It is the responsibility of the customer and/or consultant to check that all specified A/V and electronic equipment will physically fit in the unit.

The Stage Management Console SMC-1A is a customizable product. Custom specifications enquires are made via our contact form

- CAD preparation for the addition of CNC machined cut-outs for A/V equipment anywhere in the body of the unit

- 10RU rack rail to main and lower cabinet racks

- A/V and 19" outboard rack equipment, other electronics, signal connection plates, power and cabling

- Rack cage nuts and bolts

- Speaker stands and vented rack plates

- Flat-packed in cartons for on-site user assembly

- Factory assembled and delivered as a completed unit

- Collect assembled or partially assembled from our workshop:
392 Victoria Street, Brunswick 3058, VIC
