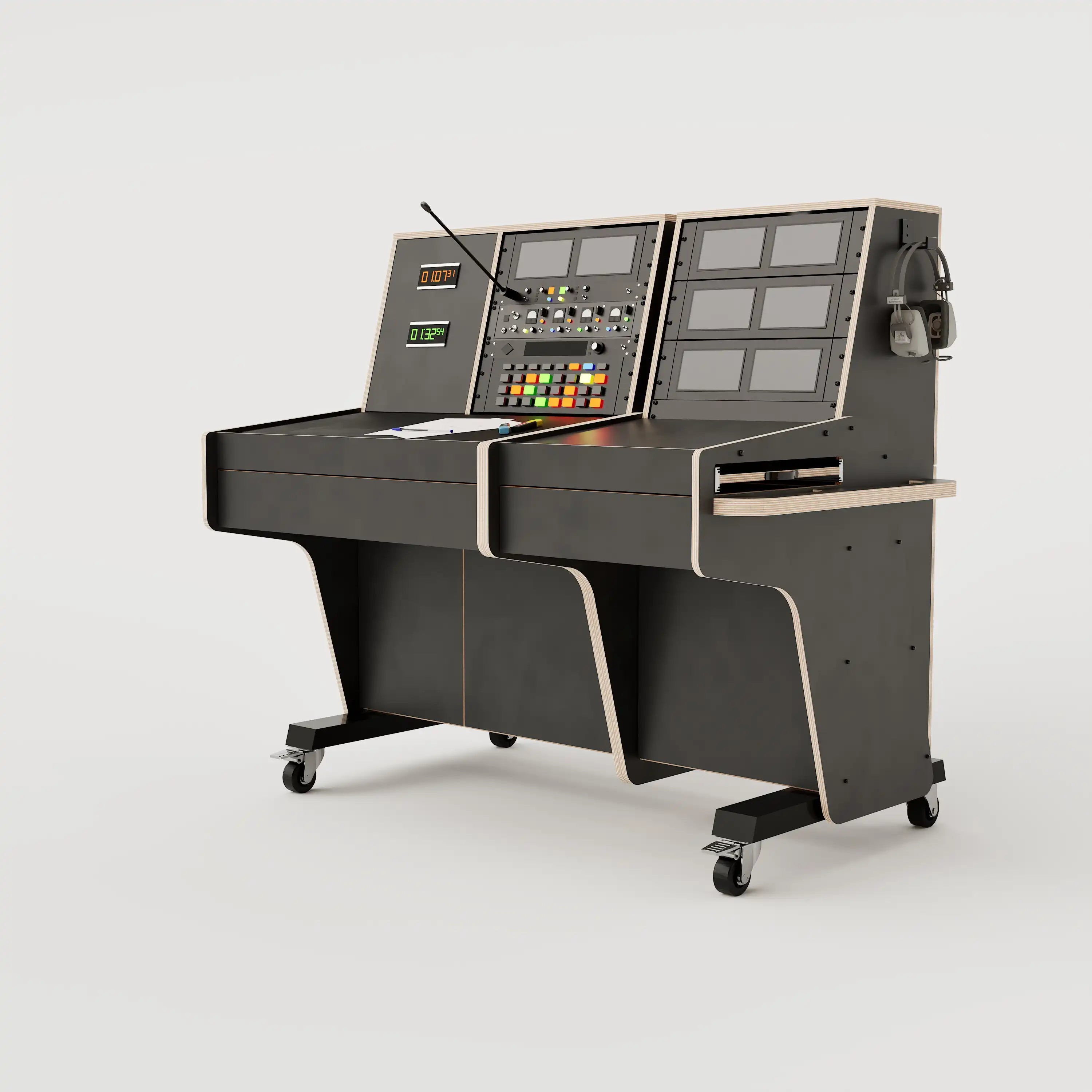

Right view of the custom Stage Management Console model 31A with 20 rack units above the worktop, triple door cabinet, 2x Large drawers, steel legs with 80mm wheels. Black with expressed plywood edge.

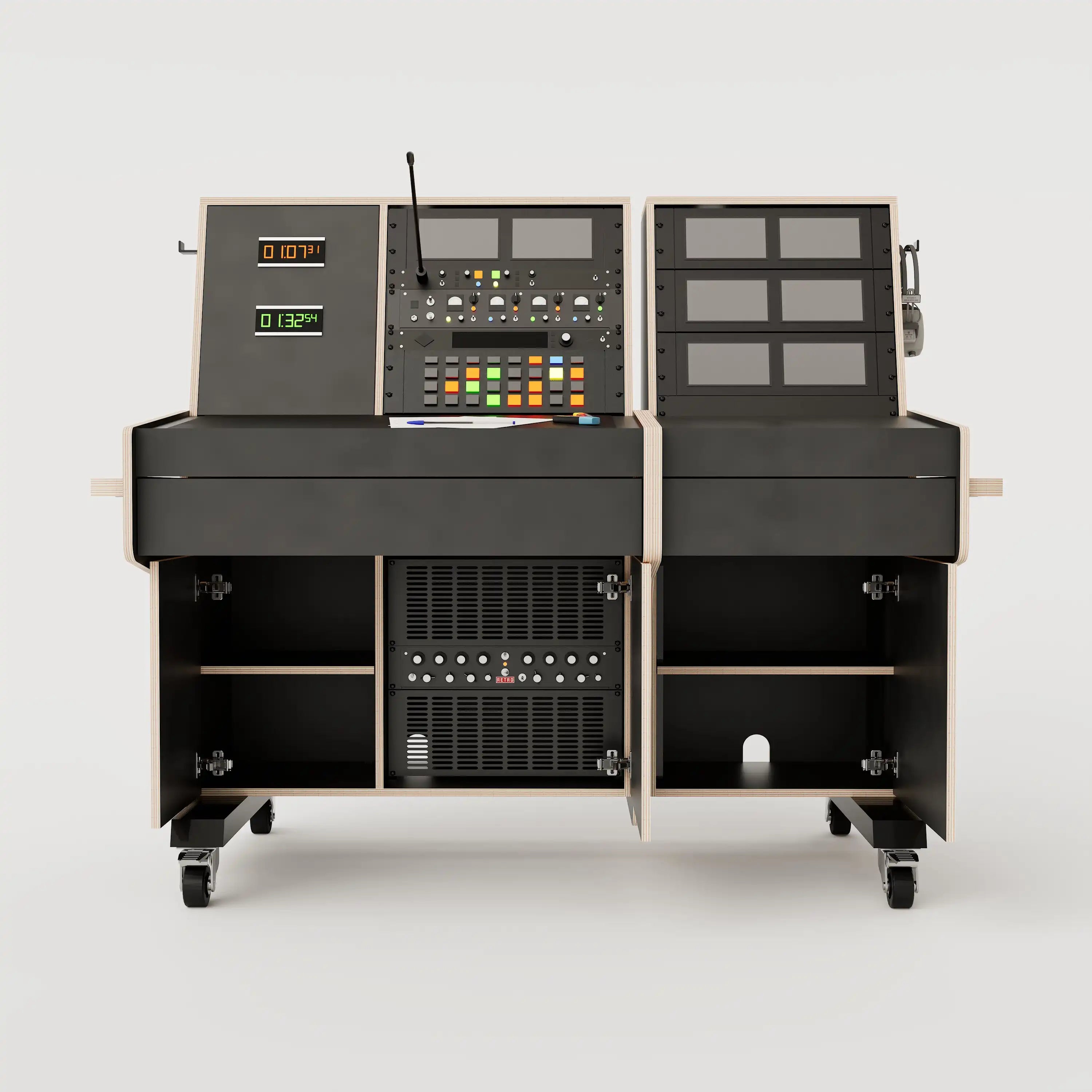

Front view of the custom Stage Management Console model 31A with 20 rack units above the worktop, showing open triple door cabinet, 2x Large drawers, steel legs with 80mm wheels. Black with expressed plywood edge.

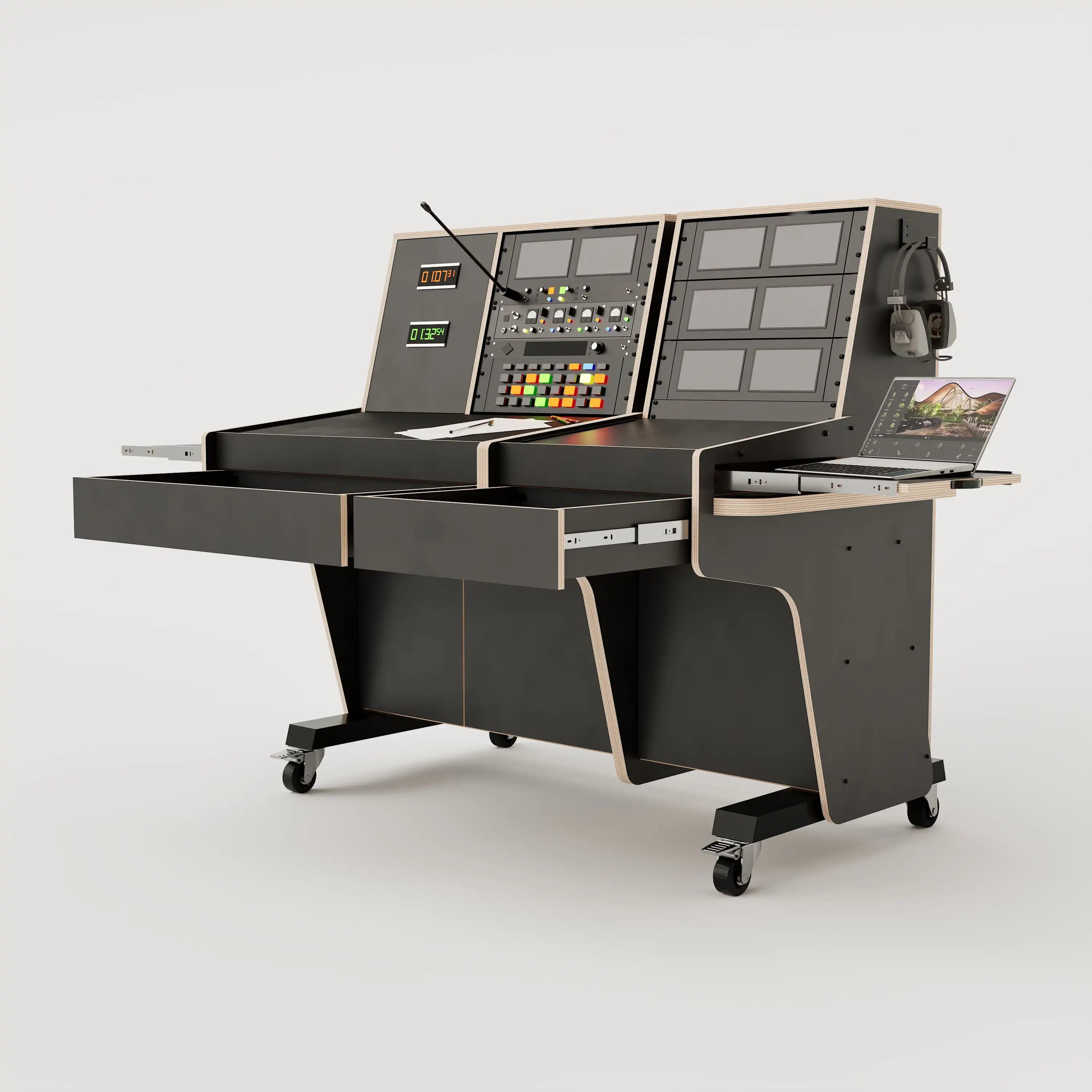

Right side view of the custom Stage Management Console model 31A, showing all drawers and trays in the open position. 20 rack units above the worktop, triple door cabinet, 2x Large drawers, steel legs with 80mm wheels. Black with expressed plywood edge.
Right view of the custom Stage Management Console model 31A with 20 rack units above the worktop, triple door cabinet, 2x Large drawers, steel legs with 80mm wheels. Black with expressed plywood edge.
Front view of the custom Stage Management Console model 31A with 20 rack units above the worktop, showing open triple door cabinet, 2x Large drawers, steel legs with 80mm wheels. Black with expressed plywood edge.
Right side view of the custom Stage Management Console model 31A, showing all drawers and trays in the open position. 20 rack units above the worktop, triple door cabinet, 2x Large drawers, steel legs with 80mm wheels. Black with expressed plywood edge.

Fusion Studio Works

Stage Management Console 31A, Expressed Edge, Black

$3,564.00
Shipping calculated at checkout.
Description

The Stage Management Console 31A is large enough to meet most demanding shows.


SMC 31A houses 20 rack units above the worktop and the worktop itself is large enough for a set of A2 and A3 size running sheets side by side. You'll find a two large drawers under the worktop and a triple door cabinet in the lower body which can house another 20 rack units of 19" equipment if required.


Stage Management Console 31A has two retractable trays which pull out from the right side of the unit. The tray extends the desktop for your overflow gear such as laptop computers, headsets and coffee mugs.


Each application of a Stage Management Console is different. Fusion Studio Works will customize your unit with machined cut-outs to suit your specified audio visual equipment. Cut-outs can be located anywhere in the body of the unit.


Cut-outs may include provisions for audio visual signal connector plates, power and data distribution devices, timing equipment, cabling hooks, ratchet strap through ports and extra handling holes.


Extremely sturdy construction, made from steel and film faced, finger print resistant plywood

Product Specifications

Angled Desktop
Dimensions:
1448 x 449mm.


Left Side Drawer
Locking option.
Internal dimensions:
838 x 400 x 104mm.


Right Side Drawer
Internal dimensions:
462 x 400 x 104mm.


20 rack units
To upper rack area.


Timber Audio Visual Plate
Positioned adjacent to the rack may be machined to provide cut-outs for specific A/V equipment.
Dimensions:
367 x 458mm.


x2 Retractable Shelves
(Left and right sides)
Dimensions:
400 x 400mm.


Lower cabinets
Provides optional 20 rack units or two adjustable shelves
Locking option.

Right side internal dimensions:
489 x 480mm.

Left side cabinet internal dimensions:
864 x 480mm.

Upper most panel enclosing the racks
1446 x 254mm.


Bump/handling rails
To left and right sides.
Removable.


x4 heavy duty premium 80mm casters
Front: Braked.
Rear: Non-Braked.

Shipping & Collections


Local Delivery

If you're in the greater Melbourne area we can deliver your order partially or fully assembled and install it into your workspace.

Delivery only:
Customer assembly required.

Delivery and Installation:
Full white glove service. We will install your unit into your workspace.


Local Pick-up

Collection of your order is available from our Coburg North Workshop.

9 Warner Street
Coburg North 3058
Victoria
Australia


Contract Furniture Removalist

Available to all Australian capital cities (+60km radius) and most regional centres.

Our partner furniture removalists freight our products around Australia. They handle your items sensitively ensuring your consignment arrives undamaged and on time.


Transit Time

Australian Capital Cities
1-5 business days

Manufacturing Lead Time


14-28 business days (standard Operations)
Please contact us for a present lead time.

Fusion Studio Works operates under a ‘made to order’ model which means that we do not keep pre-manufactured stock in a warehouse ready to ship.
