Home/All Products/Arcade 18 Studio Console Side Car Rack and Desk, Expressed Edge, Black

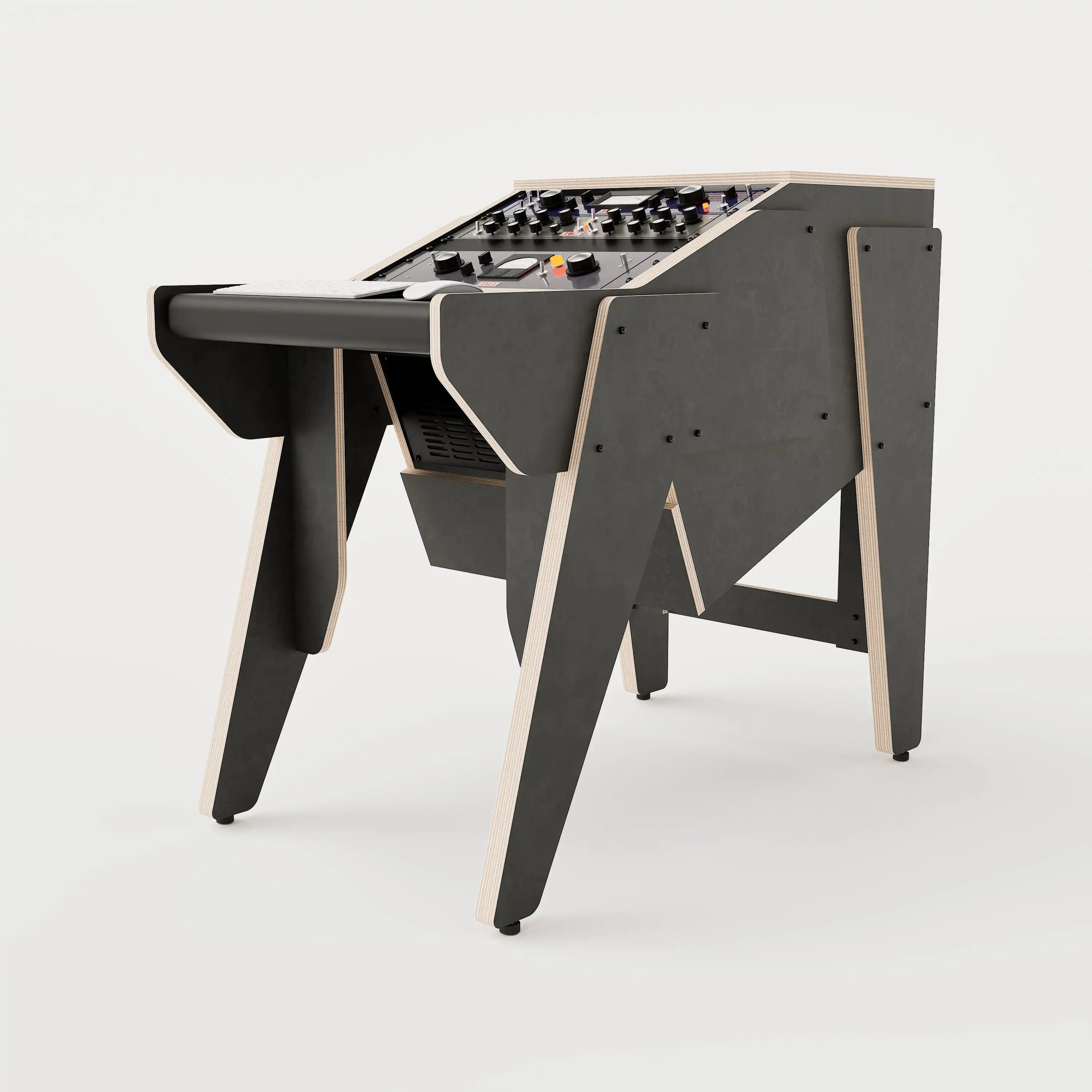

Right view of the Arcade 18 custom studio console sidecar with 8 rack units on the desktop and 4 rack under the desktop. Black with expressed plywood edge.

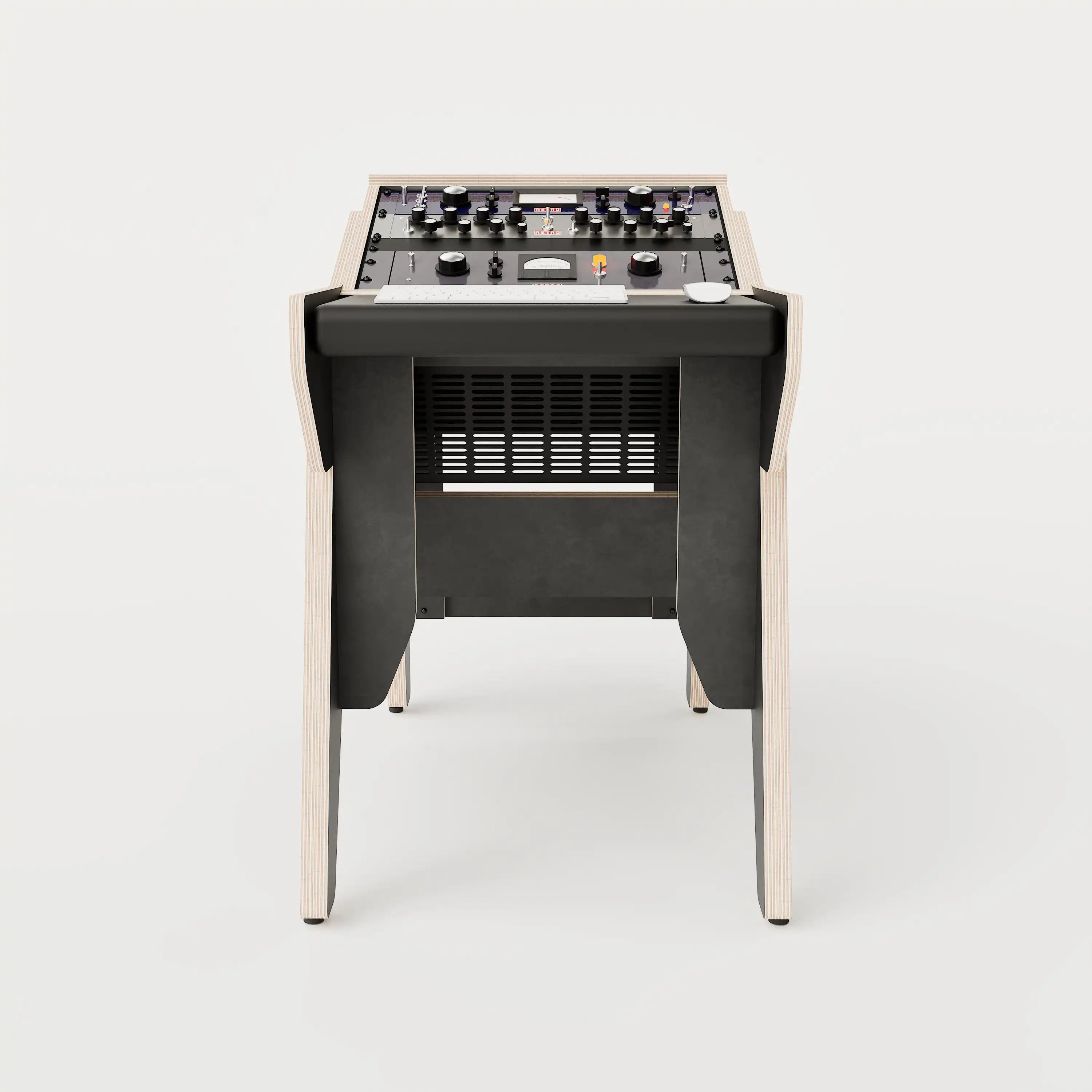

Front view of the Arcade 18 custom studio console sidecar with 8 rack units on the desktop and 4 rack under the desktop. Black with expressed plywood edge.

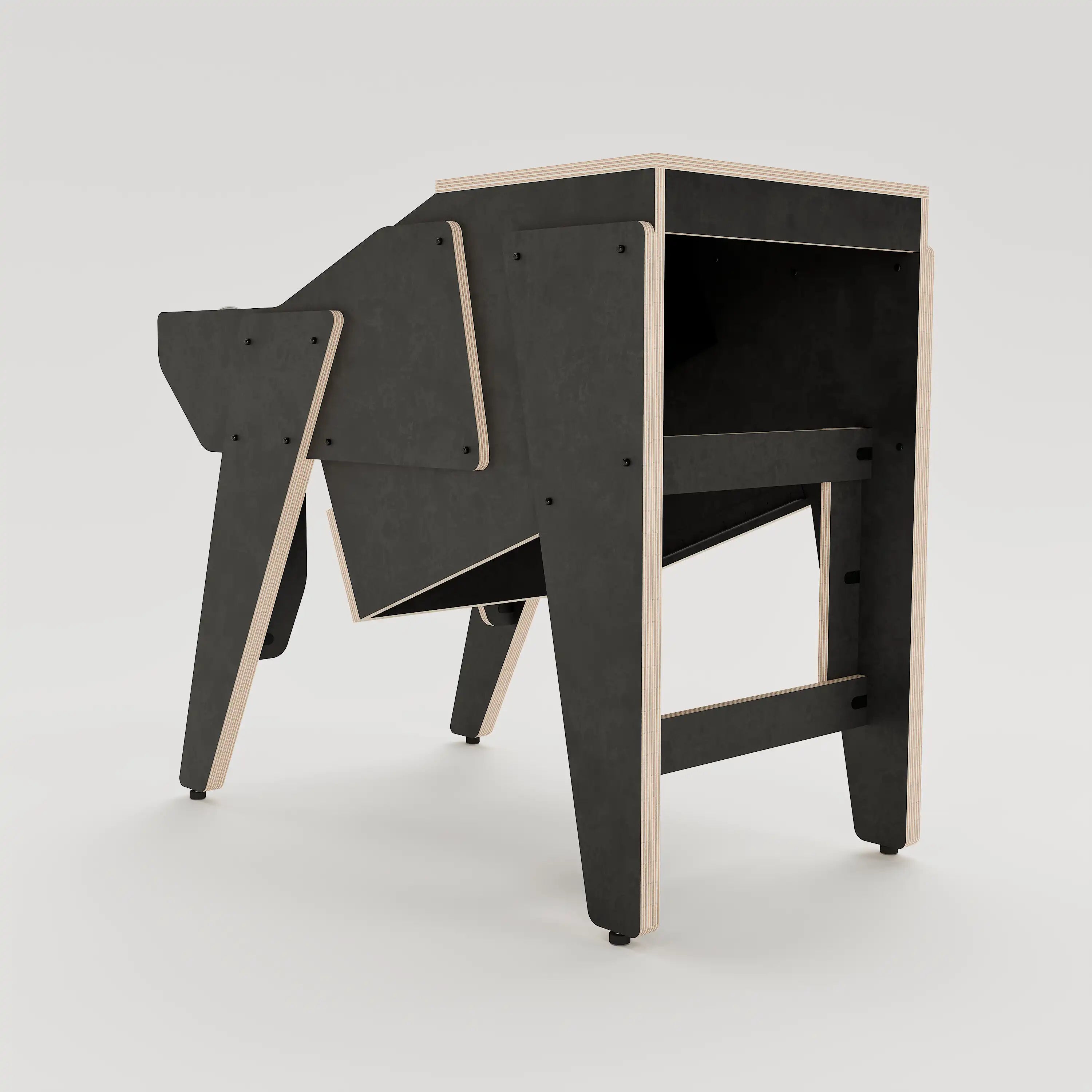

Rear view of the Arcade 18 custom studio console sidecar with 8 rack units on the desktop and 4 rack under the desktop. Black with expressed plywood edge.

Fusion Studio Works

Arcade 18 Studio Console Side Car Rack and Desk, Expressed Edge, Black

$1,849.00

Shipping calculated at checkout.

Description

Features
The Arcade 18 studio desk is designed to be used as a stand alone audio console side car rack and desk. With 8 rack units at your fingertips in a compact footprint, place an Arcade 18 each side of your large format audio console to manage patching and connected outboard equipment.

Available in black, white and natural grain finishes.

Product Specifications

Desk dimensions

Depth: 1051mm
Width: 585mm

Top Tier Platform

Elevation/height (Dimension 'B' in section diagram): 905mm (levelling feet wound in completely)

Depth: 382mm.
Width: 521mm.

Intended as a fixed shelf for monitor speakers and computer
displays.

Luxurious padded armrest

13mm rubber underlay upholstered over with hard wearing textured black vinyl.
Depth: 300mm.
Width: 521mm.

Elevation/height (Dimension 'A' in section diagram): 745mm (levelling feet
wound in completely).

8 Rack Units

Above the desktop (32.5 degrees from vertical).

4 Rack Units

Below the desktop.*

*The positioning of outboard gear in the upper rack in relation to the lower rack requires coordination because not all loading combinations are possible. Units may obstruct one another depending on their relative positions.

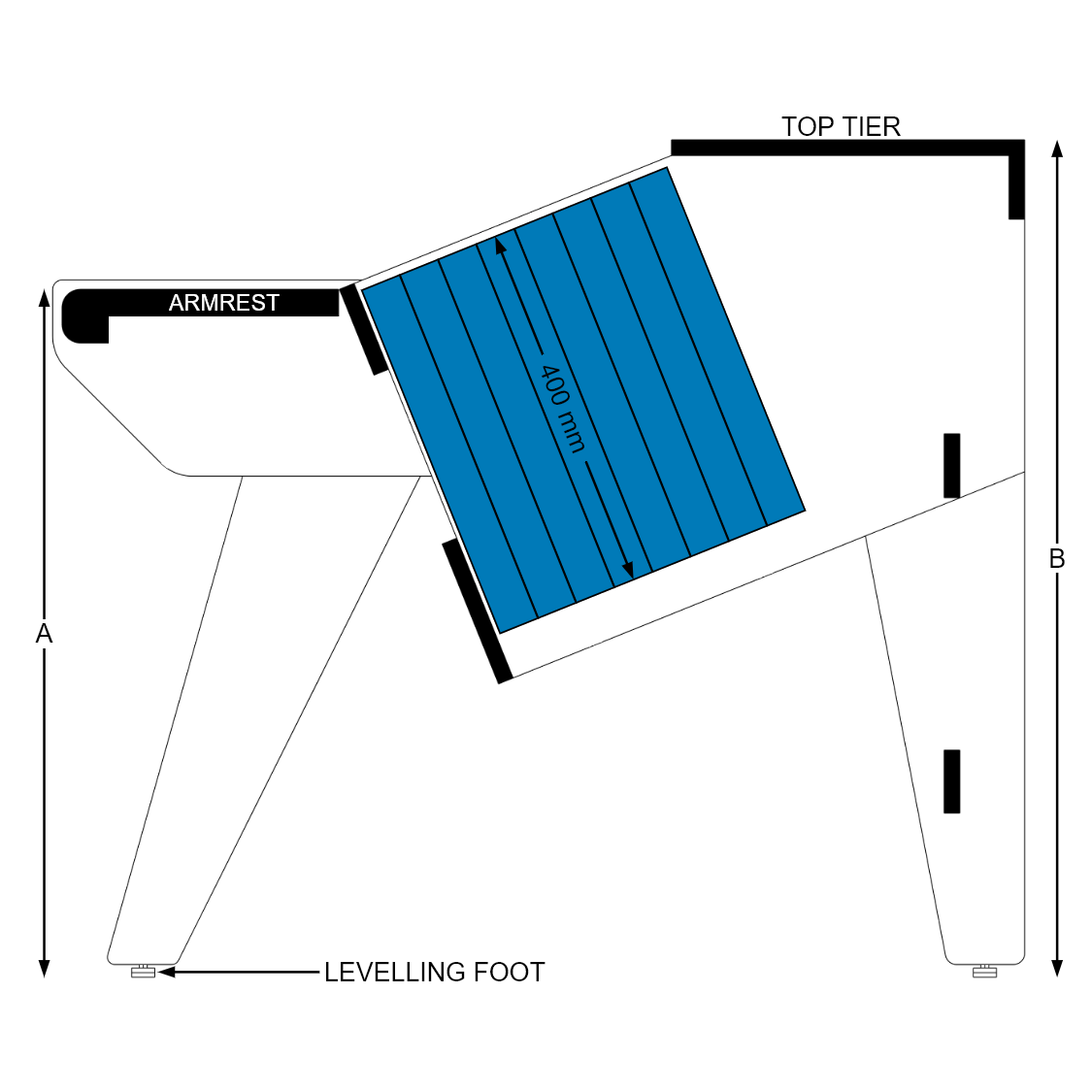

The design intent is for the lower rack to be loaded with vented rack plates to promote air circulation. Please refer to the sectional diagram in the image gallery.

12 rack units total.

Cable Management

In the rear of the racks is achieved using the supplied lacing bars which are mounted between the rack strips, to which you can tie cables.

Cabling through holes allow for cable routing between every nook of the desk.

Shipping & Collections

Local Delivery

If you're in the greater Melbourne area we can deliver your order partially or fully assembled and install it into your workspace.

Delivery only:
Customer assembly required.

Delivery and Installation:
Full white glove service. We will install your unit into your workspace.

Local Pick-up

Collection of your order is available from our Coburg North Workshop.

9 Warner Street
Coburg North 3058
Victoria
Australia

Contract Furniture Removalist

Available to all Australian capital cities (+60km radius) and most regional centres.

Our partner furniture removalists freight our products around Australia. They handle your items sensitively ensuring your consignment arrives undamaged and on time.

Transit Time

Australian Capital Cities
1-5 business days

Manufacturing Lead Time

14-28 business days (standard Operations)
Please contact us for a present lead time.

Fusion Studio Works operates under a ‘made to order’ model which means that we do not keep pre-manufactured stock in a warehouse ready to ship.

Detailed Information

For detailed information on materials, care, assembly and international shipping please click through to our General info & FAQ section.
