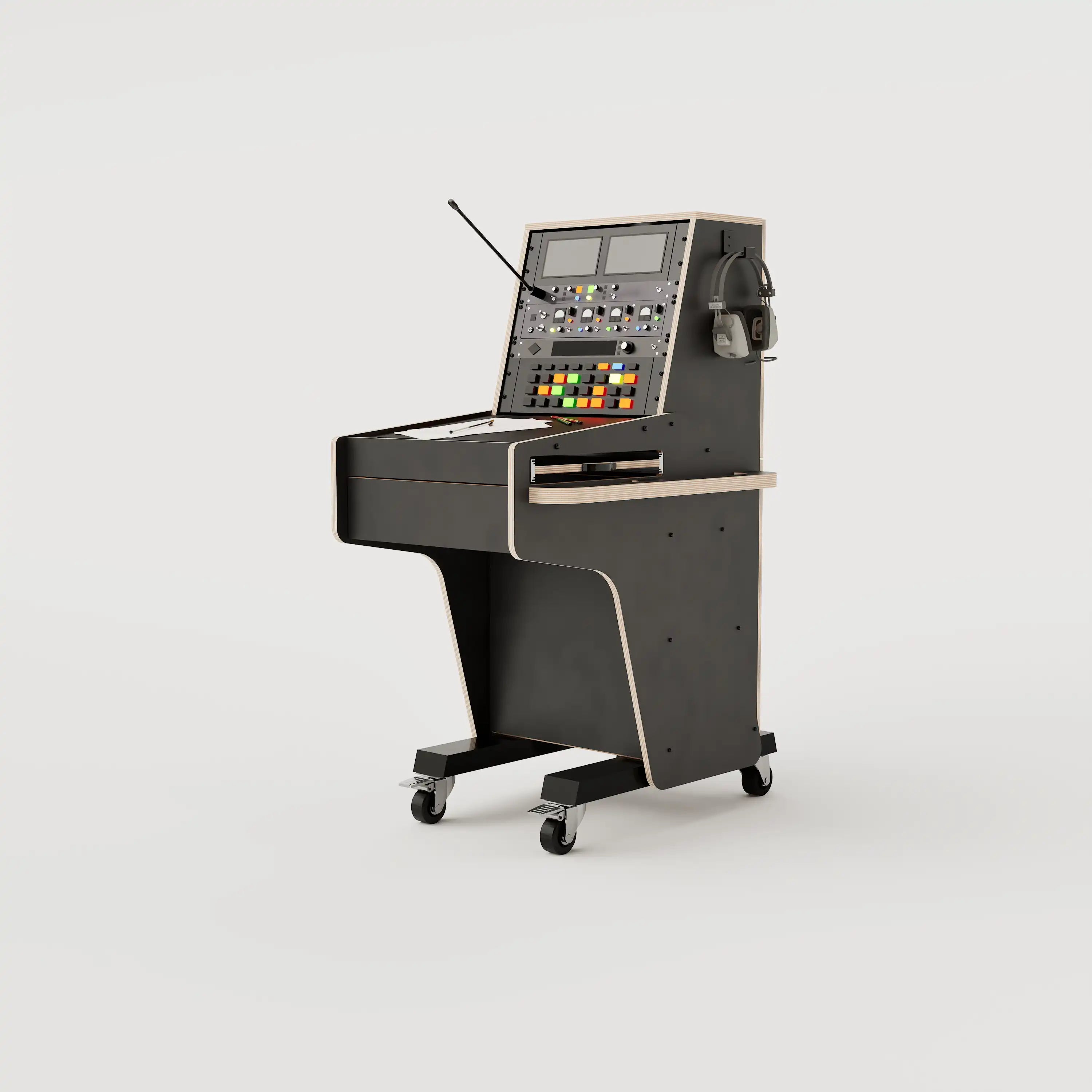

Right view of the custom Stage Management Console model 3A with 10 rack units above the worktop, single door cabinet, a large drawer, steel legs with 80mm wheels. Black with expressed plywood edge.

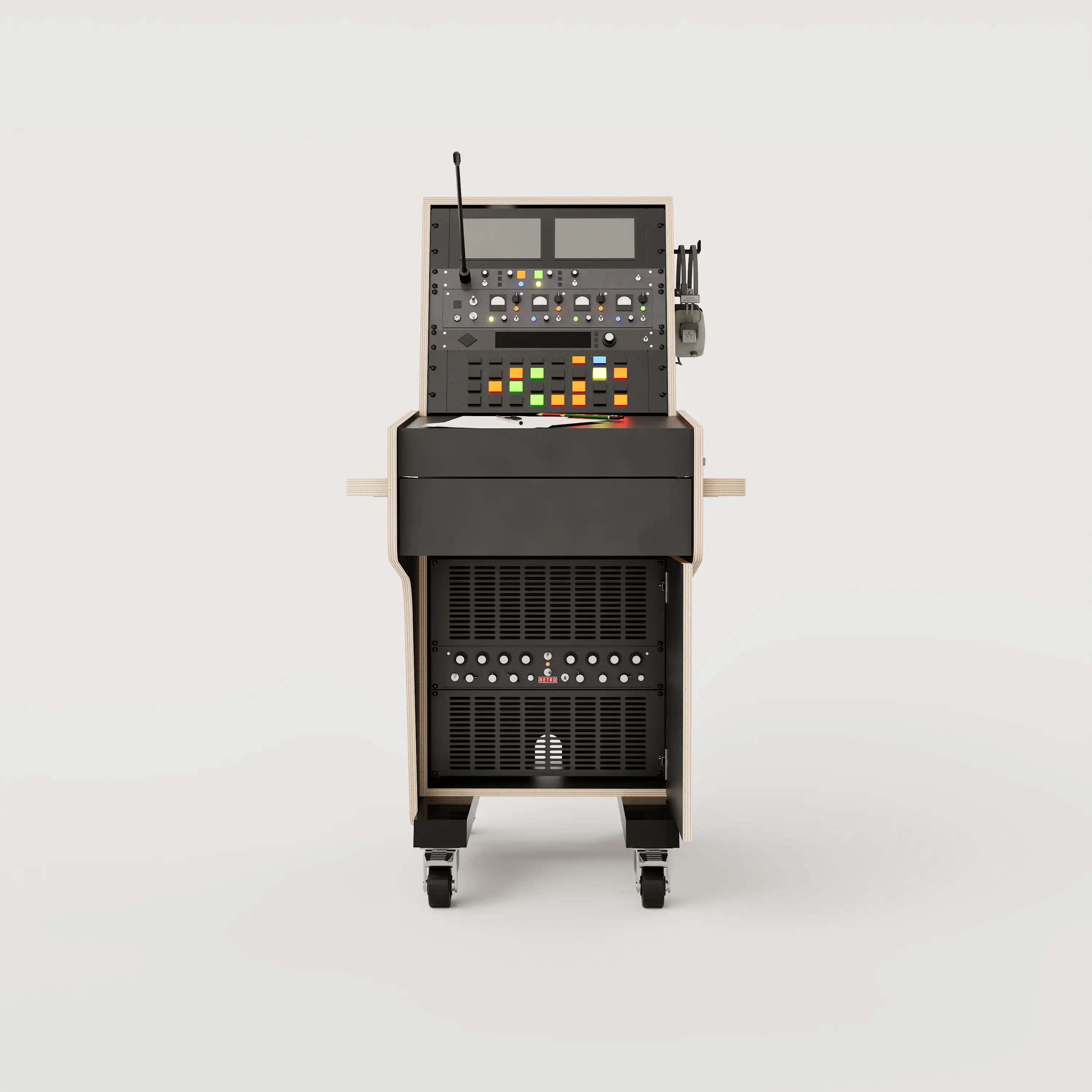

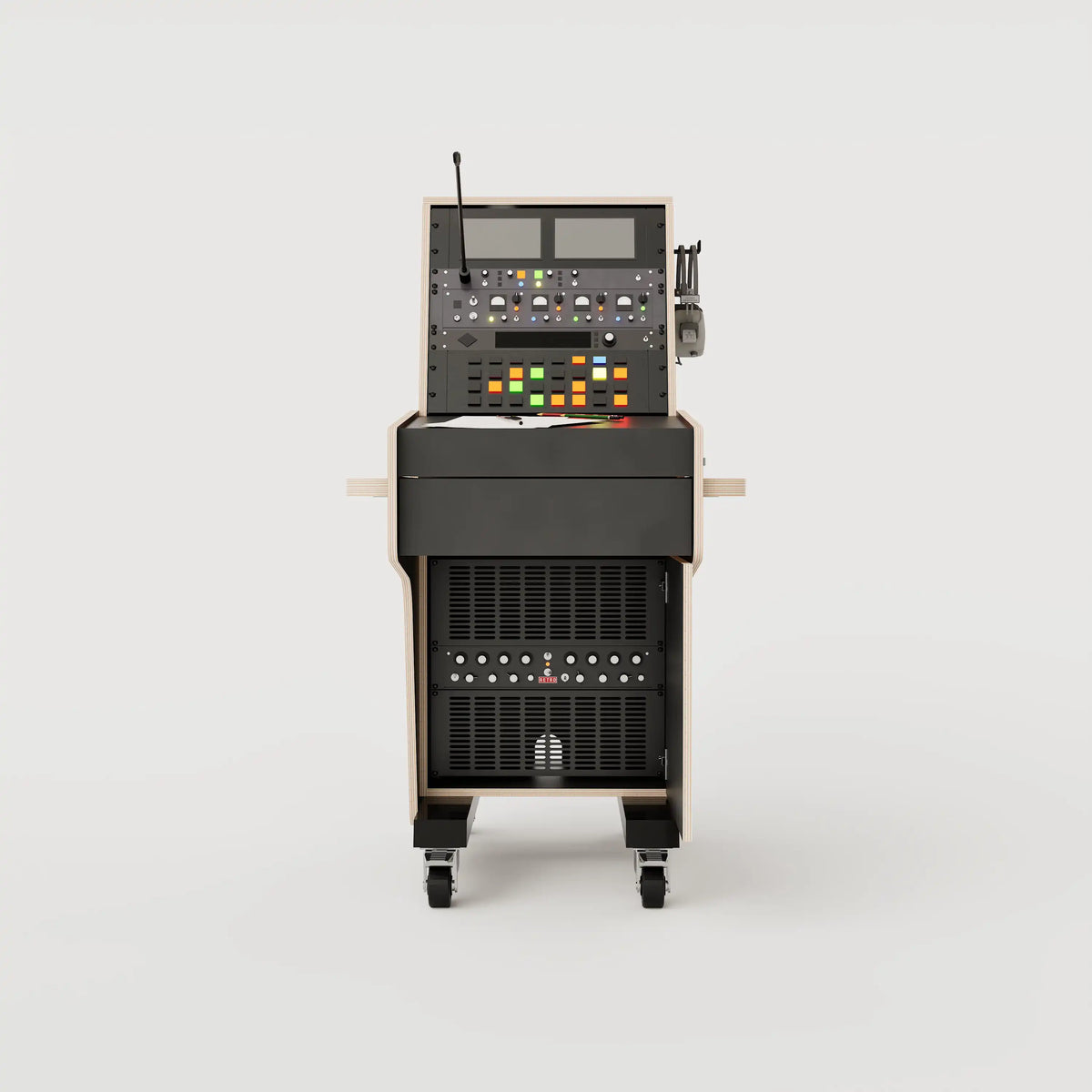

Front view of the custom Stage Management Console model 3A with 10 rack units above the worktop, showing open single door cabinet, a large drawer, steel legs with 80mm wheels. Black with expressed plywood edge.

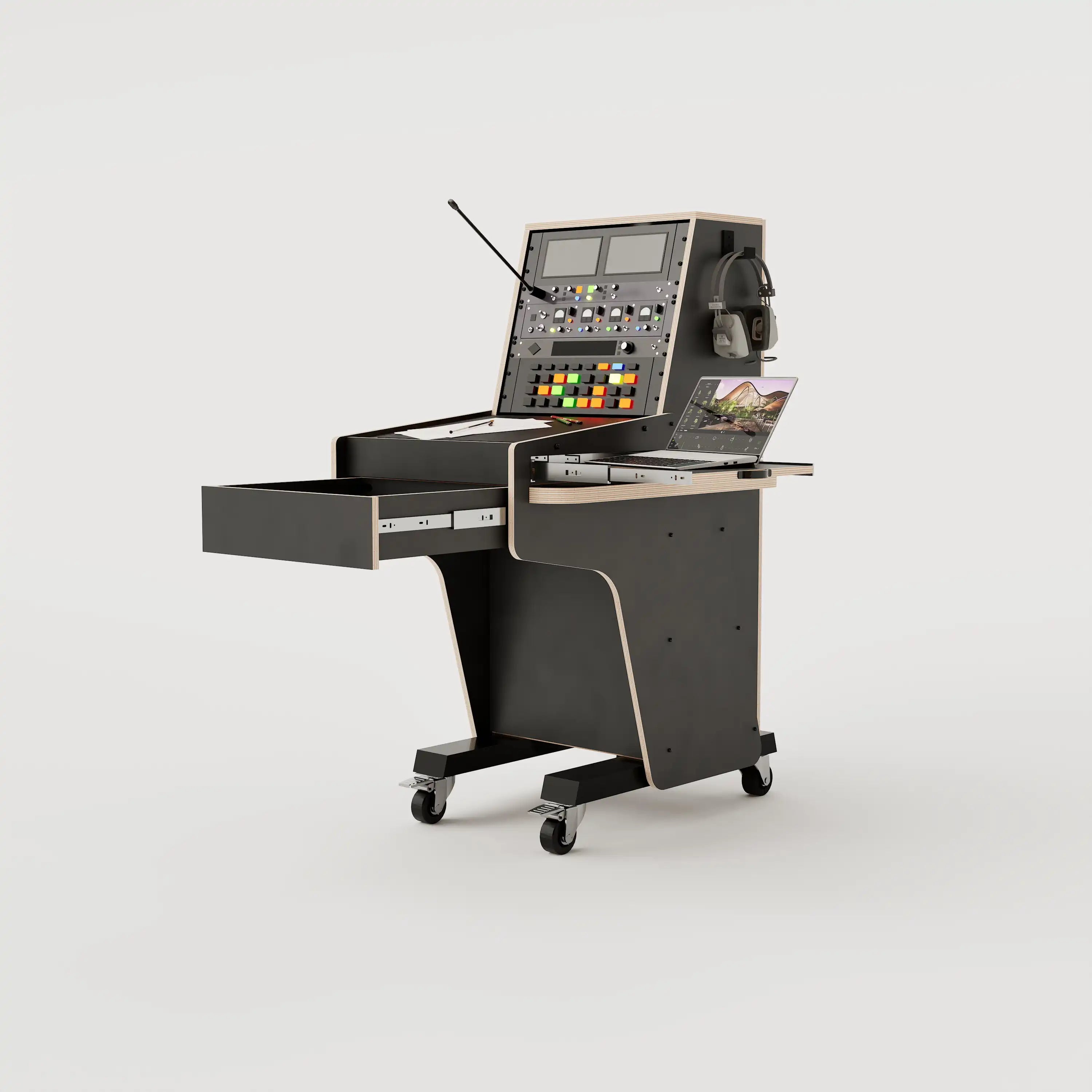

Right side view of the custom Stage Management Console model 3A, showing the drawer and tray in the open position. 10 rack units above the worktop, single door cabinet, a large drawer, steel legs with 80mm wheels. Black with expressed plywood edge.
Right view of the custom Stage Management Console model 3A with 10 rack units above the worktop, single door cabinet, a large drawer, steel legs with 80mm wheels. Black with expressed plywood edge.
Front view of the custom Stage Management Console model 3A with 10 rack units above the worktop, showing open single door cabinet, a large drawer, steel legs with 80mm wheels. Black with expressed plywood edge.
Right side view of the custom Stage Management Console model 3A, showing the drawer and tray in the open position. 10 rack units above the worktop, single door cabinet, a large drawer, steel legs with 80mm wheels. Black with expressed plywood edge.

Fusion Studio Works

Stage Management Console 3A, Expressed Edge, Black

$3,760.00
Shipping calculated at checkout.
Description

The Stage Management Console 3A is compact unit for use where backstage real estate is at a premium.

SMC 3A houses 10 rack units above the worktop and the worktop is large enough for A3 size running sheets. You'll find a large drawer under the worktop and a single door cabinet in the lower body which can house another 10 rack units of 19" equipment if required. Lower cabinet rack units can be mounted in either the front or the rear of the unit.


Stage Management Console 3A has a retractable tray which pulls out from the right side of the unit. The tray extends the desktop for your overflow gear such as laptop computers, headsets and coffee mugs.



Each application of a Stage Management Console is different. Fusion Studio Works will customize your unit with machined cut-outs to suit your specified audio visual equipment. Cut-outs can be located anywhere in the body of the unit.


Cut-outs may include provisions for audio visual signal connector plates, power and data distribution devices, timing equipment, cabling hooks, ratchet strap through ports and extra handling holes.



Product Specifications

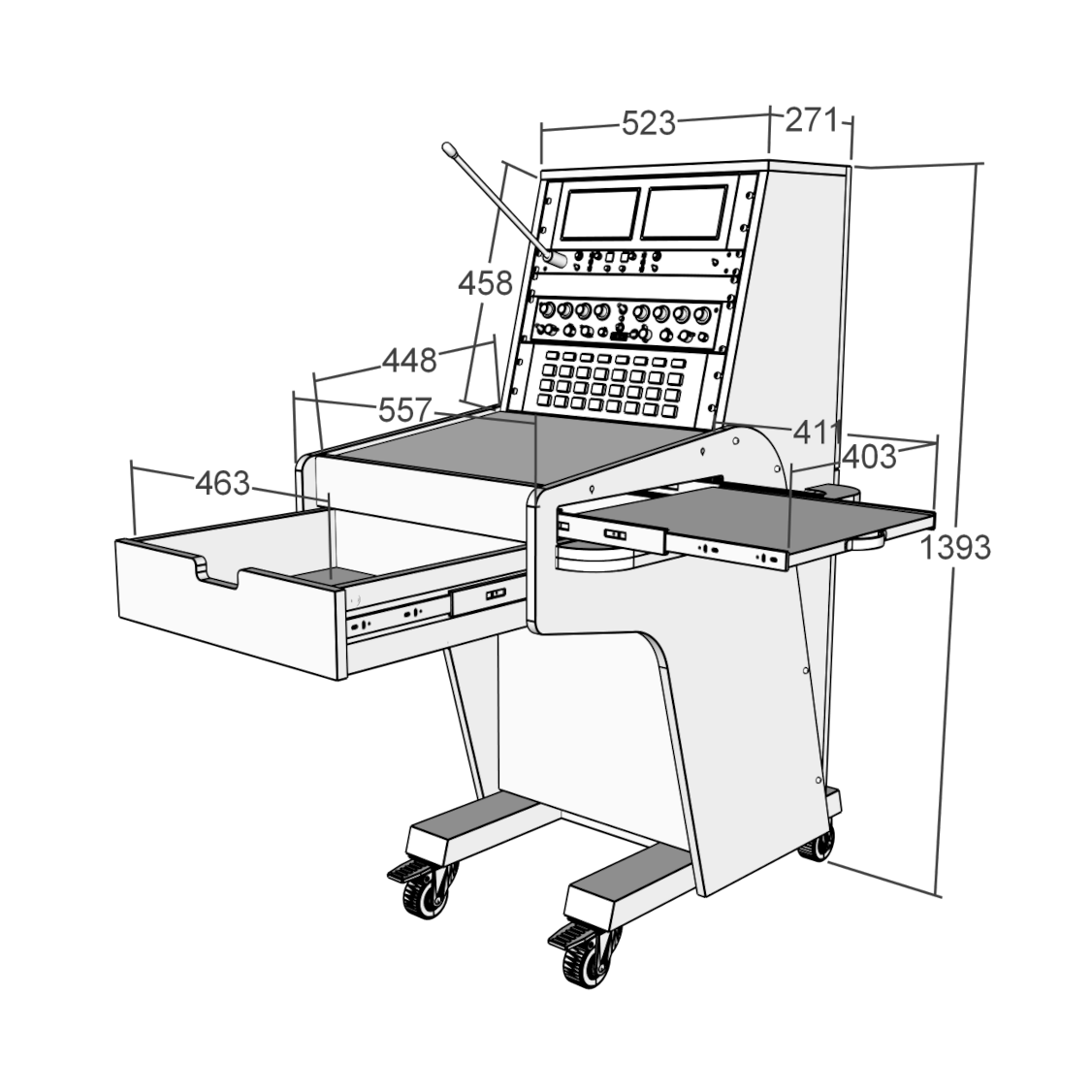

Technical Drawing

SMC_3A_Technical_Drawing_A4.pdf

A DWG CAD file can be supplied on request.

Large, angled desktop

Width: 523mm.
Depth: 448mm.


Drawer
Under desktop (lockable option).
Internal dimensions:
Width: 463mm.
Depth: 400mm.
Height: 104mm.


Upper Rack Area

10 Rack Units
Depth range:
250-300mm (top - bottom)


Retractable shelf

Specified either right or left side.
Width: 400mm;
Depth: 403mm.

Lower cabinet

Provides optional 10 rack units or an adjustable shelf.
Door with lockable option.

Internal dimensions:
Width: 488mm.
Depth: 373mm.
Height: 480mm.

Bump/handling rail

left and right sides.


Casters

Front: x2 heavy duty premium 80mm braked.
Rear: x2 heavy duty premium 80mm non-braked.


Materials
Extremely sturdy construction, made from steel and film faced, finger print resistant plywood.

Shipping & Collections


Local Delivery

If you're in the greater Melbourne area we can deliver your order partially or fully assembled and install it into your workspace.

Delivery only:
For desks; delivered as a whole unit with legs removed. Customer required to fit legs.
All other products; delivered whole.

Delivery and Installation:
Full white glove service. We will install your unit into your workspace.


Local Pick-up

Collection of your order is available from our Coburg North Workshop.

9 Warner Street
Coburg North 3058
Victoria
Australia


Contract Furniture Removalist

Available to all Australian capital cities (+60km radius) and most regional centres.

Our partner furniture removalists freight our products around Australia. They handle your items sensitively ensuring your consignment arrives undamaged and on time.


Transit Time

Australian Capital Cities
1-5 business days

Manufacturing Lead Time


14-28 business days (standard Operations)
Please contact us for a present lead time.

Fusion Studio Works operates under a ‘made to order’ model which means that we do not keep pre-manufactured stock in a warehouse ready to ship.
