Fusion Studio Works

Stage Management Console 31A, Expressed Edge, Black

$4,990.00
Shipping calculated at checkout.
Description


The Stage Management Console 31A is large enough to meet the requirements of the most demanding shows.


SMC 31A houses 20 rack units above the worktop and the worktop itself is large enough for a set of A2 and A3 size running sheets side by side. You'll find a two large drawers under the worktop and a triple door cabinet in the lower body which can house another 20 rack units of 19" equipment if required. Lower cabinet rack units can be mounted in either the front or the rear of the unit.


Stage Management Console 31A has two retractable trays which pull out from both the left and right sides of the unit. The trays extend the desktop for your overflow gear such as laptop computers, headsets and coffee mugs.


Each application of a Stage Management Console is different. Fusion Studio Works will customize your unit with machined cut-outs to suit your specified audio visual equipment. Cut-outs can be located anywhere in the body of the unit.


Cut-outs
may include provisions for audio visual signal connector plates, power and data distribution devices, timing equipment, cabling hooks, ratchet strap through ports and extra handling holes.


Extremely sturdy construction, made from steel and film faced, finger print resistant plywood.

Product Specifications

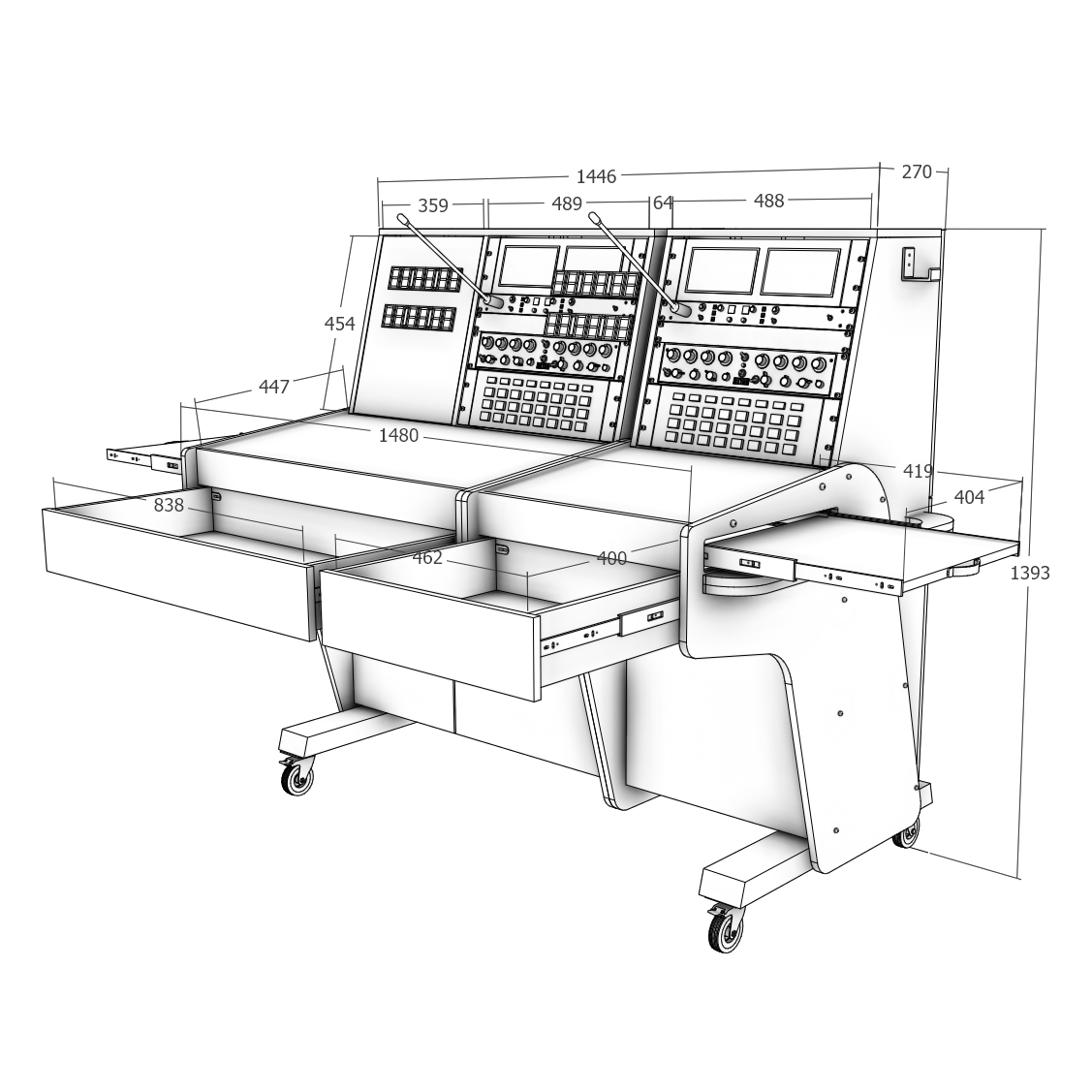

Technical Drawing

SMC_31A_Technical_Drawing_A4.pdf


Angled Desktop


Dimensions:
1448 x 449mm.


Left Side Drawer

Locking option.
Internal dimensions:
838 x 400 x 104mm.


Right Side Drawer


Internal dimensions:
462 x 400 x 104mm.


20 rack units


To upper rack area.


Timber Audio Visual Plate

Positioned adjacent to the rack may be machined to provide cut-outs for specific A/V equipment.
Dimensions:
367 x 458mm.


x2 Retractable Shelves

(Left and right sides)
Dimensions:
400 x 400mm.


Lower cabinets

Provides optional 20 rack units or two adjustable shelves
Locking option.

Right side internal dimensions:
489 x 480mm.

Left side cabinet internal dimensions:
864 x 480mm.


Upper most panel enclosing the racks


1446 x 254mm.


Bump/handling rails


To left and right sides.
Removable.


x4 heavy duty premium 80mm casters

Front: Braked.
Rear: Non-Braked.

Shipping & Collections


Local Delivery


If you're in the greater Melbourne area we can deliver your order partially or fully assembled and install it into your workspace.

Delivery only:
For desks; delivered as a whole unit with legs removed. Customer required to fit legs.
All other products; delivered whole.

Delivery and Installation:
Full white glove service. We will install your unit into your workspace.


Local Pick-up

Collection of your order is available from our Coburg North Workshop.

9 Warner Street
Coburg North 3058
Victoria
Australia


Contract Furniture Removalist

Available to all Australian capital cities (+60km radius) and most regional centres.

Our partner furniture removalists freight our products around Australia. They handle your items sensitively ensuring your consignment arrives undamaged and on time.


Transit Time


Australian Capital Cities
1-5 business days

Manufacturing Lead Time


14-28 business days (standard Operations)
Please contact us for a present lead time.

Fusion Studio Works operates under a ‘made to order’ model which means that we do not keep pre-manufactured stock in a warehouse ready to ship.

Detailed Information

For detailed information on materials, care, assembly and international shipping please click through to our General info & FAQ section.

Right view of the custom Stage Management Console model 31A with 20 rack units above the worktop, triple door cabinet, 2x Large drawers, steel legs with 80mm wheels. Black with expressed plywood edge.
